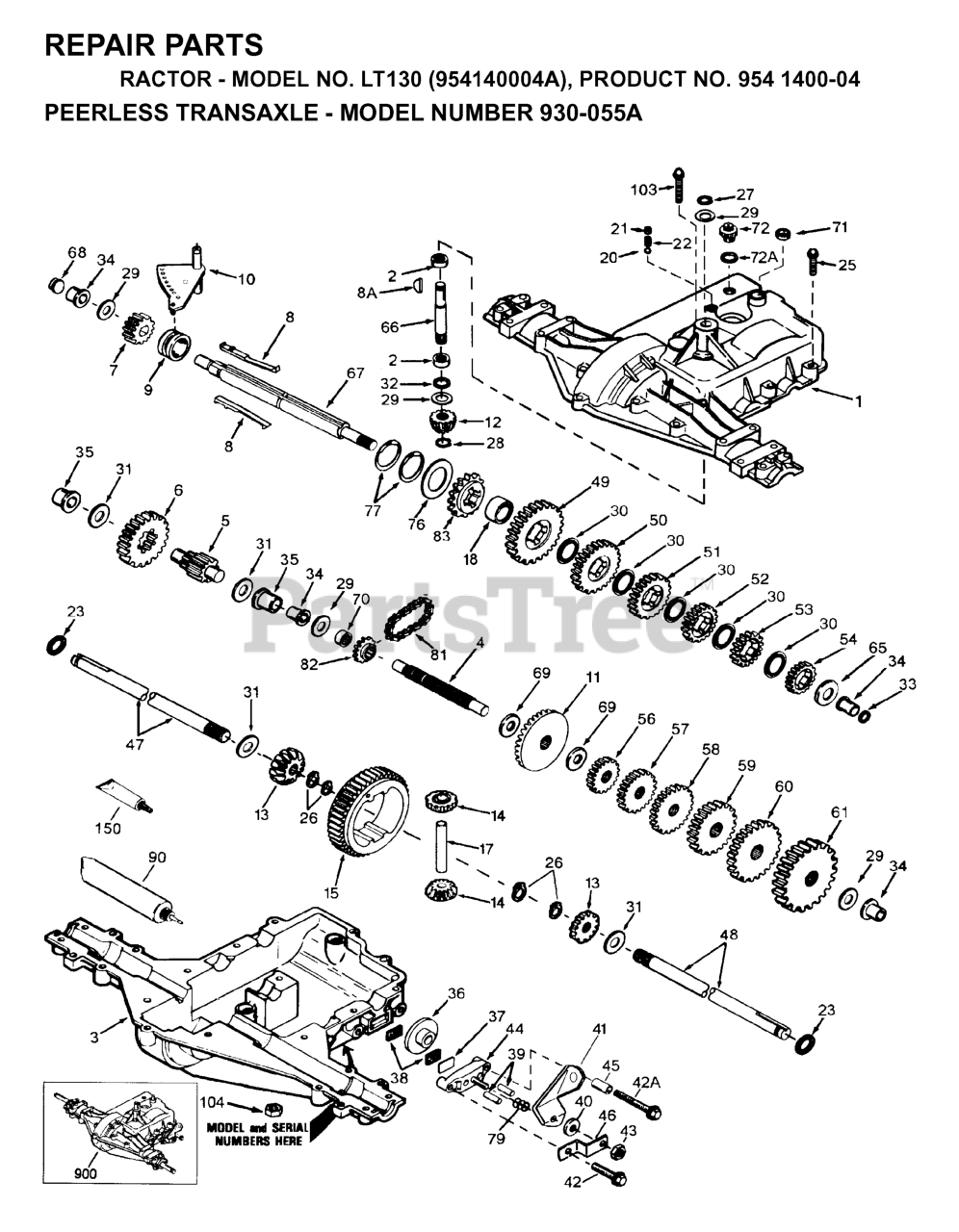

LT 130 (954140004-A) - Husqvarna Lawn Tractor (1997-01) TRANSMISSION Parts Diagram

Lawn Tractor

TRANSMISSION Parts Diagram

  • Title

81

Husqvarna 786081

Chain, Roller (Number 41 Chain, 24 Links)

$

$

Not available

41

Husqvarna 790079

Lever, Brake

$

$

Not available

31

Husqvarna 780001

Washer (.056 wide)

$

$

Not available

30

Husqvarna 780108

Washer, Thrust

$

$

Not available

69

Husqvarna 780051

Thrust Washer (.762 ID)

$

$

Not available

22

Husqvarna 792079

Spring

$

$

Not available

18

Husqvarna 786102

Spacer, Neutral

$

$

Not available

42A

Husqvarna 792085A

Screw, 1 /4-20 x 2-1 /4"

$

$

Not available

29

Husqvarna 780072

Washer, Thrust

$

$

Not available

25

Husqvarna 792073

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4

$

$

Not available

49

Husqvarna 778215

Gear, Spur, 37 Teeth, Steel (1 st)

$

$

Not available

37

Husqvarna 790007

Plate, Brake pad

$

$

Not available

21

Husqvarna 792078

Set Screw 3/18-16 x 3/8"

$

$

Not available

38

Husqvarna 799021

Brake Pad (pkg of 2)

$

$

Not available

45

Husqvarna 786066

Spacer (1/2" OD)

$

$

Not available

28

Husqvarna 788040

Ring, Retaining

$

$

Not available

23

Husqvarna 788061

Ring, Seal

$

$

Not available

4

Husqvarna 776260

Shaft, Counter

$

$

Not available

27

Husqvarna 792035

Retaining Ring

$

$

Not available

43

Husqvarna 792075

Lock Nut 5/16-24

$

$

Not available

2

Husqvarna 780086

Bearing, Needle

$

$

Not available

26

Husqvarna 792125

Ring, Retainer (4 Required, Package of 2)

$

$

Not available

20

Husqvarna 792077

Ball, Steel 5/16" diameter

$

$

Not available

36

Husqvarna 790003

Disk, Brake

$

$

Not available

46

Husqvarna 786086

Bracket, Brake lever

$

$

Not available

66

Husqvarna 776135

Input Shaft (3.687" long)

$

$

Not available

15

Husqvarna 778260

Gear, Ring

$

$

Not available

77

Husqvarna 788078A

Ring, Retaining, Inverted (Package of 2)

$

$

Not available

44

Husqvarna 790025

Holder, Brake pad

$

$

Not available

150

Husqvarna 510334

Gasket Eliminator (Loctite No. 515)

$

$

Not available

39

Husqvarna 786026

Pin, Dowel

$

$

Not available

48

Husqvarna 774691

Axle (16-1/2" long)

$

$

Not available

8A

Husqvarna 792047

Woodruff Key No. 9

$

$

Not available

61

Husqvarna 778163

Gear, Spur, 31 Teeth (5 th)

$

$

Not available

71

Husqvarna 788069

Seal, Square Cut

$

$

Not available

79

Husqvarna 792144

Piston Assembly

$

$

Not available

47

Husqvarna 774690

Axle (11-15/16" long)

$

$

Not available

54

Husqvarna 778273

Gear, Spur, 19 Teeth, Steel (4 th)

$

$

Not available

40

Husqvarna 792076A

Washer, Flat

$

$

Not available

76

Husqvarna 780090

Washer, Thrust

$

$

Not available

33

Husqvarna 788095

Seal, Square Cut

$

$

Not available

11

Husqvarna 778229

Bevel Gear (42 teeth-steel)

$

$

Not available

9

Husqvarna 784352

Collar, Shifter

$

$

Not available

56

Husqvarna 778230

Gear, Spur, 12 Teeth (1 st)

$

$

Not available
