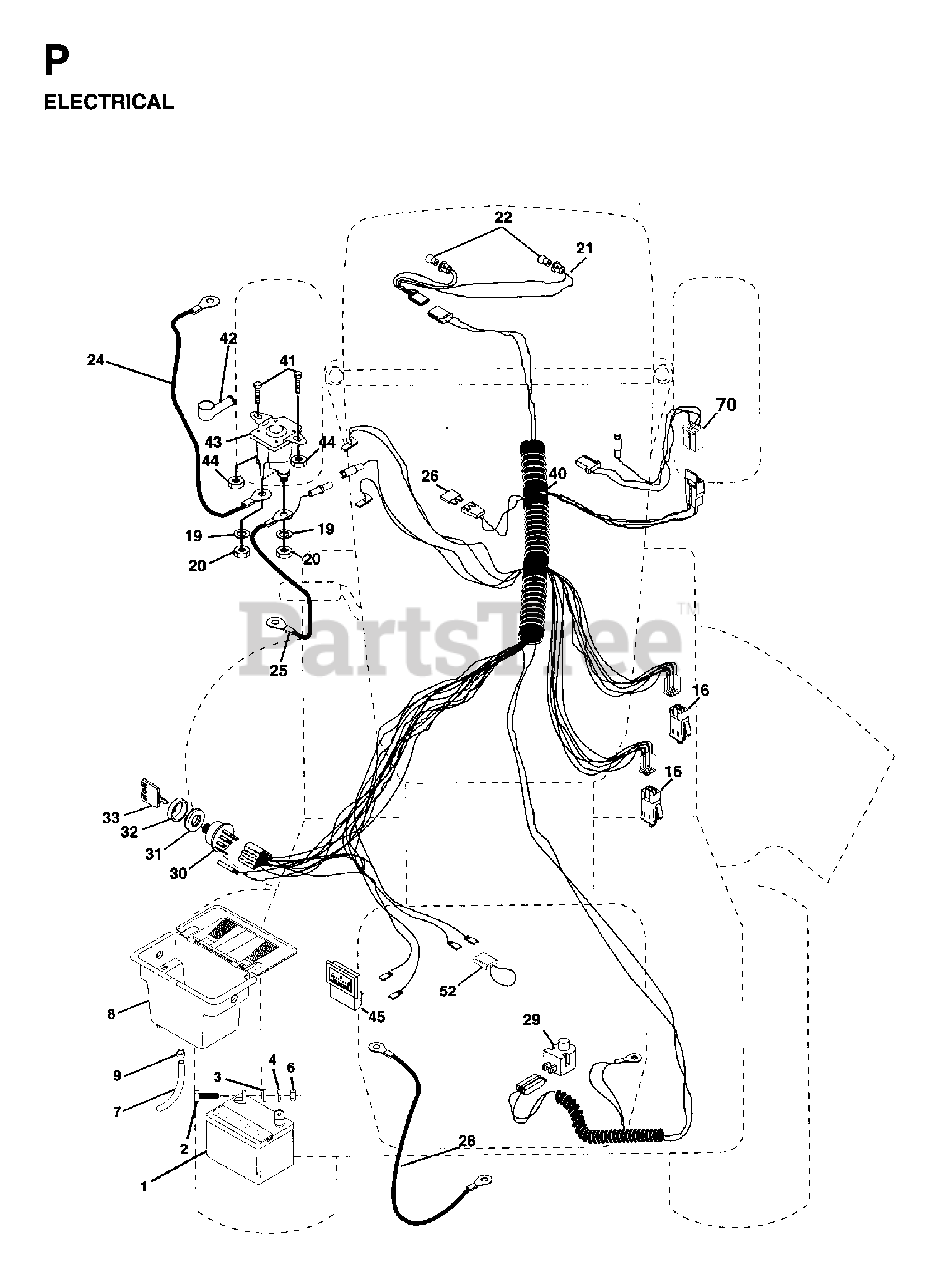

LT 13 (954130001) - Jonsered Lawn Tractor (1997-04) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 532123899

BATTERY.DRY.30.AMP

$194.99

$

In Stock, only 1 left!

0

2

$7.49

$

In Stock, only 1 left!

0

3

Jonsered 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

4

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

6

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Jonsered 532109238

TUBE BATTERY DRAIN

$

$

Not available

8

Jonsered 532156417

CASE BATTERY MECH HINGE
(Superseded to 532404349)

$

$

Not available

9

Jonsered 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

19

Jonsered 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Jonsered 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 532147430

HARNESS ASM HDLIG
(Superseded to 147430)

$

$

Not available

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532146147

CABLE BATTERY

$34.99

$

Usually ships in 3-10 days

0

26

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Jonsered 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 1 left!

0

31

Jonsered 532124211

NUT IGNITION

$5.99

$

In Stock, only 1 left!

0

32

Jonsered 532141226

COVER SWITCH KEY

$5.99

$

Usually ships in 3-10 days

0

$

$

Not available

40

Jonsered 532156442

HARNESS IGN

$109.99

$

Usually ships in 3-10 days

0

41

Jonsered 871110408

No Description Available
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

$

$

Not available

45

Jonsered 532121433

No Description Available
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

70

Jonsered 532140413

HARNESS, ENGINE

$

$

Not available
