LT 13 (954130001) - Jonsered Lawn Tractor (1997-04) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

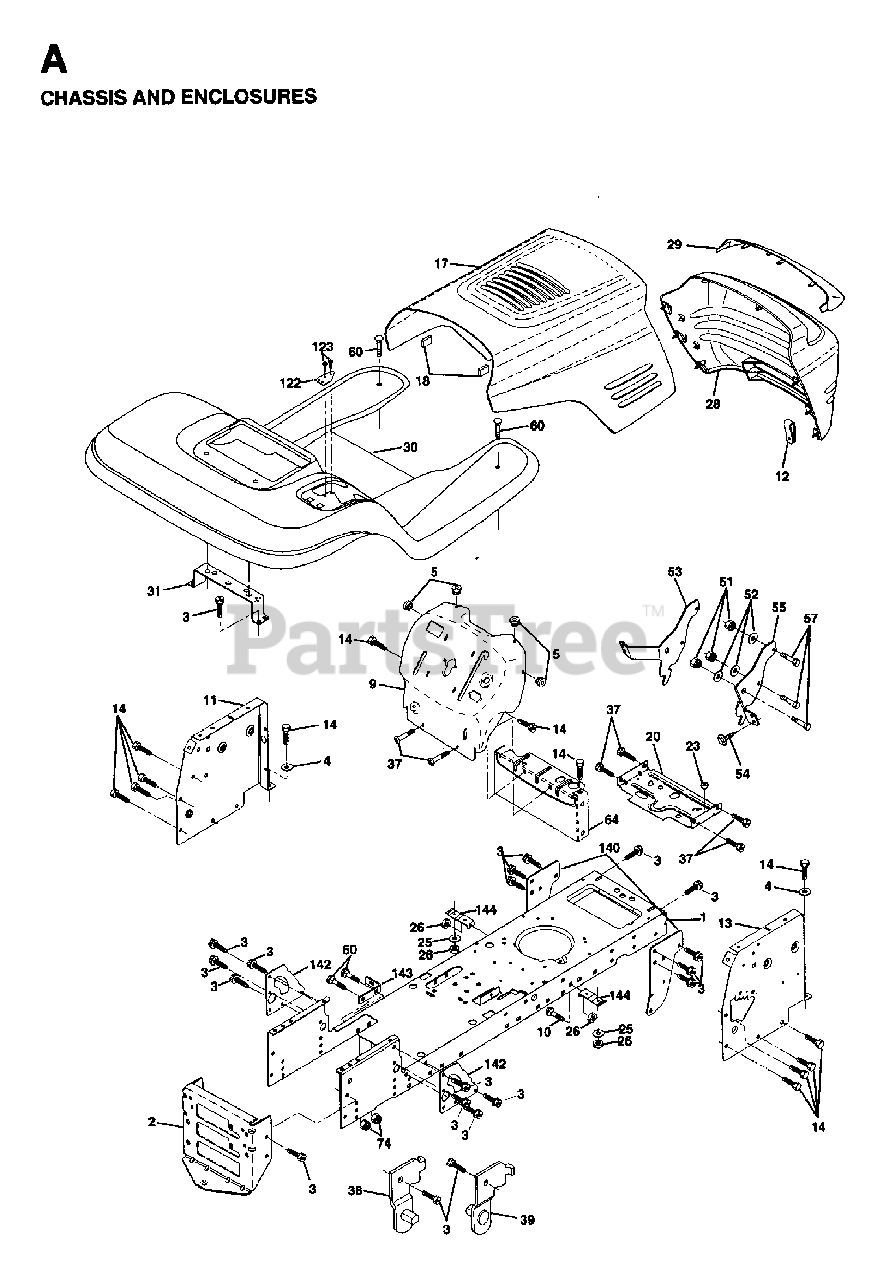

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

Jonsered 532153871

CHASSIS WELDMENT
(Superseded to 532160525)

$

$

Not available

2

Jonsered 532140356

STRETCH DRAWBAR
(Superseded to 532145009)

$

$

Not available

3

Jonsered 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

$

$

Not available

5

Jonsered 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

9

Jonsered 532158085

No Description Available

$

$

Not available

10

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532155927

PANEL DASH LH
(Superseded to 532174996)

$

$

Not available

$3.49

$

In Stock, only 1 left!

0

13

Jonsered 532157262

PANEL DASH RH
(Superseded to 532169117)

$

$

Not available

14

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532150760

No Description Available

$

$

Not available

18

Jonsered 532126938

BUMPER HOOD T

$

$

Not available

20

Jonsered 532156437

PLATE MTG
(Superseded to 532180679)

$11.99

$

Usually ships in 3-10 days

0

23

Jonsered 532124028

GROMMET T

$5.99

$

In Stock, only 3 left!

0

25

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532150671

No Description Available

$

$

Not available

29

Jonsered 532145199

No Description Available

$

$

Not available

30

Jonsered 532156793

No Description Available

$

$

Not available

31

$17.99

$

Usually ships in 3-10 days

0

37

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532139886

BRACKET LH PIVOT

$8.99

$

Usually ships in 3-10 days

0

39

Jonsered 532139887

BRACKET RH PIVOT

$

$

Not available

51

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

$6.49

$

Usually ships in 3-10 days

0

53

Jonsered 532145201

No Description Available

$

$

Not available

54

Jonsered 817030814

No Description Available
(Superseded to 532161464)

$

$

Not available

55

$

$

Not available

57

Jonsered 874780412

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

64

Jonsered 532154798

DASH LOWER
(Superseded to 154798)

$15.99

$

Usually ships in 3-10 days

0

74

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0

122

Jonsered 532157301

BRACKET SHIFT STLT

$

$

Not available

123

$7.49

$

In Stock, only 2 left!

0

140

Jonsered 532150556

BRACKET CHASSIS FRONT
(Superseded to 532158418)

$

$

Not available

142

Jonsered 532156095

PLATE REINFORCEMENT
(Superseded to 532165867)

$9.49

$

Usually ships in 3-10 days

0

143

Jonsered 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Jonsered 532154207

BRACKET FOOTREST
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

146

$6.49

$

Usually ships in 3-10 days

0
