LT-13 (13AA672F190) - White Outdoor 38" Lawn Tractor (1999) Seat, Fuel Tank, And Frame Assembly Parts Diagram

38" Lawn Tractor

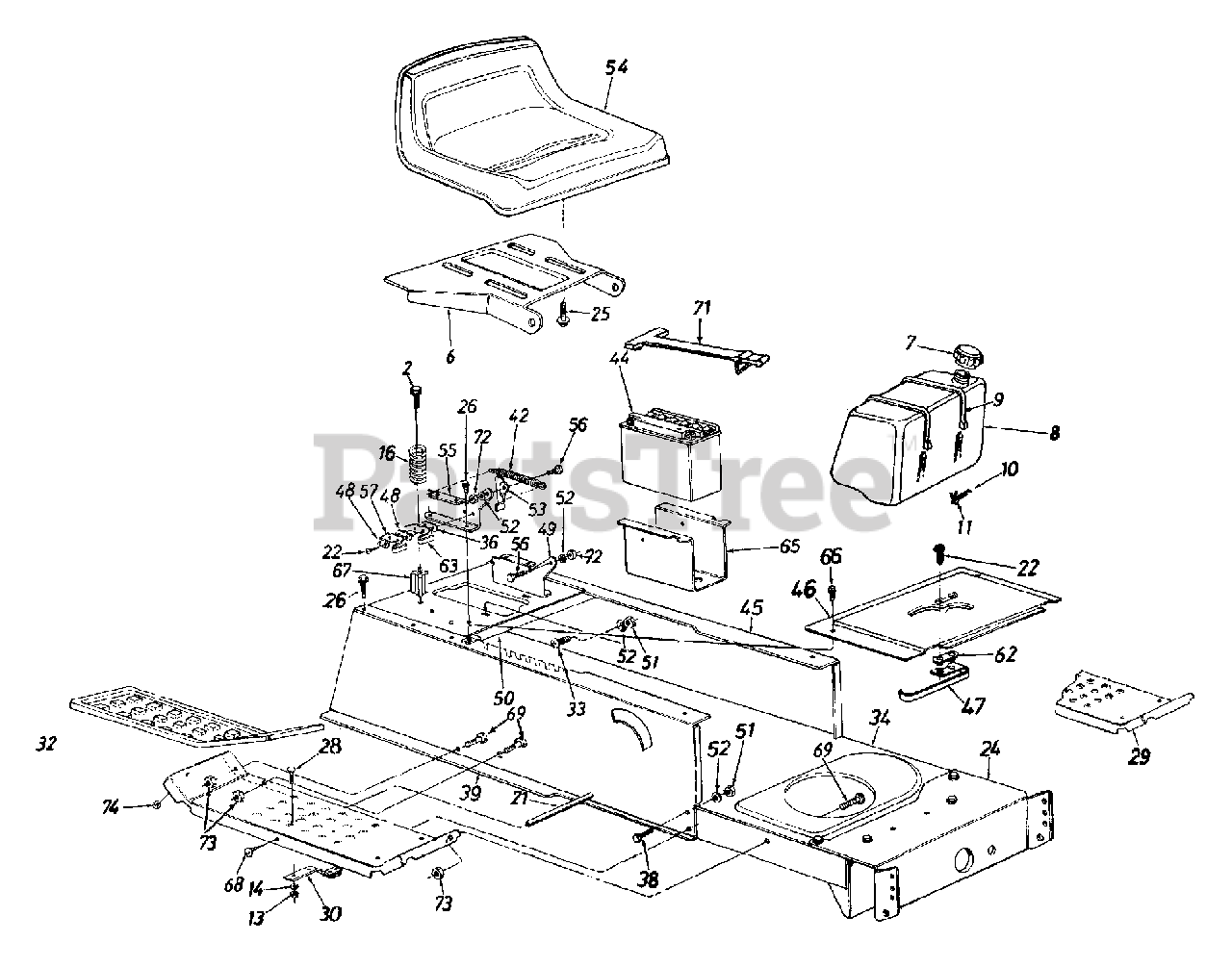

Seat, Fuel Tank, And Frame Assembly Parts Diagram

  • Title

2

White Outdoor 710-1208

Hex Tap Scr. 5/16-18 x 3.25"

$6.99

$

In Stock, only 2 left!

0

6

White Outdoor 783-0039A

Seat Pivot Bracket

Variations

White Outdoor 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

7

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

8

White Outdoor 751-0555

Fuel Tank (1.5 Gal)
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

9

White Outdoor 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

White Outdoor 751-0535-15

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

11

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

16

White Outdoor 732-0735

Compression Spring
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

21

White Outdoor 738-0526

Running Board Rod

$

$

Not available

22

White Outdoor 710-0227

Hex AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

?23

White Outdoor 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

24

White Outdoor 783-0041A

Front Pivot Brkt.
(Superseded to 783-0041C)

Variations

White Outdoor 783-0041A-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0041A-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0041A-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0041A-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0041A-0648

BRACKET-PIVOT BAR - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0041A-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0870

Hex Tap Scr. 3/8-16 x .62" Lg.

$6.49

$

In Stock, only 1 left!

0

26

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75"

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 17770C

Running Board (R.H. & L.H.)
(Superseded to 17770H)

Variations

White Outdoor 17770C-0483

BOARD-RUNNING - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17770C-0499

BOARD-RUNNING - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17770C-0629

BOARD-RUNNING - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17770C-0637

BOARD-RUNNING - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17770C-0660

BOARD-RUNNING - TEAL (0660)

$

$

Not available

White Outdoor 17770C-0662

BOARD-RUNNING - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17770C-0665

BOARD-RUNNING - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17770C-0667

BOARD-RUNNING - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17770C-0687

BOARD-RUNNING - PINE GREEN (0687)

$

$

Not available

White Outdoor 17770C-0692

BOARD-RUNNING - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 17770C-0638

BOARD-RUNNING - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17770C-0648

BOARD-RUNNING - TECH GRAY (0648)

$

$

Not available

White Outdoor 17770C-0650

BOARD-RUNNING - RED METALLIC (0650)

$

$

Not available

White Outdoor 17770C-0691

BOARD-RUNNING - BLACK JACK (0691)

$

$

Not available

$

$

30

White Outdoor 761-0168B

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

32

White Outdoor 731-0909

Rubber Foot Pad - L.H.
(Superseded to 735-04009)

$

$

Not available

White Outdoor 731-0910

Rubber Foot Pad - R.H.
(Superseded to 735-0689A)

$

$

Not available

33

UNKNOWN

$

$

Not available

34

White Outdoor 783-0310C

Lower Frame
(Superseded to 783-0310F-0637)

Variations

White Outdoor 783-0310C-0637

FRAME-LOWER 600 - POWDER BLACK (0637)

$159.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310C-0665

FRAME-LOWER 600 - YARDMAN GREEN (0665)

$148.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310C-0483

FRAME-LOWER 600 - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0310C-0638

FRAME-LOWER 600 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0310C-0648

FRAME-LOWER 600 - TECH GRAY (0648)

$

$

Not available

$159.99

$

Usually ships in 3-6 days

0

36

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

?37

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .625" O.D.

$6.99

$

In Stock, only 2 left!

0

38

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 783-0042A

Upper Frame - R.H.
(Superseded to 783-0042D)

Variations

White Outdoor 783-0042A-0480

FRAME-UPPER RH SID - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0042A-0483

FRAME-UPPER RH SID - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0042A-0629

FRAME-UPPER RH SID - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0042A-0637

FRAME-UPPER RH SID - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0042A-0638

FRAME-UPPER RH SID - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0042A-0648

FRAME-UPPER RH SID - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0042A-0650

FRAME-UPPER RH SID - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0042A-0663

FRAME-UPPER RH SID - CAYMEN GREEN (0663)

$

$

Not available

White Outdoor 783-0042A-0665

FRAME-UPPER RH SID - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0042A-0667

FRAME-UPPER RH SID - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0042A-0686

FRAME-UPPER RH SID - SIMPLICITY ORANGE (0686)

$

$

Not available

White Outdoor 783-0042A-0687

FRAME-UPPER RH SID - PINE GREEN (0687)

$

$

Not available

$

$

42

White Outdoor 732-0581B

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

44

White Outdoor 725-1750

12-V Battery
(Superseded to 925-1707D)

$

$

Not available

45

White Outdoor 783-0043

Upper Frame - L.H.
(Superseded to 783-0043B)

Variations

White Outdoor 783-0043-0648

FRAME-UPPER LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0043-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0043-0499

FRAME-UPPER LH - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0043-0606

FRAME-UPPER LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0043-0629

FRAME-UPPER LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0043-0637

FRAME-UPPER LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0043-0638

FRAME-UPPER LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0043-0650

FRAME-UPPER LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0043-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0043-0667

FRAME-UPPER LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0043-0677

FRAME-UPPER LH - GRASS GREEN (0677)

$

$

Not available

White Outdoor 783-0043-0689

No Longer Available FRAME-UPPER LH - POLO GREEN (0689)

$

$

Not available

$

$

46

Shift Cover

Note: See "Shift Cover" illustration and parts list.

$

$

Not available

47

White Outdoor 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

48

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

49

White Outdoor 17951

Seat Pivot Brkt. Support - L.H.
(Superseded to 17951A-0637)

Variations

White Outdoor 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

50

White Outdoor 783-0355A

Hitch Plate
(Superseded to 783-0355D)

Variations

White Outdoor 783-0355A-0483

PLATE-HITCH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0355A-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0355A-0638

PLATE-HITCH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0355A-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0355A-0650

PLATE-HITCH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0355A-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

54

White Outdoor 757-0371A

Seat - Grey
(Superseded to 957-0371A)

$

$

Not available

55

White Outdoor 17950

Seat Pivot Brkt. Support - R.H.
(Superseded to 17950A-0637)

Variations

White Outdoor 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

56

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 725-1303

Spring Switch (Seat - Outer)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

?59

White Outdoor 710-0650

Hex TT-Tap Scr. 5/16-18 x 7/8"

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 726-0320

Insulatop Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

63

White Outdoor 725-1439

Safety Switch (Seat - Inner)

$8.49

$

In Stock, Qty 10

0

65

White Outdoor 783-0345

Battery Tray
(Superseded to 783-0345-0637)

Variations

White Outdoor 783-0345-0637

Battery Tray - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

66

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

67

White Outdoor 748-0347

Spring Spacer
(Superseded to 748-0347A)

$

$

Not available

68

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75"

$4.99

$

In Stock, only 2 left!

0

69

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

?70

White Outdoor 731-0405

Snap Bushing

$

$

Not available

71

White Outdoor 723-3064

Battery Retainer Strap

$29.99

$

In Stock, only 4 left!

0

72

White Outdoor 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

74

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0
