LT-13 (13AA672F190) - White Outdoor 38" Lawn Tractor (1999) Differential Assembly Parts Diagram

38" Lawn Tractor

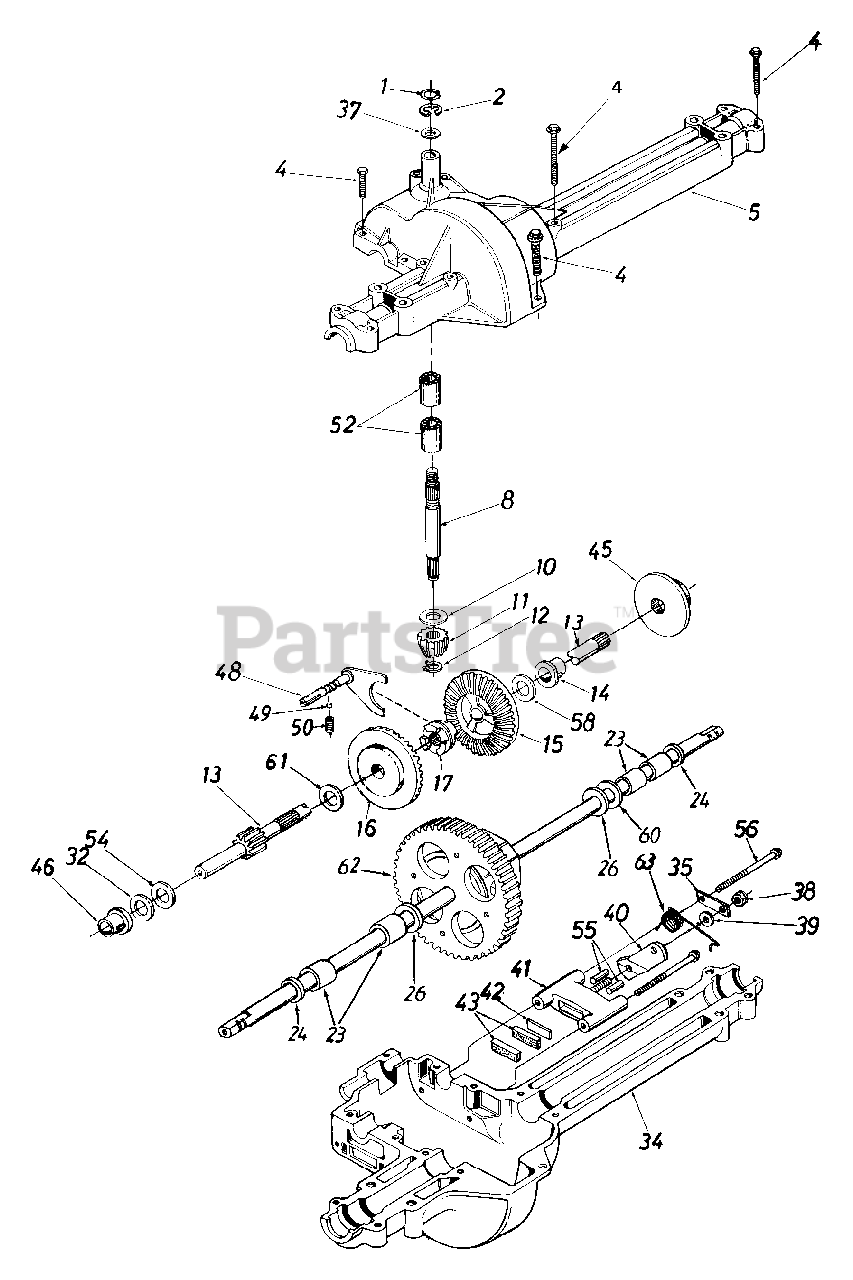

Differential Assembly Parts Diagram

  • Title

1

White Outdoor 732-0614

Wire Ring

$6.49

$

In Stock, only 2 left!

0

2

White Outdoor 716-0231

"E"-Ring

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-1325

Hex Tap Scr. 1/4-20 x 1.625" Lg.

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 719-0367

Upper Housing

$118.99

$

Usually ships in 3-6 days

0

8

White Outdoor 711-1109

Input Shaft

$37.99

$

In Stock, only 1 left!

0

10

White Outdoor 736-0335

Thrust Washer 5/8" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 8

0

11

White Outdoor 717-1464

Pinion Input 14T

$22.99

$

In Stock, only 2 left!

0

12

White Outdoor 716-0108

Retaining Ring

$5.49

$

Usually ships in 3-6 days

0

13

White Outdoor 711-1003

Drive Shaft - R.H. Brake
(Superseded to 911-1003)

$115.99

$

Usually ships in 3-6 days

0

14

White Outdoor 741-0336

Flange Brg. 5/8" I.D. x 3/4" Lg.
(Superseded to 941-0336)

$11.99

$

In Stock, only 2 left!

0

15

White Outdoor 717-1362

Bevel Gear 42T Small I.D.
(Superseded to 917-1362)

$51.99

$

In Stock, only 1 left!

0

16

White Outdoor 717-1363

Bevel Gear 42T Large I.D.
(Superseded to 917-1363)

$51.99

$

Usually ships in 3-6 days

0

17

White Outdoor 718-0228

Clutch Collar

$25.99

$

In Stock, only 1 left!

0

?21

White Outdoor 710-0862A

Pan Head Scr. 1/4-20 x .50" Lg. w/Patch

$4.99

$

Usually ships in 3-6 days

0

23

White Outdoor 741-0340

Sleeve Bearing 3/4" I.D. x 1.0" Lg.
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

24

White Outdoor 721-0338

Oil Seal 3/4" I.D.
(Superseded to 921-0338)

$7.49

$

In Stock, Qty 20+

0

26

White Outdoor 736-0445

Fl-Wash. .760" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 11

0

32

White Outdoor 736-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.

$4.49

$

In Stock, only 2 left!

0

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D. x .030" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

White Outdoor 736-0494

Thrust Wash. 5/8" I.D. x 1" O.D. x .035" Thk.

$4.99

$

In Stock, only 4 left!

0

White Outdoor 736-0337

Fl-Wash. 5/8" I.D. x 1" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 9

0

34

White Outdoor 719-0313B

Lower Housing

$154.99

$

Usually ships in 3-6 days

0

35

White Outdoor 718-0150

Anti-Rotation Brkt.

$4.99

$

Usually ships in 3-6 days

0

37

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020" Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D. x .030" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

White Outdoor 736-0337

Fl-Wash. 5/8" I.D. x 1" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 9

0

38

White Outdoor 712-0273

Hex Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

39

White Outdoor 736-0371

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 717-0700

Actuating Arm

$14.99

$

In Stock, only 1 left!

0

41

White Outdoor 761-0198

Brake Yoke
(Superseded to 961-0198B)

$25.99

$

In Stock, only 1 left!

0

42

White Outdoor 717-0682

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

43

White Outdoor 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 1 left!

0

45

White Outdoor 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

46

White Outdoor 741-0337

Flange Bearing 5/8" I.D. x 15/16" Lg.
(Superseded to 941-0337)

$10.99

$

In Stock, Qty 6

0

48

White Outdoor 611-0011

Shift Fork Ass'y.
(Superseded to 911-0011)

$42.99

$

In Stock, only 3 left!

0

49

White Outdoor 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

52

White Outdoor 741-0335

Needle Brg. 5/8" I.D. x 1/2" Lg.
(Superseded to 941-0335)

$18.99

$

In Stock, only 3 left!

0

54

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 741-0343

Actuating Pin 5/16" Dia.

$10.99

$

In Stock, Qty 7

0

56

White Outdoor 710-1206

Hex Wash Hd. Self-Tap Scr. 1/4-20 Thd.

$7.49

$

In Stock, Qty 6

0

58

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.

$4.49

$

In Stock, only 2 left!

0

60

White Outdoor 736-0492

Washer Fl-Wash. .76" I.D. x 1.5" O.D. x .010" Thk.
(Superseded to 936-0492)

$6.99

$

Usually ships in 3-6 days

0

White Outdoor 736-0493

Fl-Wash. .76" I.D. x 1.5" O.D. x .020" Thk.
(Superseded to 936-0493)

$4.99

$

Usually ships in 3-6 days

0

White Outdoor 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0445

Fl-Wash. .76" I.D. x 1.5" O.D. x .060" Thk.

$4.49

$

In Stock, Qty 11

0

61

White Outdoor 736-0519

Thrust Washer

$5.49

$

In Stock, only 2 left!

0

62

White Outdoor 618-0162

Differential Ass'y.
(Superseded to 918-04091A)

$364.99

$

Usually ships in 3-6 days

0

63

White Outdoor 732-0742

R.H. - Brake Spring
(Superseded to 932-0742)

$4.99

$

Usually ships in 3-6 days

0

White Outdoor 737-0148

Grease - Shell (15 oz.)
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

White Outdoor 618-0163B

Single Speed Transaxle - R.H.
(Superseded to 918-0163D)

$

$

Not available
