LT 12D411B (80084) - Snapper 41" Lawn Tractor, 12hp Dash Panel, Fuel Tank, Battery (Part 2) Parts Diagram

41" Lawn Tractor, 12hp

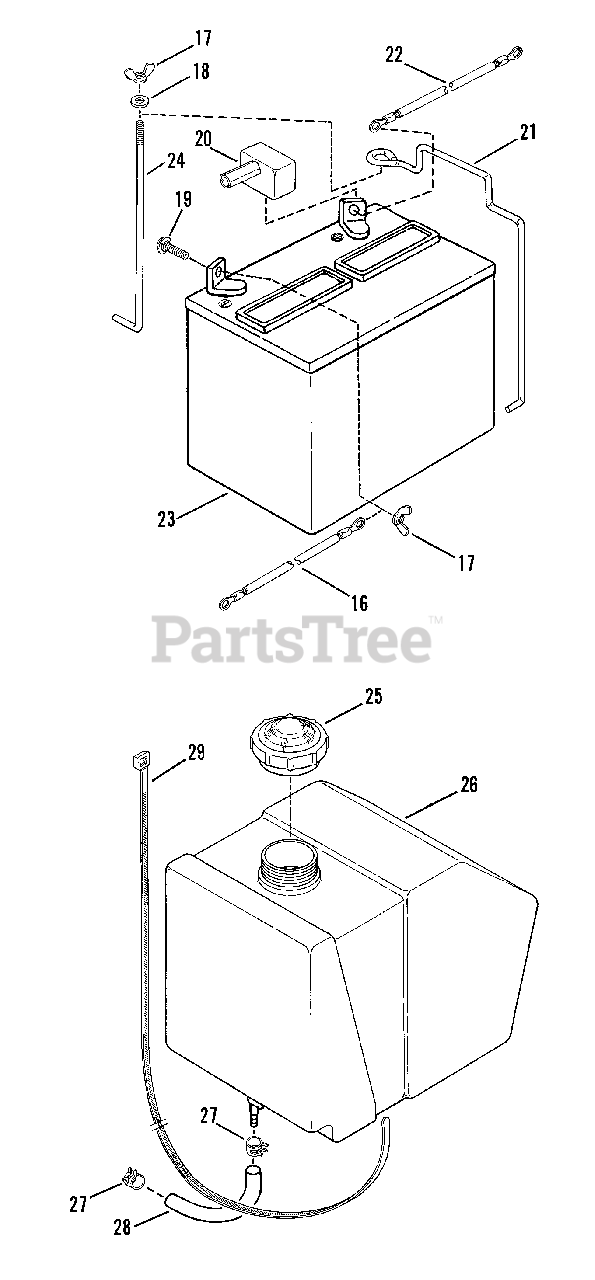

Dash Panel, Fuel Tank, Battery (Part 2) Parts Diagram

  • Title

16

Snapper 7014475

CABLE, Negative Terminal

$

$

Not available

17

Snapper 7091568

WING-NUT, 1/4-20
(Superseded to 014X79MA)

Note: Was 90311

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7091294

WASHER, 1/4 SAE
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carr.
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 3 left!

0

20

Snapper 7012444

COVER, Positive Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

21

Snapper 7014434

CLAMP, Battery
(Superseded to 7014434YP)

$15.99

$

Usually ships in 2-12 days

0

22

Snapper 7014476

CABLE, Positive Terminal
(Superseded to 7014476YP)

$12.99

$

Usually ships in 2-12 days

0

23

Snapper 7060618

KIT, Battery, 12 Volt
(Superseded to 1685215SM)

$

$

Not available

24

Snapper 7023194

HOLD-DOWN, Battery
(Superseded to 7023194YP)

$9.49

$

Usually ships in 2-12 days

0

25

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

Note: Was 14363

$19.99

$

In Stock, only 4 left!

0

26

Snapper 7052258

TANK, Fuel

Note: (Includes item 25)

$

$

Not available

27

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7032542

LINE, Fuel
(Superseded to 7032542YP)

$5.49

$

Usually ships in 2-12 days

0

29

Snapper 7023195

CABLE-TIE, Fuel Tank Hold-Down
(Superseded to 7023195SM)

$5.99

$

Usually ships in 2-12 days

0
