LT 12D411B (80084) - Snapper 41" Lawn Tractor, 12hp Chain Case & Smooth Clutch Assm'y Parts Diagram

41" Lawn Tractor, 12hp

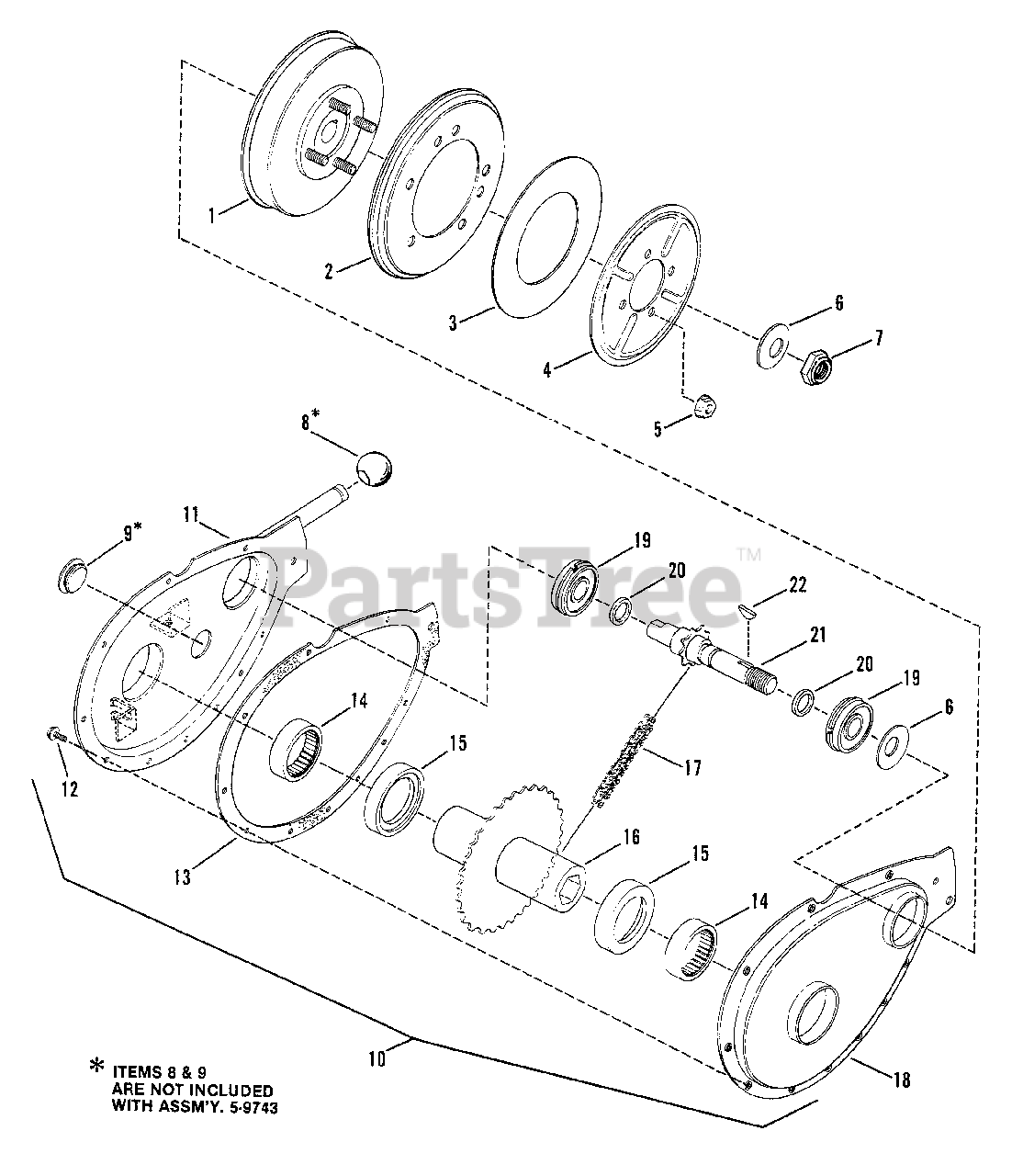

Chain Case & Smooth Clutch Assm'y Parts Diagram

  • Title

1

Snapper 7059443

HUB, Driven Disc
(Superseded to 7600142YP)

Note: Was 57338

$42.99

$

In Stock, Qty 20+

0

2

Snapper 7053103

DISC, Driven
(Superseded to 7600135YP)

Note: Was 57423

$42.99

$

In Stock, Qty 20+

0

3

Snapper 7014523

WASHER, Thrust
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

4

Snapper 7032331

PLATE
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7011121

WASHER, Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7091006

NUT, 5/8-18 Hex Lock
(Superseded to 7091006SM)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7014396

BUSHING, Primary Clutch Ball
(Superseded to 7014396YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

10

Snapper 7059743

ASSEMBLY, Chain Case
(Superseded to 7059743YP)

Note: (Includes items 11 thru 22 & 1 ea. item 6)

$330.99

$

Usually ships in 2-12 days

0

11

Snapper 7047934

CASE, Sprocket
(Superseded to 7047934YP)

$74.99

$

Usually ships in 2-12 days

0

12

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

13

Snapper 7028761

GASKET, Case Cover
(Superseded to 7028761YP)

Note: Was 18059

$24.99

$

In Stock, Qty 20+

0

14

Snapper 7010942

BEARING, Needle
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 20+

0

15

Snapper 7011086

WASHER, Nylon Thrust
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 14

0

16

Snapper 7040355

HUB & SPROCKET
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

17

Snapper 7010941

CHAIN
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

18

Snapper 7039778

COVER, Chain Case
(Superseded to 7039778YP)

$43.99

$

Usually ships in 2-12 days

0

19

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

20

Snapper 7019260

"O"-RING
(Superseded to 7019260YP)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7018963

SPROCKET & SHAFT
(Superseded to 7018963YP)

$96.99

$

In Stock, only 2 left!

0

22

Snapper 7010614

KEY, Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

Snapper 7059743

Primary Chain Case Assy.
(Superseded to 7059743YP)

$330.99

$

Usually ships in 2-12 days

0
