LT 12D410B (82879) - Snapper 41" Lawn Tractor, 12hp Wheels - Rear Parts Diagram

41" Lawn Tractor, 12hp

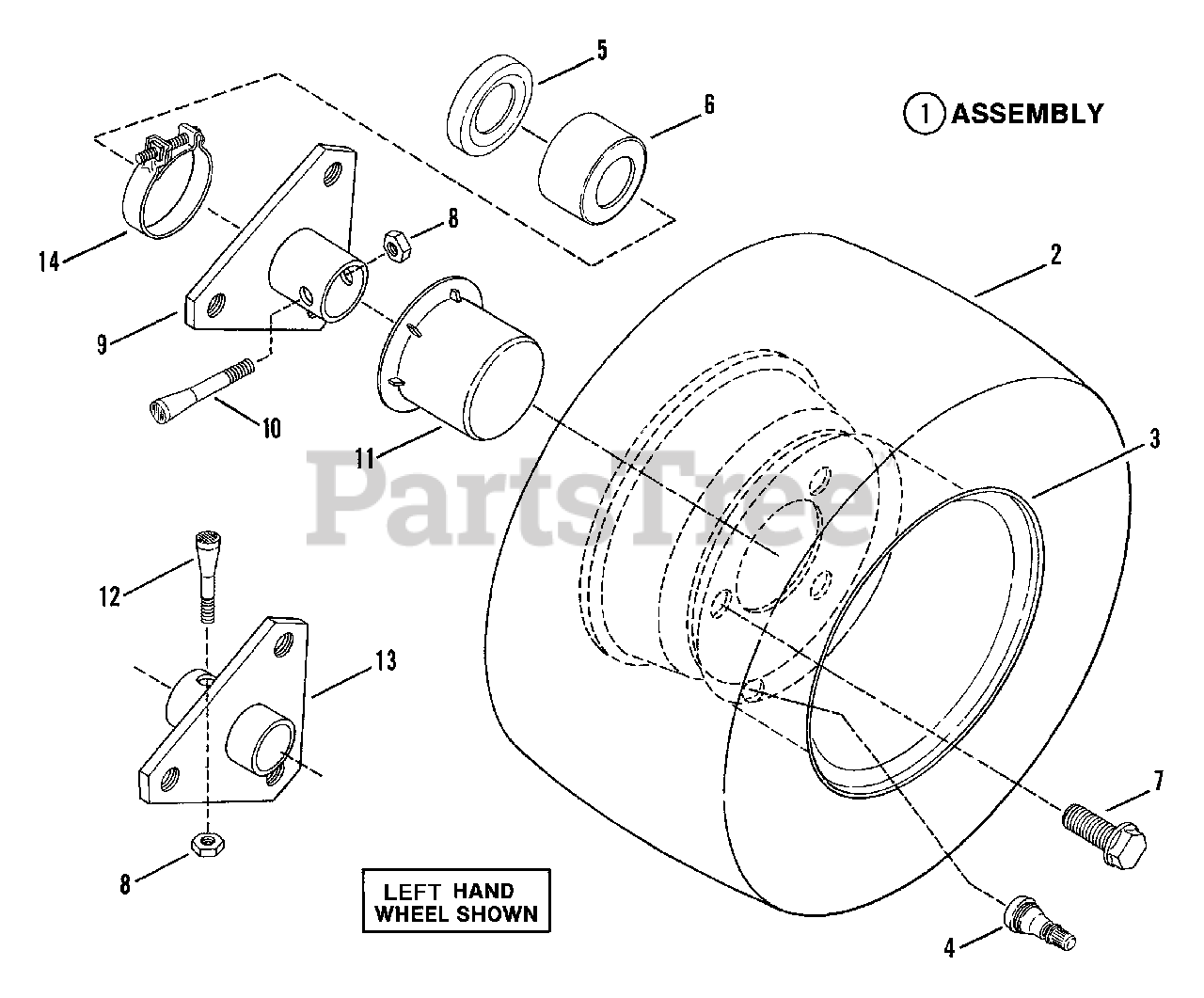

Wheels - Rear Parts Diagram

  • Title

1

Snapper 7051754

ASSEMBLY, Rear Tire & Rim (41" Deck)

Note: (Includes items 2,3,& 4)

$

$

Currently unavailable

Snapper 7051831

ASSEMBLY, Rear Tire & Rim (33" Deck)

Note: (Includes items 2,3,& 4)

$

$

Currently unavailable

2

Snapper 7023196

TIRE, 18-8.50x8
(Superseded to 7023196YP)

Note: (Used with 41 "Deck)

$113.99

$

Usually ships in 2-12 days

0

Snapper 7016163

TIRE, 18-6.50x8
(Superseded to 7016163YP)

Note: (Used with 33" Deck)

$111.99

$

Usually ships in 2-12 days

0

3

Snapper 7016742

RIM, 8x7

Note: Was 19045 (Used with 41" Deck)

$

$

Not available

Snapper 7017071

RIM, 8x5.375

Note: (Used with 33" Deck)

$

$

Currently unavailable

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7011817

SEAL, Oil (Left Hand)
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7031732

CAP, Seal, (Left Hand)
(Superseded to 7031732YP)

$6.49

$

In Stock, Qty 20+

0

7

Snapper 7091502

BOLT, 1/2-20x3/4" Lug
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7092062

NUT, 5/16-24, Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7040433

HUB, Rear Wheel, Left Hand 1.126" ID
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 13

0

10

Snapper 7011013

BOLT, 5/16-24x2", Tapered, Left Hand
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

11

Snapper 7011052

HUB-CAP
(Superseded to 7011052YP)

$4.49

$

In Stock, Qty 7

0

12

Snapper 7011035

BOLT, 5/16-24x1-5/8", Tapered, Right Hand
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 7040434

HUB, Rear Wheel, Right Hand .75" ID
(Superseded to 7040434YP)

$

$

Not available

14

Snapper 7011037

CLAMP
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0
