LT 12D410B (82879) - Snapper 41" Lawn Tractor, 12hp Wheels - Front Parts Diagram

41" Lawn Tractor, 12hp

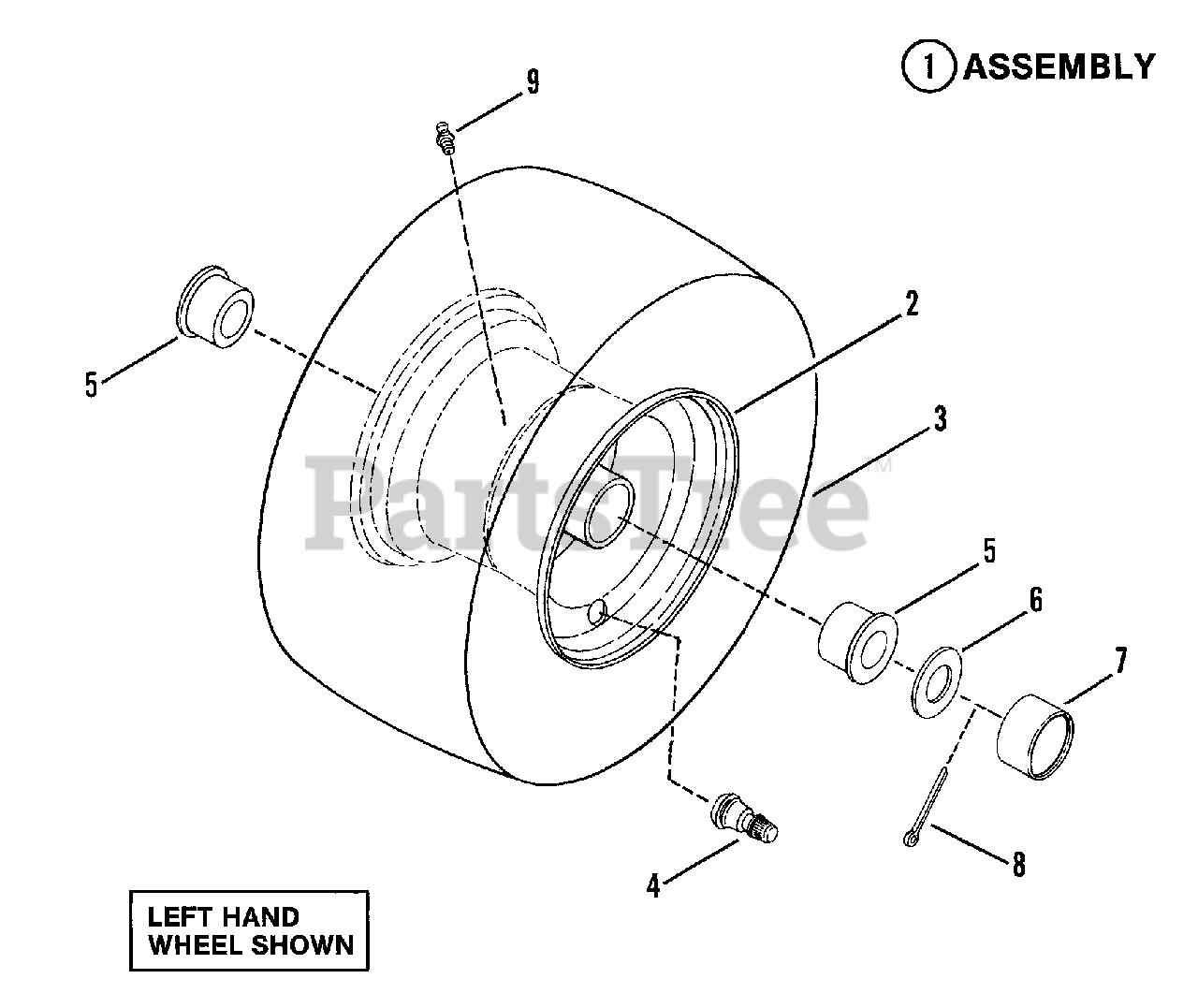

Wheels - Front Parts Diagram

  • Title
1

Snapper 7058517

ASSEMBLY, Front tire & Rim
(Superseded to 7058517YP)

Note: Was 51372 (Includes items 2, 3, & 4)

$167.99

$

Usually ships in 2-12 days

0

2

Snapper 7019718

RIM, 6x4.50
(Superseded to 7058517YP)

$167.99

$

Usually ships in 2-12 days

0

3

Snapper 7072704

TIRE, 15x6.00x6
(Superseded to 7058517YP)

Note: Was 14350

$167.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7014483

BEARING, Wheel
(Superseded to 7014483YP)

$10.99

$

In Stock, Qty 11

0

6

Snapper 7032027

WASHER
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

7

Snapper 7011022

COVER, Dust
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7091516

COTTER-PIN
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 13

0

9

Snapper 7076998

FITTING, Lube 1/4-28 Tapered Thread
(Superseded to 703153)

Note: Was 13876

$3.99

$

In Stock, Qty 12

0
