LT 12D410B (82879) - Snapper 41" Lawn Tractor, 12hp Transmission Support & Components (Part 2) Parts Diagram

41" Lawn Tractor, 12hp

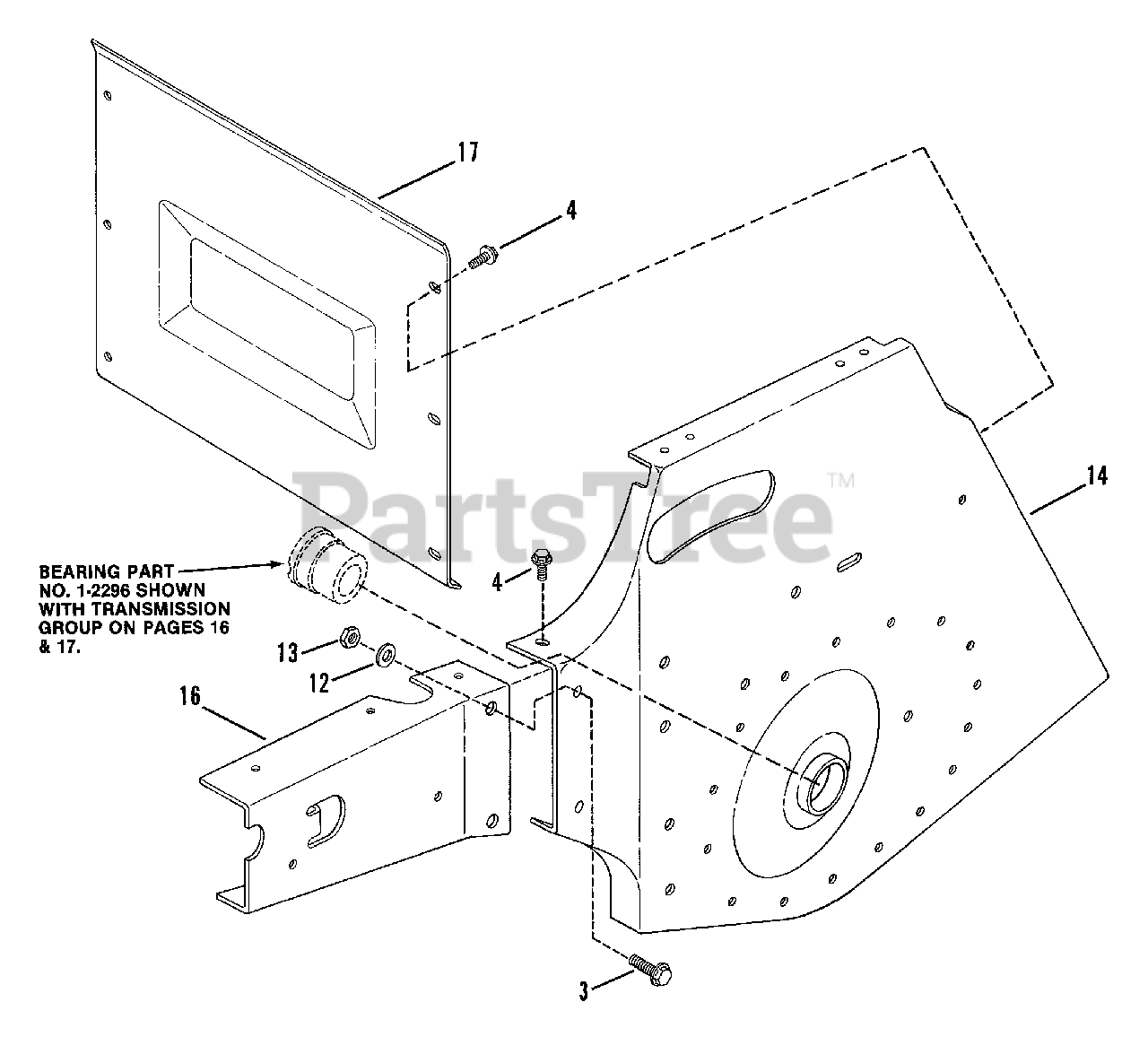

Transmission Support & Components (Part 2) Parts Diagram

  • Title

3

Snapper 7027198

BOLT, 3/8-16x1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

4

Snapper 7090361

SCREW, 5/16-18x5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

12

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7091585

NUT, 3/8-16 Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

14

Snapper 7051759

TRANSMISSION SUPPORT, L.H.
(Superseded to 7051759YP)

Note: (Includes Bearing P.N. 12296 shown on "Transmission Assembly Parts")

$148.99

$

Usually ships in 2-12 days

0

16

Snapper 7035179

EXTENSION, Transmission Support, L.H.

$

$

Currently unavailable

17

Snapper 7036252

COVER, Rear

$

$

Not available
