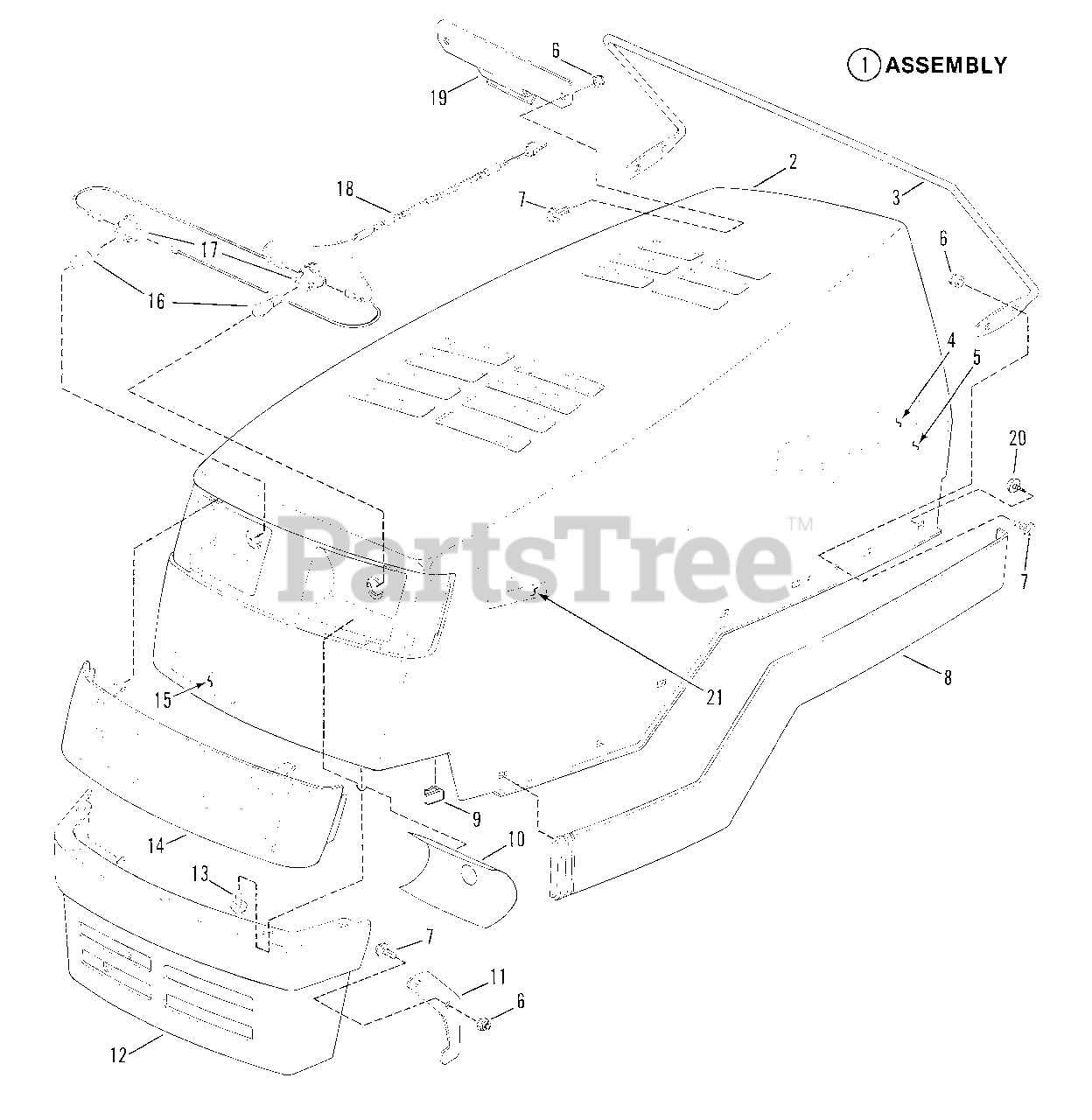

LT 12D331TV (80081) - Snapper 33" Lawn Tractor, 12hp Hood, Bumper, Headlights Parts Diagram

33" Lawn Tractor, 12hp

Hood, Bumper, Headlights Parts Diagram

  • Title
1A

Snapper 7063298

HOOD ASSEMBLY
(Superseded to 7063298YP)

Note: Was 52193 or 61383 (Incl.Items 2 thru 20)

$1036.99

$

Usually ships in 2-12 days

0

1B

Snapper 7063298

KIT, LTH Hood
(Superseded to 7063298YP)

Note: Was 61082 or 61383

$1036.99

$

Usually ships in 2-12 days

0

2

$

$

Currently unavailable

3

Snapper 7016766

ROD, Hood Latch
(Superseded to 7016766YP)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 7024980

DECAL-SNAPPER, Molded Logo

Note: Was 16974 or 36438

$

$

Not available

5

Snapper 7019397

DECAL, Stripe

Note: (R.H.)

$

$

Not available

Snapper 7019398

DECAL, Stripe

Note: (L.H. Shown)

$

$

Not available

6

Snapper 7076978

LOCKNUT, 1/4-20 Hex
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7090999

SCREW, 1/4-20 x 5/8" Torx, Truss Hd.
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 19412

BUMPER

Note: (R.H.)

$

$

Currently unavailable

Snapper 19413

BUMPER
(Superseded to 19545)

Note: (L. H. Shown)

$387.99

$

Usually ships in 2-12 days

0

9

Snapper 7012691

CLIP, Wiring Harness
(Superseded to 7012691YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7017174

DECAL, Reflect
(Superseded to 7017174YP)

Note: (R.H.)

$7.99

$

Usually ships in 2-12 days

0

Snapper 7017175

DECAL, Reflect
(Superseded to 7017175YP)

Note: (L.H. Shown)

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7033265

BRACKET, Latch Hook
(Superseded to 7033265YP)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7019414

BUMPER, Front

$

$

Not available

13

Snapper 7091106

SCREW, #12 x 1/2"
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7024893

LENS
(Superseded to 7024893YP)

Note: Was 19415

$45.99

$

Usually ships in 2-12 days

0

15

Snapper 7016876

DECAL-SNAPPER, Molded Logo
(Superseded to 7016876YP)

$6.99

$

Usually ships in 2-12 days

0

16

Snapper 7016756

BULB, Headlights

$

$

Not available

17

Snapper 7016757

SOCKET, Headlight Bulb

$

$

Not available

18

Snapper 7016765

HARNESS, Headlight Wiring

$

$

Not available

19

Snapper 7017359

CLIP, Spring Latch
(Superseded to 7017359YP)

$33.99

$

Usually ships in 2-12 days

0

20

Snapper 7017750

FASTENER

$

$

Currently unavailable

21

Snapper 7016817

DECAL, Model, LT12D33
(Superseded to 7016817YP)

$6.49

$

Usually ships in 2-12 days

0

Snapper 7016818

DECAL, Model, LT12D41

$

$

Not available

Snapper 7052451

LT Hood

$

$

Currently unavailable
