LT 12D330B (82899) - Snapper 33" Lawn Tractor, 12hp Hood Grille, Headlamps Parts Diagram

33" Lawn Tractor, 12hp

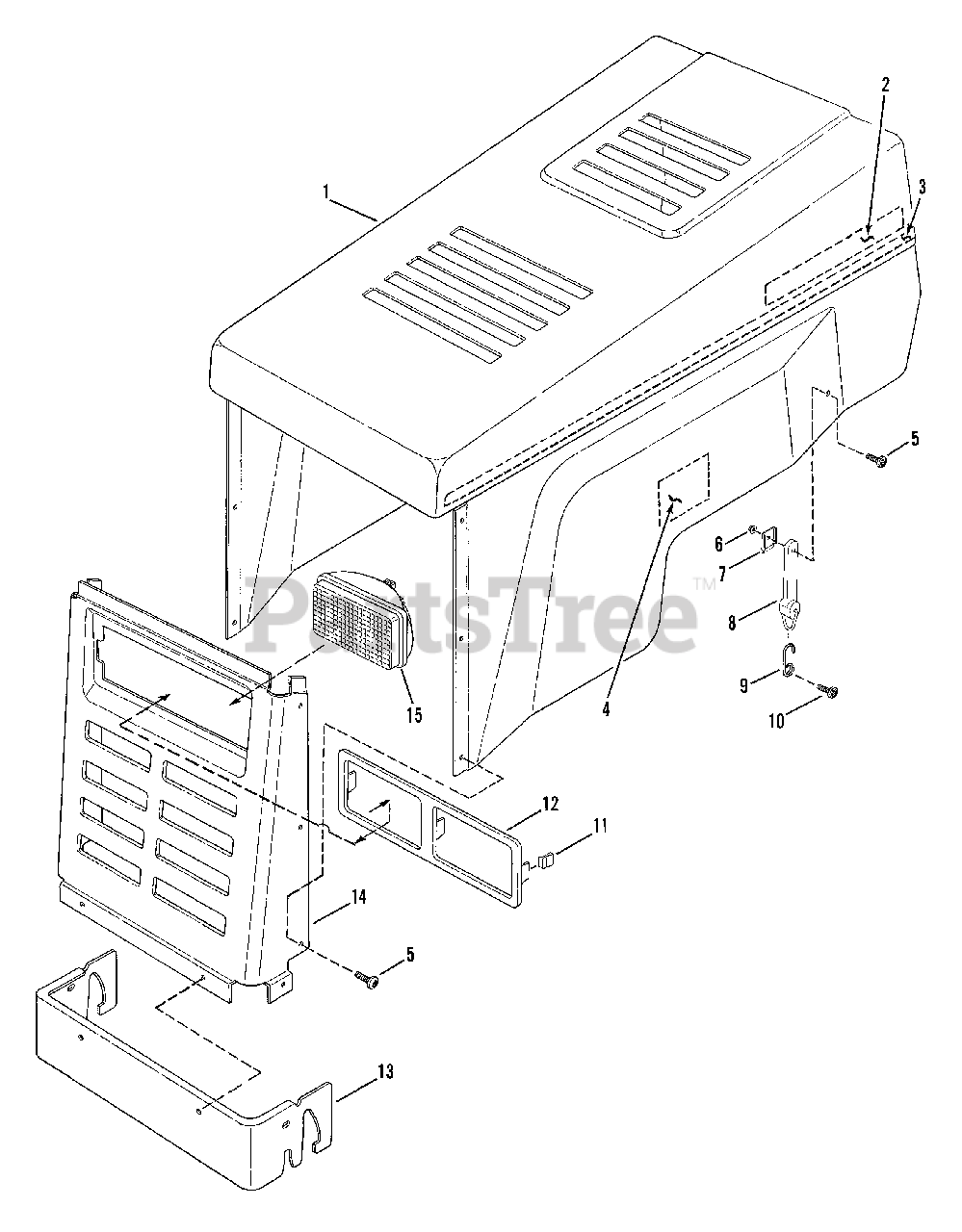

Hood Grille, Headlamps Parts Diagram

  • Title

1

Snapper 7061094

HOOD, LTD 12

Note: Was 40567

$

$

Currently unavailable

2

Snapper 7019294

DECAL, SNAPPER
(Superseded to 7019294YP)

$5.49

$

In Stock, only 1 left!

0

3

Snapper 7023805

DECAL, Stripe

$

$

Not available

4

Snapper 7023806

DECAL, LT12D, 6 SPEED, 33 HI-VAC

$

$

Not available

Snapper 7023807

DECAL, LT12D, 6 SPEED, 41" CUT

$

$

Not available

5

Snapper 7090999

SCREW, 1/4-20x5/8" Torx Hd., S.T.
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7091545

LOCKNUT, 1/4-20 Hex Flange
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, only 2 left!

0

7

Snapper 7032444

CLIP, Hood Latch
(Superseded to 7032444YP)

$37.99

$

Usually ships in 2-12 days

0

8

Snapper 7018254

LATCH, Hood
(Superseded to 7018254YP)

$16.99

$

Usually ships in 2-12 days

0

9

Snapper 7023168

ANCHOR, Hood Latch
(Superseded to 7023168YP)

$2.49

$

Usually ships in 2-12 days

0

10

Snapper 7091000

SCREW, 5/16-18x7/8" Torx Hd., S.T.
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

11

Snapper 7015664

CLIP, Head Lamp
(Superseded to 7015664YP)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7017023

BRACKET, Head Lamp
(Superseded to 7017023YP)

$47.99

$

Usually ships in 2-12 days

0

13

Snapper 7035142

BUMPER
(Superseded to 7035142YP)

$47.99

$

Usually ships in 2-12 days

0

14

Snapper 7035149

GRILLE

$

$

Currently unavailable

15

Snapper 7018829

HEAD LAMP
(Superseded to 7018829YP)

$59.99

$

Usually ships in 2-12 days

0

?16

Snapper 7023892

TRIM, Hood, Rear
(Superseded to 7023892YP)

$15.99

$

Usually ships in 2-12 days

0
