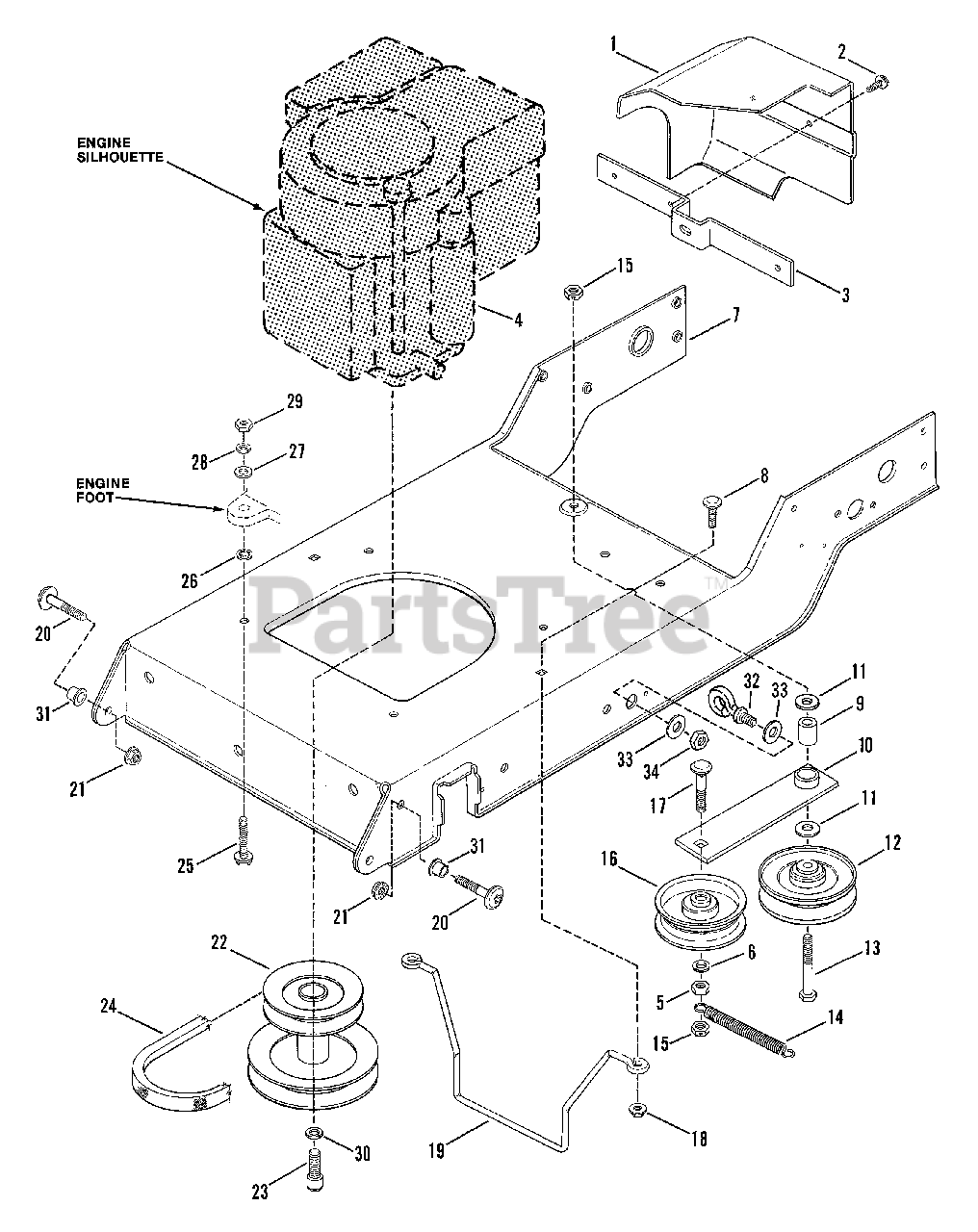

LT 12D330B (82899) - Snapper 33" Lawn Tractor, 12hp Engine, Engine Base & Drive Parts Parts Diagram

33" Lawn Tractor, 12hp

Engine, Engine Base & Drive Parts Parts Diagram

  • Title

1

Snapper 7017022

HEAT SHIELD
(Superseded to 7017022YP)

$99.99

$

Usually ships in 2-12 days

0

2

Snapper 7090896

SCREW, #10-24x1/2" H.W.S.T.
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

3

Snapper 7038374

BRACKET, Heat Shield
(Superseded to 7038374YP)

$38.99

$

Usually ships in 2-12 days

0

4

* ENGINE, Briggs & Stratton Mod. 280707-0135-01

$

$

Not available

5

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7090118

LOCKWASHER, 3/8 Split
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

7

Snapper 7033088

BASE, Engine

Note: Was 35147

$

$

Currently unavailable

8

Snapper 7091508

BOLT, 5/16-18x3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90788

$3.49

$

In Stock, Qty 16

0

9

Snapper 7044752

BUSHING, Idler
(Superseded to 7044752YP)

Note: Was 22062

$23.99

$

Usually ships in 2-12 days

0

10

Snapper 7040565

ARM, Idler
(Superseded to 7040565YP)

$46.99

$

Usually ships in 2-12 days

0

11

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

12

Snapper 7011029

PULLEY, Idler, 4" O.D.
(Superseded to 7011029YP)

$23.99

$

In Stock, only 1 left!

0

13

Snapper 7090629

BOLT, 3/8-16x2-1/4" Hex
(Superseded to 7090629YP)

$2.49

$

Usually ships in 2-12 days

0

14

Snapper 7027856

SPRING, Idler Arm
(Superseded to 7027856YP)

Note: Was 17807

$8.49

$

Usually ships in 2-12 days

0

15

Snapper 7091585

LOCKNUT, 3/8-16 Hex, Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

16

Snapper 7023199

PULLEY, Idler, 3-3/4" O.D.
(Superseded to 7023199YP)

$

$

Not available

17

Snapper 7091008

BOLT, 3/8-16x2-112" Short Neck Carriage
(Superseded to 7091008YP)

$4.99

$

In Stock, only 1 left!

0

18

Snapper 7091601

LOCKNUT, 5/16-18 Hex Flange
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7019042

GUIDE, Belt

$7.49

$

Usually ships in 2-12 days

0

20

Snapper 7023198

SCREW, Shoulder, 3/8-16x1-5/8"

$

$

Not available

21

Snapper 7091619

LOCKNUT, 318-16 Hex Flange
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

22

Snapper 7019036

PULLEY ASSEMBLY, Engine
(Superseded to 7019036YP)

$146.99

$

Usually ships in 2-12 days

0

23

Snapper 7090836

CAPSCREW, 7/16-20 Hex Socket Head

$

$

Not available

24

Snapper 7023184

V-Belt, Traction Drive, LT12D 41 (Before Serial No. 05003133 Only)
(Superseded to 7023184YP)

Note: (NOTES ADDED, 5/90)

$67.99

$

Usually ships in 2-12 days

0

24

Snapper 7023626

V-Belt, Traction Drive, all LT12D 33 (& LT12D41 Serial No. 05003133 & Later)
(Superseded to 7023626YP)

Note: (NOTES ADDED, 5/90)

$74.99

$

In Stock, only 1 left!

0

25

Snapper 7091540

SCREW, 5/16-18x1-1/2" Hex Head Cap
(Superseded to 703906)

Note: Was 90211

$4.99

$

In Stock, only 4 left!

0

26

Snapper 7011791

RETAINER, Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

28

Snapper 7090187

LOCKWASHER, 5/16 Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7091301

LOCKWASHER, 7/16" Split
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7012306

BUSHING
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

32

Snapper 7014438

EYE-BOLT
(Superseded to 7014438YP)

$8.49

$

Usually ships in 2-12 days

0

33

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

In Stock, only 2 left!

0

34

Snapper 7091575

LOCKNUT, 5/16-18 Hex
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0
