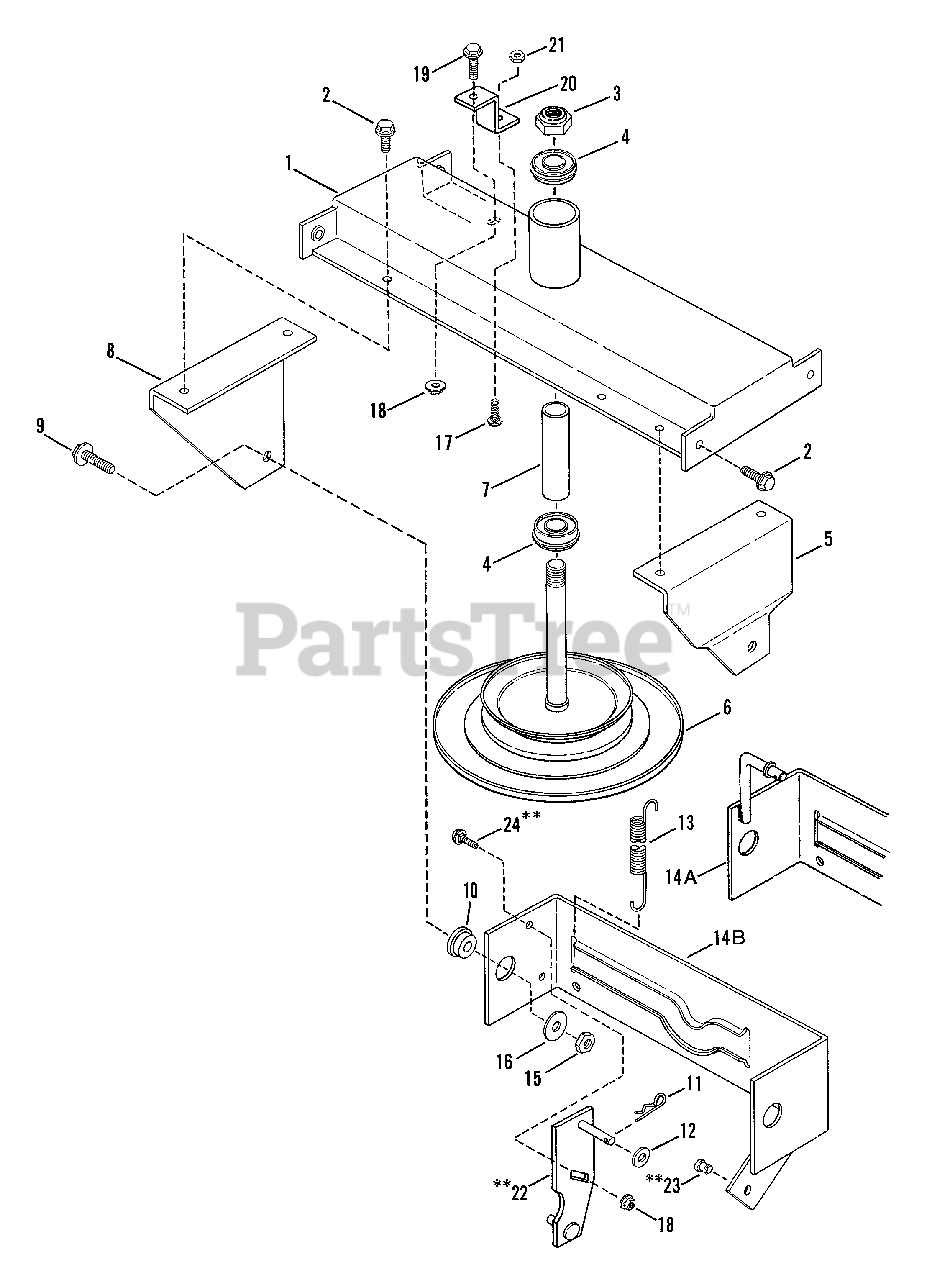

LT 12D330B (82899) - Snapper 33" Lawn Tractor, 12hp Disc Drive & Clutch Yoke Parts Diagram

33" Lawn Tractor, 12hp

Disc Drive & Clutch Yoke Parts Diagram

  • Title
1

Snapper 7049764

SUPPORT ASSM'Y., Disc Drive
(Superseded to 7049764YP)

$216.99

$

Usually ships in 2-12 days

0

2

Snapper 7090858

SCREW, 5/16-18x1/2" Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

3

Snapper 7091006

LOCKNUT, 518-18 Hex
(Superseded to 7091006SM)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7038385

BRACKET, Yoke Pivot, L.H.

$

$

Not available

6

Snapper 7017021

DISC-DRIVE ASSM'Y.
(Superseded to 7017021YP)

$122.99

$

Usually ships in 2-12 days

0

7

$

$

Not available

8

Snapper 7038384

BRACKET, Yoke Pivot, R.H.

$

$

Not available

9

Snapper 7090238

SCREW, 5/16-24x1" Hex Hd. Cap
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

10

Snapper 7011048

BEARING, Yoke
(Superseded to 7011048YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7012431

PIN, Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7014659

SPRING
(Superseded to 7014659YP)

$15.99

$

Usually ships in 2-12 days

0

14A

Snapper 7049765

YOKE, Clutch
(Superseded to 7049765YP)

$99.99

$

Usually ships in 2-12 days

0

14B

Snapper 7040676

YOKE, Clutch

Note: LT12D33 Serial No. 05005088 & Later, LT12D41 Serial No. 05003133 & Later

$

$

Not available

15

Snapper 7090222

LOCKNUT, 5/16-24 Hex
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7011763

WASHER, 5/16 Flat
(Superseded to 7011763SM)

$4.49

$

In Stock, only 4 left!

0

17

Snapper 7090192

BOLT, 5/16-18x1-1/2" Carriage
(Superseded to 7090192YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7090595

BOLT, 5/16-18x3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

20

Snapper 7051958

YOKE STOP ASSEMBLY
(Superseded to 7051958YP)

$52.99

$

Usually ships in 2-12 days

0

21

Snapper 7090197

JAM-NUT, 5/16-18 Hex
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7040668

ANCHOR, Spring
(Superseded to 7040668YP)

Note: PARTS ADDED, 5/90

$53.99

$

Usually ships in 2-12 days

0

23

Snapper 7016353

BEARING, Nyliner
(Superseded to 7016353YP)

Note: PARTS ADDED, 5/90

$3.49

$

In Stock, only 1 left!

0

24

Snapper 7090316

BOLT, 5/16-18x3/4" Carriage
(Superseded to 703225)

Note: Was 90670 (PARTS ADDED, 5/90)

$3.99

$

In Stock, Qty 18

0
