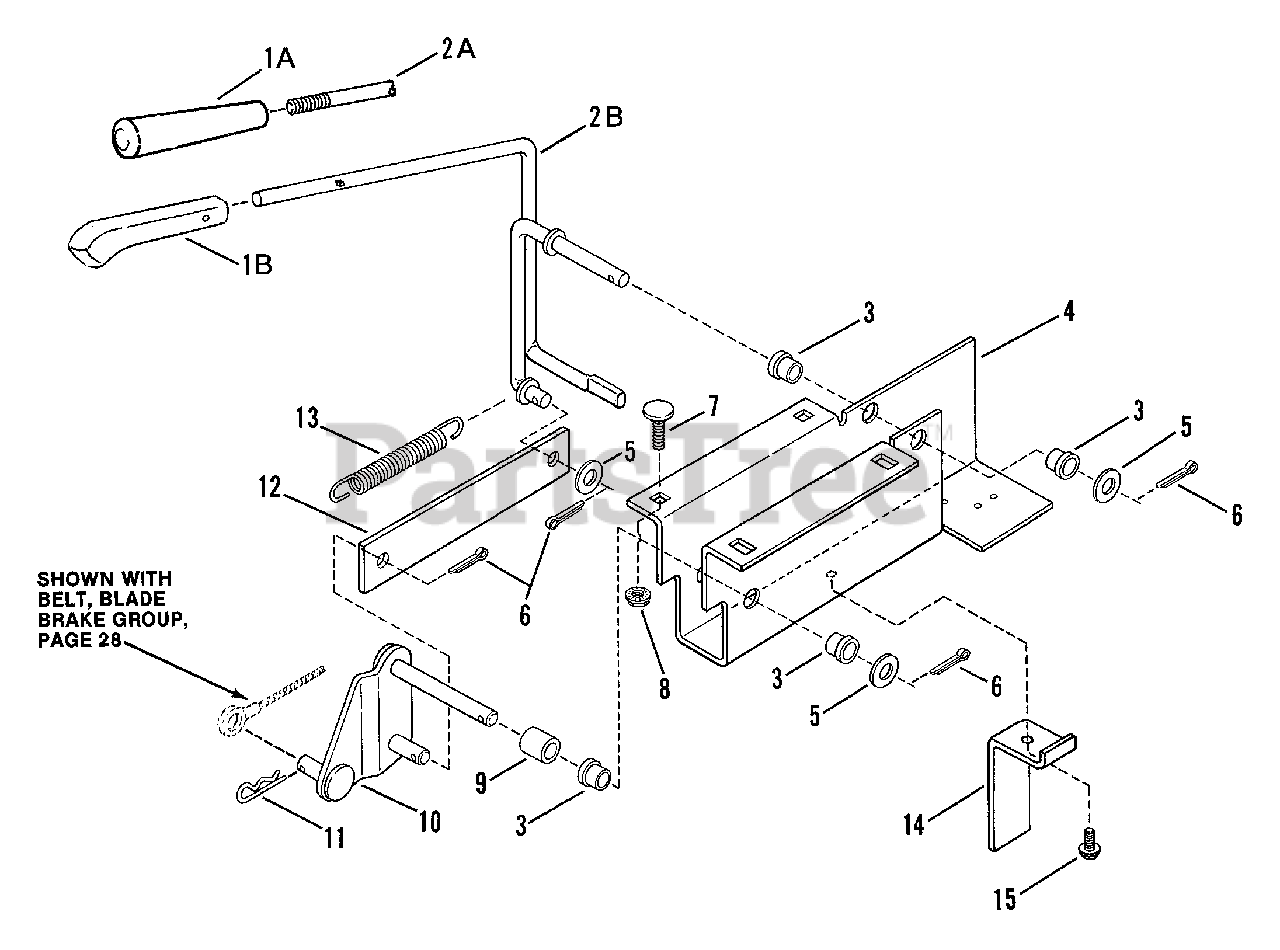

LT 12D330B (82899) - Snapper 33" Lawn Tractor, 12hp Blade Engagement Parts Diagram

33" Lawn Tractor, 12hp

Blade Engagement Parts Diagram

  • Title

1A

Snapper 7023458

KNOB, Handle
(Superseded to 7023458YP)

$10.99

$

Usually ships in 2-12 days

0

1B

Snapper 7016356

KNOB, Handle

Note: LT12D33 Serial No. 05005088 & Later, LT12D41 Serial No. 05003133 & Later

$

$

Not available

2A

Snapper 7040568

HANDLE, Blade Engagement (Threaded)

$

$

Currently unavailable

2B

Snapper 7040674

HANDLE, Blade Engagement

Note: LT12D33 Serial No. 05005088 & Later, LT12D41 Serial No. 05003133 & Later

$

$

Not available

3

Snapper 7013321

BUSHING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 36271

BRACKET, Handle

$

$

Currently unavailable

5

Snapper 7090122

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7091597

COTTER-PIN, 3/32x3/4" Flat Head Carriage
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090803

BOLT, 1/4-20x5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7091584

LOCKNUT, 1/4-20 Hex Flange
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

9

Snapper 7023206

SPACER
(Superseded to 7023206YP)

$8.49

$

Usually ships in 2-12 days

0

10

Snapper 7040570

PIVOT ARM ASSEMBLY

$

$

Not available

11

Snapper 7012431

PIN, Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7032712

LINK

$

$

Not available

13

Snapper 7023165

SPRING, Return
(Superseded to 7023165YP)

$19.99

$

Usually ships in 2-12 days

0

14

Snapper 7032841

GUIDE, Belt
(Superseded to 7032841YP)

$51.99

$

Usually ships in 2-12 days

0

15

Snapper 7090896

SCREW, #10-24x1/2" H.W.H.S.T.
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0
