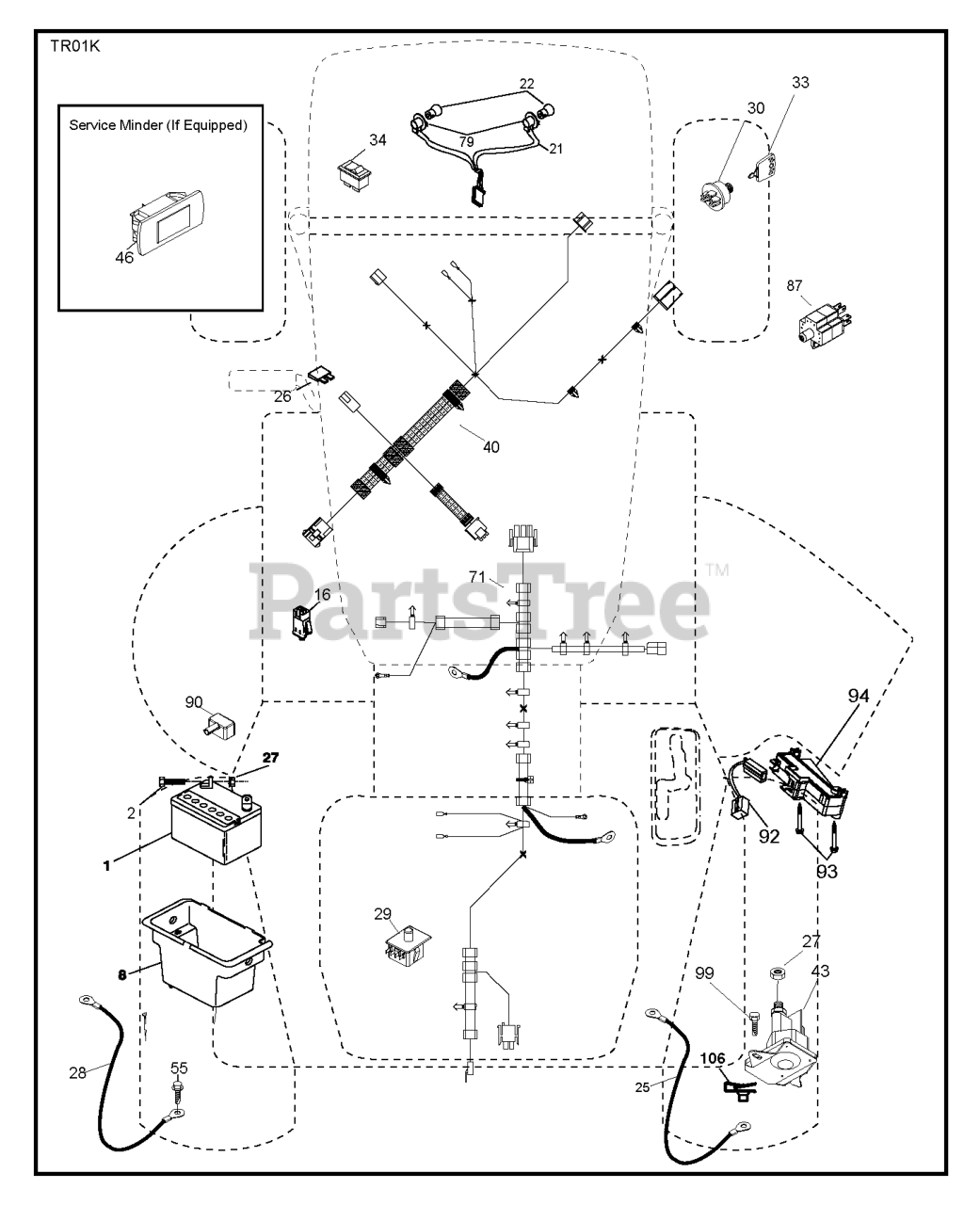

LT 126 (960410198-04) - Husqvarna Lawn Tractor (2013-04) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

14

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$85.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

$37.99

$

In Stock, only 1 left!

0

207

Husqvarna 585420002

BEZEL GT2 LED RH W/ LOWER.ATT

Note: RH

$13.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532198909

REFLECTOR.LH.TEX GT HU

Note: LH

$17.99

$

In Stock, only 1 left!

0

299

Husqvarna 585420401

LED LIGHT.RH

$120.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

Note: RH

$17.99

$

In Stock, only 1 left!

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

379

Husqvarna 593206902

CHASSIS.PLATE.REINFORCEMNT.431

$5.99

$

In Stock, only 1 left!

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

194

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590748829

DASH.UPPER.ASM.GT2.DR.EL.EFM

$45.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585420201

LENS.RH
(Superseded to 585420602)

Note: RH

$169.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532194314

BRKT.SUPPORT.FNDR/TANK

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580434401

DRAWBAR.STGT

$120.99

$

In Stock, only 1 left!

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532439929

CONSOLE.WINDOW.FUEL.HUSQ.GT
(Superseded to 532401826)

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532441208

FENDER.PNT.TX.GT.CH/FW/DL.HUSQ

$250.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585420301

LED LIGHT.LH
(Superseded to 585420602)

Note: LH

$169.99

$

Usually ships in 3-10 days

0

204

Husqvarna 587485801

VENT.TOP.ASM.HUSQ.GT2

$26.99

$

In Stock, only 3 left!

0

3

Husqvarna 532444481

APPLIQUE.SUBASM.GT.HUSQ.II

$40.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

162

Husqvarna 596134101

Screws

$3.99

$

In Stock, only 3 left!

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 597247301

Grilles

$194.99

$

Usually ships in 3-10 days

0

378

Husqvarna 590849801

BUSHING FLANGE; PLASTIC

$4.99

$

In Stock, only 1 left!

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$14.99

$

Usually ships in 3-10 days

0

281

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

182

Husqvarna 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$96.99

$

In Stock, only 2 left!

0

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

296

Husqvarna 585420501

LED LIGHT.LH

$120.99

$

Usually ships in 3-10 days

0

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

196

Husqvarna 532439674

CONSOLE.ASM.DECKLIFT.HUSQGT.DL

$96.99

$

In Stock, only 1 left!

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$4.99

$

In Stock, only 1 left!

0

297

Husqvarna 586182901

INSERT REFECT LH

$4.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532198259

PLATE.DECK.LIFT.HUSQVARNA.GT

$26.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

191

Husqvarna 586182801

INSERT INFLECT.RH

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 596030701

Screws

$3.99

$

In Stock, only 2 left!

0

150

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532431882

KIT GUARD BRUSH
(Superseded to 505568813)

$153.99

$

Usually ships in 3-10 days

0

228

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

Note: LH

$17.99

$

In Stock, only 1 left!

0

175

Husqvarna 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$37.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$17.99

$

In Stock, only 2 left!

0

165

Husqvarna 532194330

SUPPORT.TANK.REAR.B/TE

$20.99

$

Usually ships in 3-10 days

0

208

Husqvarna 585420102

BEZEL GT2 LED LH W/ LOWER ATT

Note: LH

$13.99

$

In Stock, only 1 left!

0

203

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

Note: LH

$17.99

$

In Stock, only 3 left!

0

235

Husqvarna 596564201

Spacers

$5.99

$

Usually ships in 3-10 days

0

180

Husqvarna 593346302

CHASSIS LTGT BOLTED PAINTED X4
(Superseded to 582033101)

$265.99

$

Usually ships in 3-10 days

0

183

Husqvarna 595305701

Screws

$4.99

$

In Stock, only 2 left!

0

130

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

40

Husqvarna 581023101

HARNESS.TEX.DASH.MAN.REAR BATT

$40.99

$

In Stock, only 1 left!

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532192540

SCREW.PLASTITE

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

92

Husqvarna 532196615

HARNESS.PIGTAIL.CONSLE

$18.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

87

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 7

0

106

Husqvarna 532174814

1/4-20 U NUT

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

In Stock, only 1 left!

0

1

Husqvarna 532144924

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

28

Husqvarna 532421686

CABLE.GROUND.REAR.BATTERY.8G
(Superseded to 583390701)

$15.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

8

Husqvarna 532193228

BOX.BATTERY.MNT.REAR.L

$28.99

$

In Stock, only 1 left!

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

71

Husqvarna 581023001

HARNESS.TEX.CHSSIS.REAR.BATT

$66.99

$

In Stock, only 2 left!

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

MODULE.REVERSE.ROS

$37.99

$

Usually ships in 3-10 days

0

25

Husqvarna 581498001

CABLE.BATT.RED.8GA.17

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0
