LT 126 (960410083-00) - Husqvarna Lawn Tractor (2009-01) STEERING Parts Diagram

Lawn Tractor

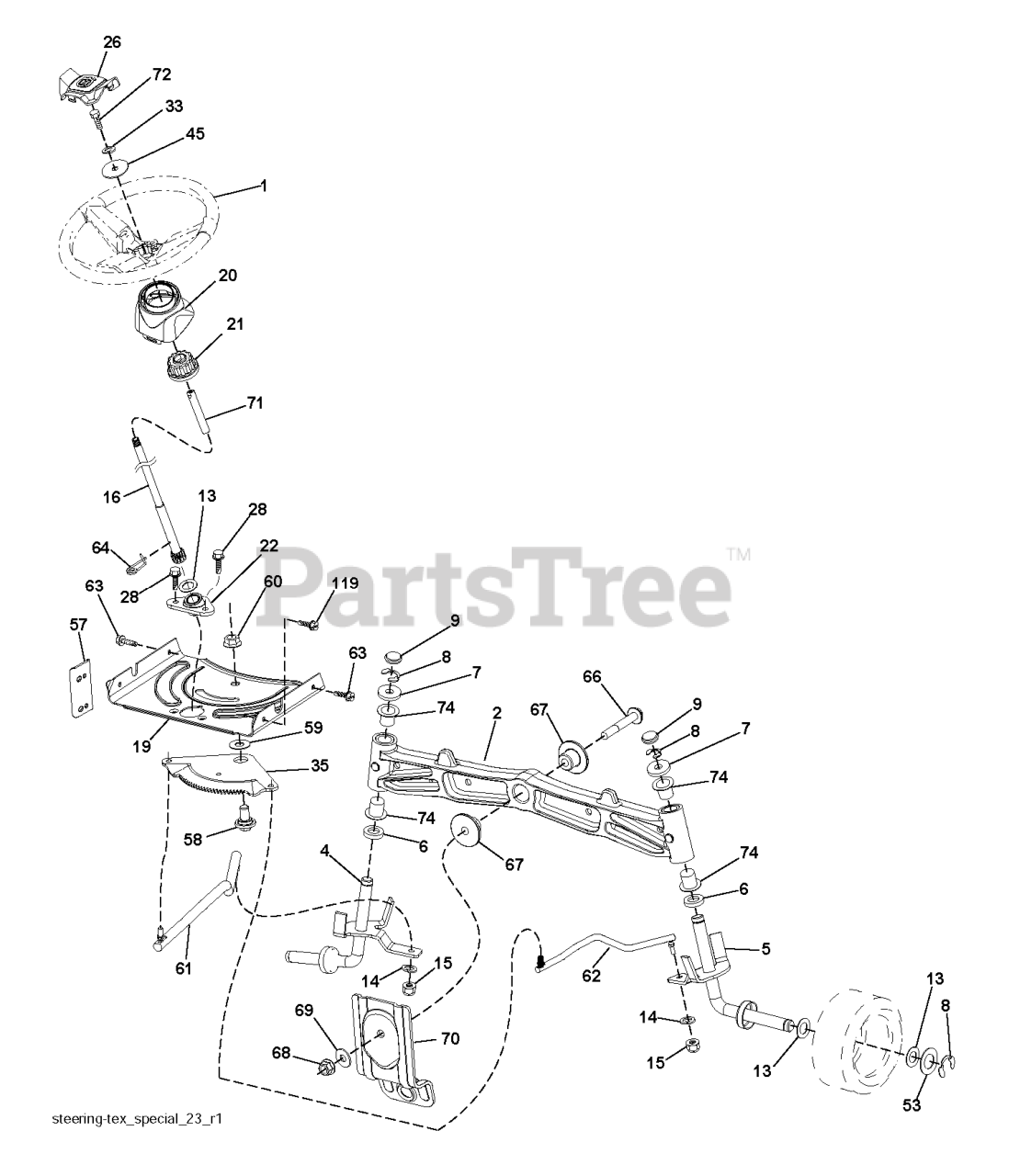

STEERING Parts Diagram

  • Title

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

74

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 532194845

BUSHING.ASM.STEERING.A
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

71

Husqvarna 532196075

SHAFT EXTENSION STEERING

$18.99

$

In Stock, only 2 left!

0

35

Husqvarna 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

13

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532196074

SHAFT STEERING

$

$

Not available

21

Husqvarna 532186737

ADAPTER, WHEEL STNG..
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532416845

SPINDLE.STEERING.ASM.LH.13".TI
(Superseded to 538690801)

$43.99

$

In Stock, only 1 left!

0

61

Husqvarna 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

$12.99

$

Usually ships in 3-10 days

0

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 14

0

2

Husqvarna 532418168

AXLE HALF ASM-WELDED
(Superseded to 531171101)

$68.99

$

In Stock, Qty 20+

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532416846

SPINDLE.STEERING.ASM.RH.13".TI
(Superseded to 538690701)

$39.99

$

In Stock, only 1 left!

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

45

Husqvarna 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532415987

RP INSERT.CAP.WHL.STRG.HUSQ.
(Superseded to 532439743)

$10.99

$

In Stock, only 1 left!

0

20

Husqvarna 532411139

BOOT, STEERING
(Superseded to 532441425)

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

1

Husqvarna 532416480

RP WHEEL.STEER.HUSQ.PREM.OVMLD
(Superseded to 532439740)

$93.99

$

In Stock, only 1 left!

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

70

Husqvarna 532417065

BRACKET.SUSP.MWR.FRT.30"SRD

$22.99

$

Usually ships in 3-10 days

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

72

Husqvarna 874780572

BOLT YT
(Superseded to 874780580)

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

62

Husqvarna 532194741

DRAGLINK.RH.BALLSTUD.D

$13.99

$

In Stock, Qty 20+

0
