LT 125H382KV (80381) - Snapper 38" Lawn Tractor, 12.5hp Implement Lift Parts Parts Diagram

38" Lawn Tractor, 12.5hp

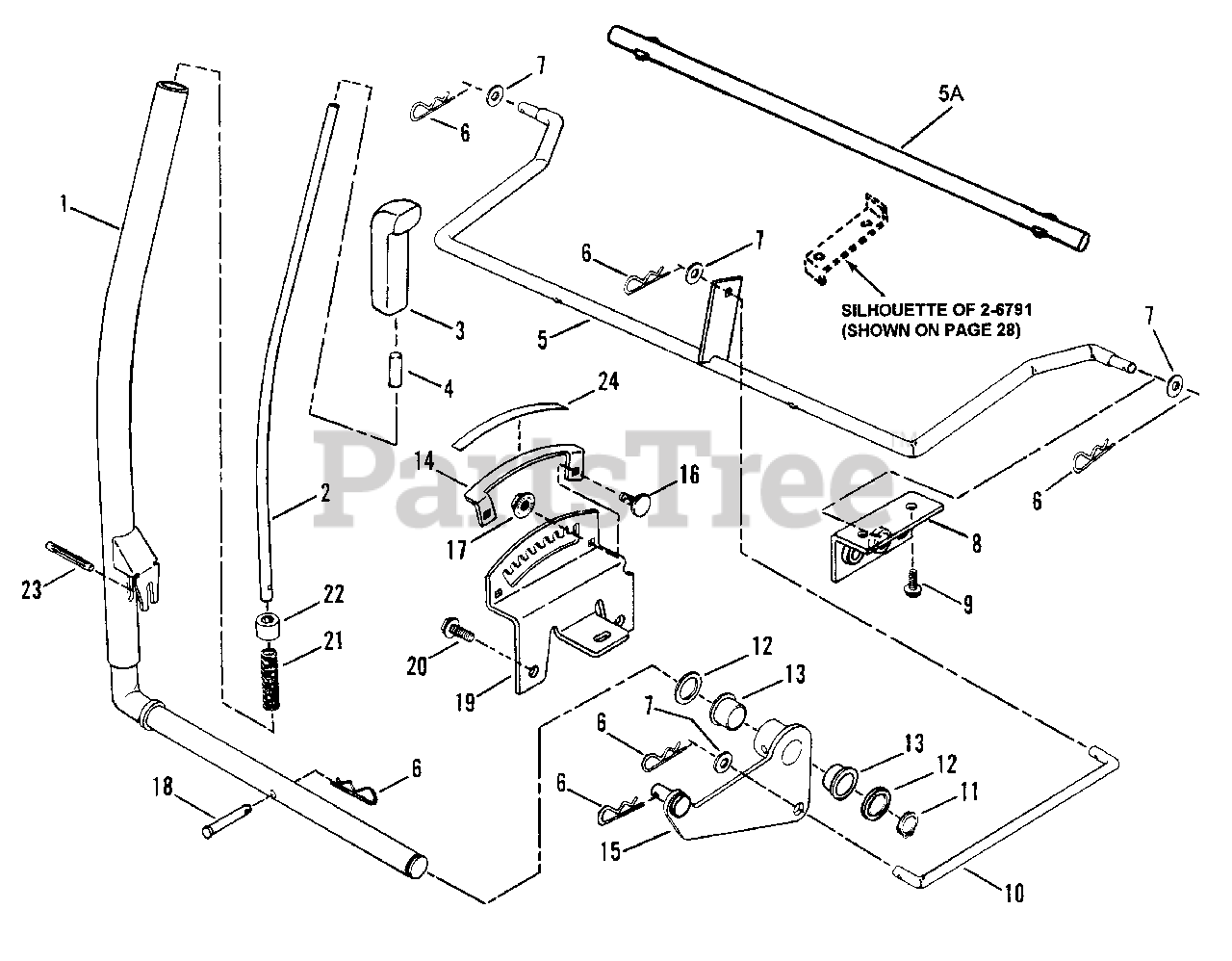

Implement Lift Parts Parts Diagram

  • Title
1

Snapper 7040698

ARM, Implement Lift Lever
(Superseded to 7040698YP)

$182.99

$

Usually ships in 2-12 days

0

2

Snapper 7033047

ROD, Lift Lever

$

$

Not available

3

Snapper 7019363

GRIP, Lift Lever
(Superseded to 7019363YP)

$8.49

$

Usually ships in 2-12 days

0

4

Snapper 7014361

CAP, Lift Release
(Superseded to 7014361YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7047967

ARM, Rear Lift
(Superseded to 7047967YP)

$98.99

$

Usually ships in 2-12 days

0

5A

Snapper 7026501

ROD, Uplatch (Used on ground-following decks only)

Note: Used on ground-following decks only.

$

$

Not available

6

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7033737

BRACKET, Hanger

$

$

Not available

9

Snapper 7090361

SCREW, 5/16-18 x 5/8" S.-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

10

Snapper 7023171

LIFT-ROD

$

$

Not available

11

Snapper 7015020

RING, Retaining EXT 7/8"
(Superseded to 7015020YP)

$

$

Not available

12

Snapper 7014354

WASHER, Lift Lever .905 x 1.25 x .091
(Superseded to 7014354YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7023197

BEARING, Lift Lever

$

$

Not available

14

Snapper 7033176

INDICATOR, Cut Height
(Superseded to 7033176YP)

$77.99

$

Usually ships in 2-12 days

0

15

Snapper 7041528

ASSEMBLY, Lift Lever Pivot

$

$

Not available

16

Snapper 7090803

BOLT, 1/4-20 x 5/8" Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

18

Snapper 7029841

PIN, Clevis, 5/16 x 1 11/16"
(Superseded to 704029)

Note: Was 12407

$4.49

$

In Stock, only 3 left!

0

19

Snapper 7033046

QUADRANT, Lift Lever

$

$

Not available

20

Snapper 7091000

SCREW, 5/16-18 x 7/8" Self-Tapping
(Superseded to 1960086SM)

Note: Was 91001

$4.99

$

In Stock, only 2 left!

0

21

Snapper 7014432

SPRING, Lift Lever
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

22

Snapper 7015019

PLUG, Lift Lever Nylon
(Superseded to 7015019YP)

$

$

Not available

23

Snapper 7090881

PIN, 3/16 x 2" Groove
(Superseded to 7090881YP)

$12.99

$

Usually ships in 2-12 days

0

24

Snapper 7017445

DECAL, Cut Height
(Superseded to 7017445YP)

$5.49

$

Usually ships in 2-12 days

0
