LT 125G411KVE (80234) - Snapper 41" Lawn Tractor, 12.5hp 41" Cutting Deck Parts Diagram

41" Lawn Tractor, 12.5hp

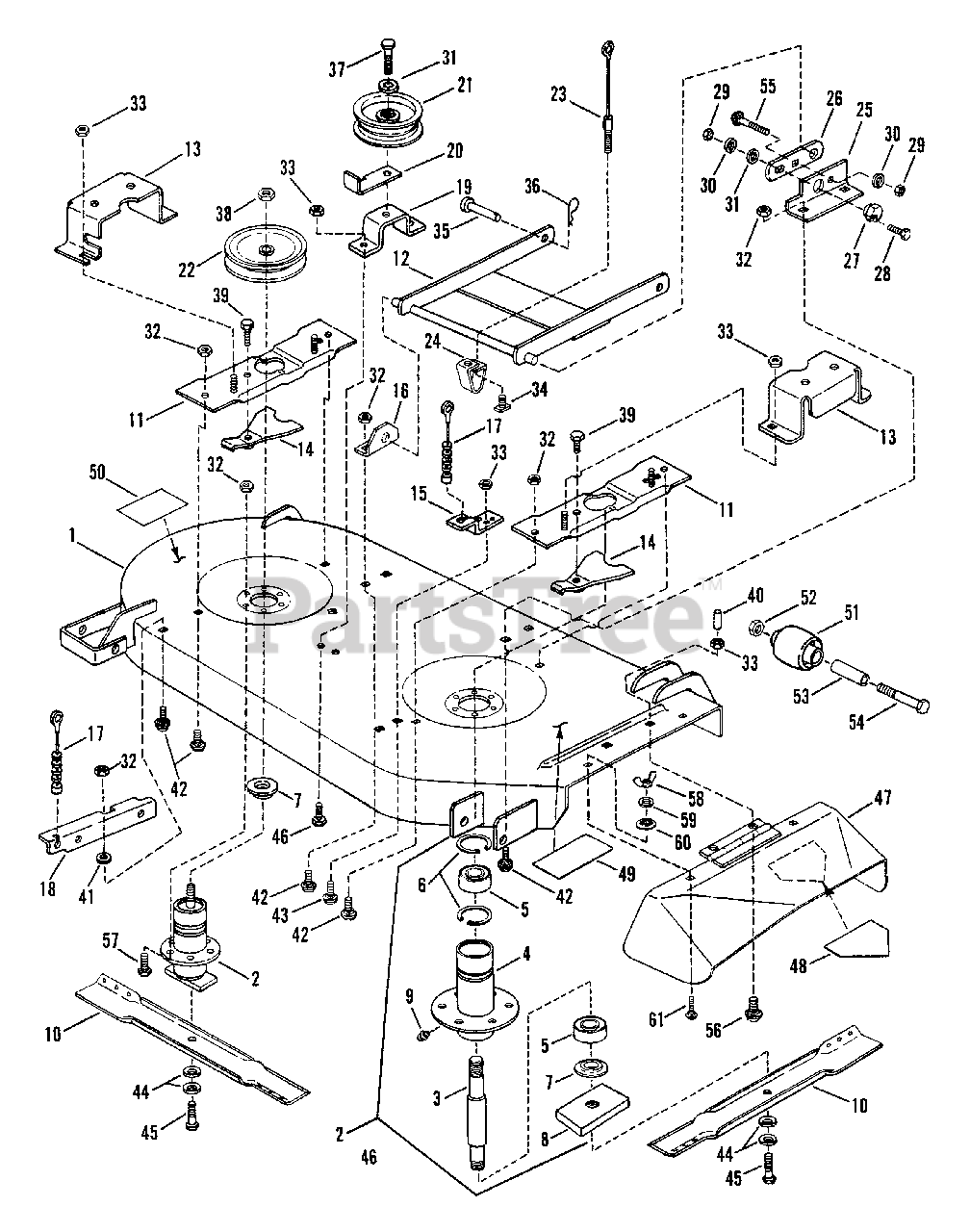

41" Cutting Deck Parts Diagram

  • Title

1

Snapper 7051916

DECK, Mower, 41"

Note: (Includes items 49 & 50)

$

$

Not available

2

Snapper 7051914

ASSEMBLY, Spindle

Note: (Includes items 3 thru 9)

$

$

Not available

3

Snapper 7027668

SPINDLE 6.5"
(Superseded to 7027668YP)

$46.99

$

In Stock, only 1 left!

0

4

Snapper 7051918

HOUSING, Spindle
(Superseded to 7051918YP)

Note: (Includes item 9)

$

$

Not available

5

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

8

Snapper 7032294

HOLDER, Blade
(Superseded to 7032294YP)

$

$

Not available

9

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7019795

BLADE, 21" Cutter
(Superseded to 7019795BZYP)

$28.99

$

In Stock, Qty 20+

0

11

Snapper 7052487

ASSEMBLY, Rear Support
(Superseded to 7052487YP)

$63.99

$

Usually ships in 2-12 days

0

12

Snapper 7042469

ASSEMBLY, Front Hanger
(Superseded to 7042469YP)

Note: Was 49762

$276.99

$

Usually ships in 2-12 days

0

13

Snapper 7034409

GUARD, Pulley
(Superseded to 7034409YP)

Note: Was 33367

$26.99

$

Usually ships in 2-12 days

0

14

Snapper 7051747

ASSEMBLY, Spindle Lock
(Superseded to 7051747YP)

$23.99

$

In Stock, only 1 left!

0

15

Snapper 7033083

ASSEMBLY, Chain Support
(Superseded to 7033083YP)

$21.99

$

Usually ships in 2-12 days

0

16

Snapper 7032297

BRACKET, Front Left Hanger

$

$

Not available

17

Snapper 7016844

CABLE, Support 4.25", 8 Spacers
(Superseded to 7016844YP)

$11.99

$

Usually ships in 2-12 days

0

18

Snapper 7033086

ASSEMBLY, Rear Support
(Superseded to 7033086YP)

$23.99

$

Usually ships in 2-12 days

0

19

Snapper 7051748

BRACKET, Idler Mount
(Superseded to 7051748YP)

$49.99

$

Usually ships in 2-12 days

0

20

Snapper 7032368

GUIDE, Belt

$

$

Not available

21

Snapper 7018574

PULLEY, Idler
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

22

Snapper 7015724

PULLEY, Spindle

$

$

Not available

23

Snapper 7023180

CABLE, Front Lift 6.12"
(Superseded to 7023180YP)

$

$

Not available

24

Snapper 7038043

BRACKET, Front Lift Arm Hanger
(Superseded to 7038043YP)

$31.99

$

Usually ships in 2-12 days

0

25

Snapper 7038382

BRACKET, Front Right

$

$

Not available

26

Snapper 7032432

LINK, Adjustment

$

$

Not available

27

Snapper 7015012

RING, Adjustment
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

29

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

31

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

33

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7090388

T-NUT, 5/16-18
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0

35

Snapper 7012951

PIN, 1/2 x 1 3/8" Clevis

$

$

Not available

36

Snapper 7091596

HAIRPIN, Cotter
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

37

Snapper 7091497

SCREW, 3/8-16 x 1 1/2" Hex Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

38

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

39

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 3 left!

0

40

Snapper 7023606

CAP, Vinyl
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

41

Snapper 7090517

WASHER, 7/16 Flat
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

42

Snapper 7091547

BOLT, 3/8-16 x 3/4" Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

43

Snapper 7091508

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703185)

Note: Was 90788

$3.49

$

In Stock, Qty 20+

0

44

Snapper 7012063

WASHER, 13/32 x 1 13/32" Dia., Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

45

Snapper 7090824

SCREW, 3/8-24 x 1 1/4" Hex Cap
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

46

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

47

Snapper 7051401

DEFLECTOR, Side Chute
(Superseded to 7051401YP)

Note: (Includes item 48)

$159.99

$

Usually ships in 2-12 days

0

48

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

49

Snapper 7014852

DECAL, Caution (Deflector in Place)
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

50

Snapper 7014852

DECAL, Caution (Rotating Blades)
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, only 3 left!

0

51

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

52

Snapper 7090289

LOCKNUT, 3/8-24 Hex
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

53

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

54

Snapper 7091532

SCREW, 3/8-24 x 3 3/4" Hex Head Cap
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, Qty 10

0

55

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

56

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 12

0

57

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

58

Snapper 7090375

WING-NUT, 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

59

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

60

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

61

Snapper 7090799

BOLT, 5/16-18 x 5/8" Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

Snapper 7022992

DECAL (41 INCH) (LT125G41)
(Superseded to 7022992YP)

Note: Not Shown

$6.99

$

Usually ships in 2-12 days

0

Snapper 7060929

Complete Cutter Unit

$

$

Currently unavailable
