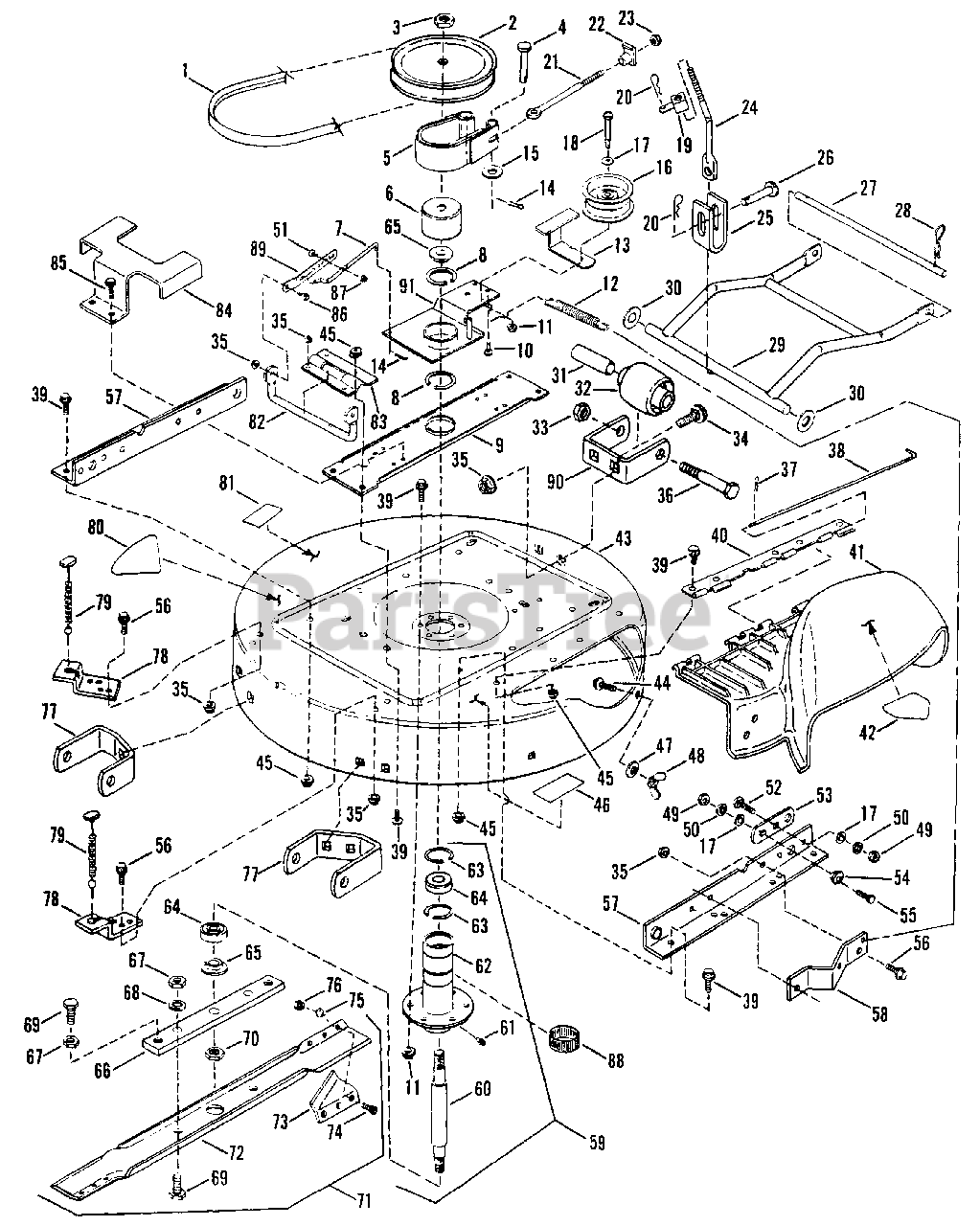

LT 125G33AB (80554) - Snapper 33" Lawn Tractor, 12.5hp 33" Cutting Deck, Belts, Brakes Parts Diagram

33" Lawn Tractor, 12.5hp

33" Cutting Deck, Belts, Brakes Parts Diagram

  • Title

1

Snapper 7075706

BELT, 33" Drive, 56.95" EL
(Superseded to 7075706YP)

Note: Was 26546

$46.99

$

In Stock, only 1 left!

0

2

Snapper 7026558

PULLEY, Spindle, 7" O.D.
(Superseded to 7026558YP)

$34.99

$

Usually ships in 2-12 days

0

3

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

4

Snapper 7014304

PIN, 1/4 x 1 1/4" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7052886

BAND, Brake
(Superseded to 7503086YP)

$35.99

$

In Stock, only 1 left!

0

6

Snapper 7032169

DRUM, Brake
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

7

Snapper 7024192

ROD, Link, Clutch/Brake
(Superseded to 7024192YP)

$10.99

$

Usually ships in 2-12 days

0

8

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

9

Snapper 7038018

BRACE, Spindle
(Superseded to 7038018AYP)

$23.99

$

Usually ships in 2-12 days

0

10

Snapper 7091541

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091585

NUT, 3/8-16 Hex Cntr. Lock
(Superseded to 703347)

Note: Was 90456

$4.99

$

In Stock, only 2 left!

0

12

Snapper 7028652

SPRING, Clutch & Brake
(Superseded to 7028652YP)

Note: Was 16153

$32.99

$

Usually ships in 2-12 days

0

13

Snapper 7075346

GUIDE, Belt
(Superseded to 7075346YP)

Note: Was 41487

$42.99

$

In Stock, only 1 left!

0

14

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7091294

WASHER, Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7075707

PULLEY, Idler 4.0" O.D. (Flat 3.25" Running Surface)
(Superseded to 7075707YP)

Note: Was 27717

$37.99

$

In Stock, only 1 left!

0

17

Snapper 7090122

WASHER, 3/8 SAE (3)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7091553

BOLT, 3/8-16 x 1 3/4" Hex Hd.
(Superseded to 704289)

Note: Was 90503

$4.99

$

In Stock, Qty 12

0

19

Snapper 7017516

SWIVEL, Brake
(Superseded to 7017516YP)

$23.99

$

Usually ships in 2-12 days

0

20

Snapper 7012431

PIN, 1/4 x 1 1/8" Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 7026677

BOLT, 1/4-20 Eye
(Superseded to 7026677YP)

$14.99

$

In Stock, only 2 left!

0

22

Snapper 7014303

NUT, 1/4-20 Tee
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

23

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7026639

ROD, Front Lift

$

$

Not available

25

Snapper 7033938

BRACKET, Front Lift Hanger
(Superseded to 7033938BMYP)

$23.99

$

Usually ships in 2-12 days

0

26

Snapper 7013460

PIN, 3/8 x 1 1/2" Clevis

$

$

Not available

27

Snapper 7027471

PIN, Front Deck Hanger

$

$

Not available

28

Snapper 7091596

PIN, .148 x 2.62" Hair
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7041613

LIFT, Front Arm
(Superseded to 7041613YP)

Note: Was 41495

$153.99

$

Usually ships in 2-12 days

0

30

Snapper 7032027

WASHER, Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

31

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

32

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

33

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

34

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage
(Superseded to 703798)

Note: Was 90004

$4.49

$

In Stock, only 2 left!

0

35

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

36

Snapper 7091532

SCREW, 3/8-24 x 3 3/4" Hex Head Cap
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, Qty 10

0

37

Snapper 7091503

PIN, Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7032323

PIN, Hinge
(Superseded to 7032323YP)

Note: Was 31914

$41.99

$

Usually ships in 2-12 days

0

39

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

40

Snapper 7039586

HINGE, Deflector
(Superseded to 7039586YP)

$60.99

$

Usually ships in 2-12 days

0

41

Snapper 7052555

ASSEMBLY, Deflector
(Superseded to 7600147YP)

Note: (Includes item 42)

$122.99

$

In Stock, only 1 left!

0

42

Snapper 7013010

DECAL, Danger (Cut Finger)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

43

Snapper 7053180

DECK, Cutting, 33"

Note: (Includes items 46 & 81)

$

$

Currently unavailable

44

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

45

Snapper 7091619

NUT, 3/8-16 Hex Flng. Lk.
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

46

Snapper 7014852

DECAL - CAUTION (Deflector)
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

47

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

48

Snapper 7091537

WING-NUT. 5/16-18
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

49

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

50

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

51

Snapper 7090584

BOLT, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

52

Snapper 7091547

BOLT, 3/8-16 x 3/4" Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

53

Snapper 7032432

LINK, Adjustment

$

$

Not available

54

Snapper 7015012

ECCENTRIC, Leveling
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

55

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

56

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

57

Snapper 7038453

RAIL, Side
(Superseded to 7038453YP)

$29.99

$

Usually ships in 2-12 days

0

58

Snapper 7033952

ANCHOR, Brake
(Superseded to 7033952YP)

$29.99

$

Usually ships in 2-12 days

0

59

Snapper 7052917

ASSEMBLY, Spindle
(Superseded to 7052917AYP)

Note: (Includes items 60-70)

$

$

Not available

60

Snapper 7024687

SPINDLE
(Superseded to 7024687YP)

$35.99

$

Usually ships in 2-12 days

0

61

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

62

Snapper 7052294

HOUSING, Spindle
(Superseded to 7052294YP)

Note: (Includes item 61)

$179.99

$

In Stock, only 2 left!

0

63

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

64

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

65

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

66

Snapper 7037751

HOLDER, Blade
(Superseded to 7037751BMYP)

$45.99

$

Usually ships in 2-12 days

0

67

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

Note: (2 in assembly)

$3.49

$

In Stock, Qty 20+

0

68

Snapper 7090509

WASHER, 1/2 Int. Tooth Lk.
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

69

Snapper 7090392

SCREW, 1/2-20 Hex Head Cap
(Superseded to 703880)

Note: (2 in assembly)

$4.49

$

In Stock, Qty 20+

0

70

Snapper 7090356

NUT, 5/8-18 Hex Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

71

Snapper 7019523

ASSEMBLY, Blade & Air Lift
(Superseded to 7019523BZYP)

Note: Was 57482 (Includes 72 thru 76)

$36.99

$

In Stock, Qty 20+

0

72

Snapper 7019523

BLADE, 33" Mower Deck
(Superseded to 7019523BZYP)

$36.99

$

In Stock, Qty 20+

0

73

Snapper 7037723

AIR-LIFT
(Superseded to 7037723BMYP)

$

$

Not available

74

Snapper 7090228

SCREW, 5/16-24 x 11/16" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

75

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

76

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

77

Snapper 7033571

BRACKET, Gage Wheel Rear
(Superseded to 7033571BMYP)

Note: Was 38450

$14.99

$

In Stock, only 4 left!

0

78

Snapper 7033115

BRACKET, Rear Lift
(Superseded to 7033115YP)

$10.99

$

Usually ships in 2-12 days

0

79

Snapper 7027430

CABLE, Deck Lift, Rear
(Superseded to 7027430YP)

Note: Was 24387

$10.99

$

In Stock, only 1 left!

0

80

Snapper 7022991

DECAL, 33" Hi-Vac
(Superseded to 7022991YP)

$

$

Not available

81

Snapper 7014852

DECAL - CAUTION
(Superseded to 7101665YP)

Note: Was 16973 (Rotating Blades)

$14.99

$

In Stock, Qty 5

0

82

Snapper 7024183

ARM, Pivot
(Superseded to 7024183YP)

$19.99

$

Usually ships in 2-12 days

0

83

Snapper 7033578

BRACKET, Pivot Arm
(Superseded to 7033578YP)

$28.99

$

Usually ships in 2-12 days

0

84

Snapper 7033926

GUIDE, Belt
(Superseded to 7033926YP)

$48.99

$

Usually ships in 2-12 days

0

85

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

86

Snapper 7015761

SCREW, 5/16-18 x 3/4" Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

87

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

88

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

89

Snapper 7033586

BRACKET, Link, Clutch/Brake

$

$

Not available

90

Snapper 7033571

BRACKET, Gage Wheel (Front)
(Superseded to 7033571BMYP)

Note: Was 38451

$14.99

$

In Stock, only 4 left!

0

91

Snapper 7041311

ARM, Idler

$

$

Not available
