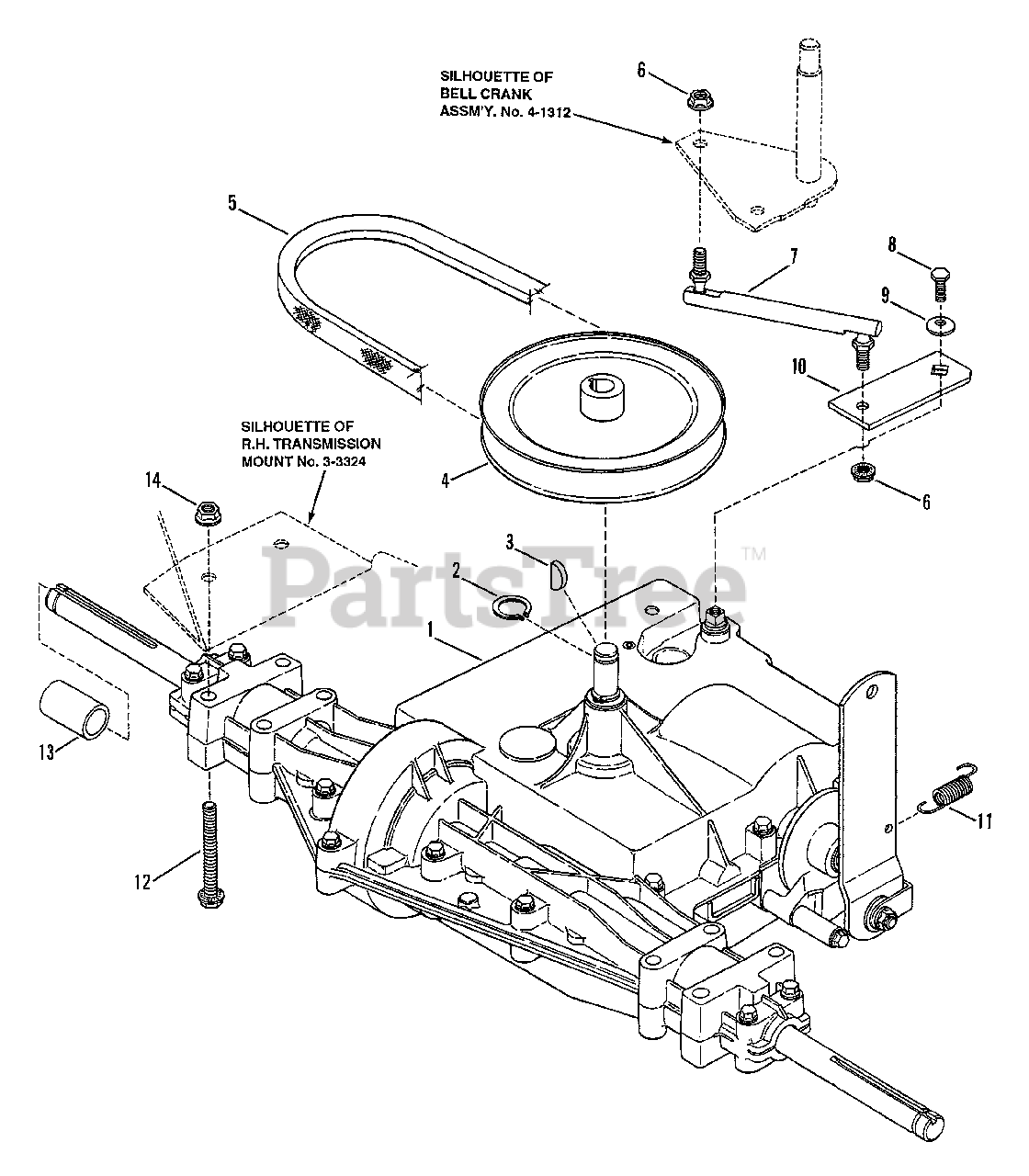

LT 125G331KVE (80233) - Snapper 33" Lawn Tractor, 12.5hp Transmission Group Parts Diagram

33" Lawn Tractor, 12.5hp

Transmission Group Parts Diagram

  • Title

1

Snapper 7022434

TRANSAXLE ASSEMBLY (Peerless 930 - 6 speed)

$

$

Not available

2

Snapper 7012763

RING, Retaining
(Superseded to 7012763SM)

$4.49

$

In Stock, Qty 8

0

3

Snapper 7010211

KEY, Woodruff, 3/16 x 3/4" No. 9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7022235

PULLEY, Input

$

$

Not available

5

Snapper 7022234

BELT, Drive HA109
(Superseded to 7022234YP)

$64.99

$

Usually ships in 2-12 days

0

6

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7022949

SHIFT LINK LEVER

$

$

Not available

8

Snapper 7091165

BOLT, 1/4-28 x 5/8" Hex Head
(Superseded to 7091165YP)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7090746

WASHER, Bellville
(Superseded to 7090746YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7033331

ARM, Shift Link Lever

$

$

Not available

11

Snapper 7022437

SPRING, Brake Return
(Superseded to 7022437YP)

$3.99

$

In Stock, only 1 left!

0

12

Snapper 7090702

BOLT, 5/16-18 x 2 1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7022221

SPACER, Wheel

$

$

Currently unavailable

14

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

33324

Snapper 7033324

TRANSMISSION MOUNT, R.H.
(Superseded to 7033324YP)

$101.99

$

Usually ships in 2-12 days

0

41312

Snapper 7041312

BELL CRANK ASSM'Y.
(Superseded to 7041312YP)

$80.99

$

Usually ships in 2-12 days

0
