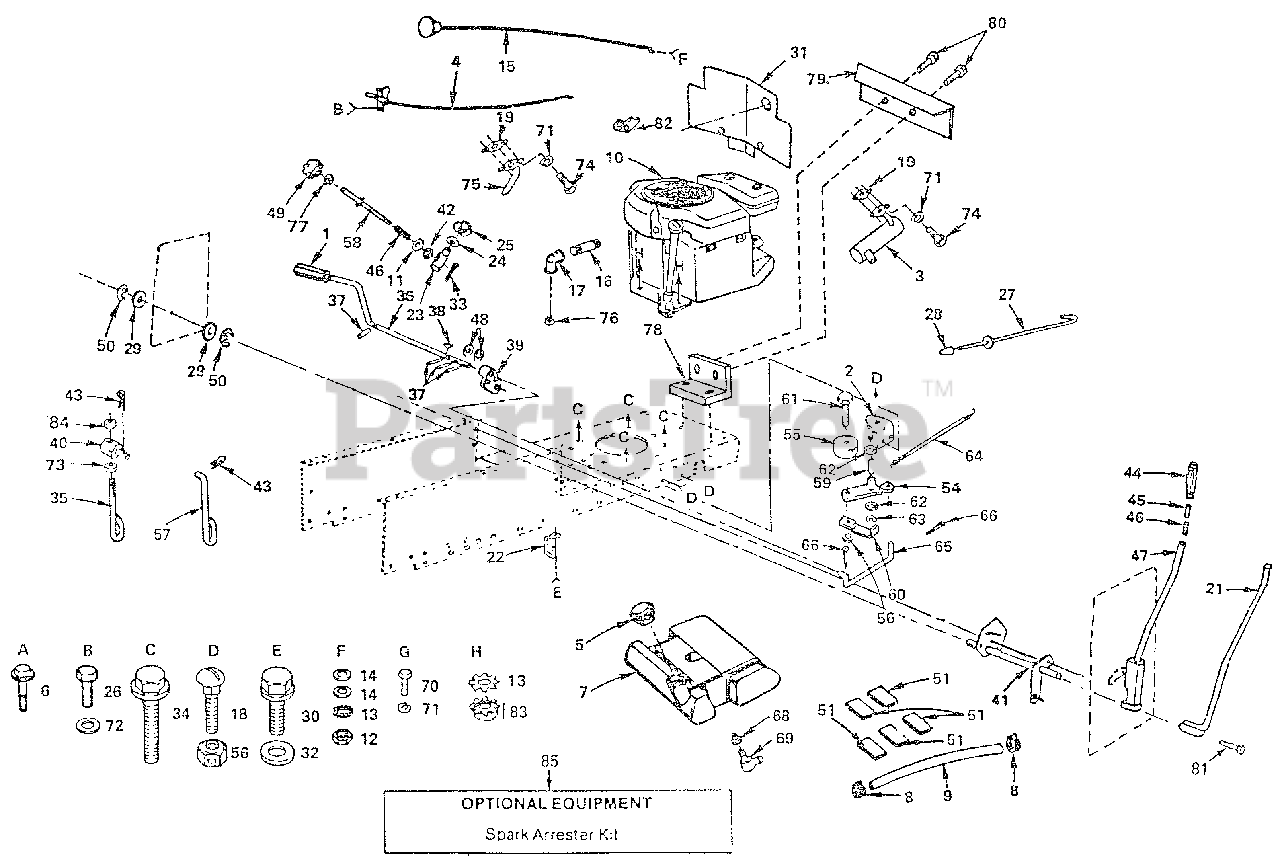

LT 125 (HVLT125AE) - Husqvarna Lawn Tractor (1990-01) Power & Mechanical Controls Group Parts Diagram

Lawn Tractor

Power & Mechanical Controls Group Parts Diagram

  • Title

1

Husqvarna 532124872

Pedal Cover
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

2

Husqvarna 532123102

Bracket Assembly - Clutch

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532125799

Muffler

$

$

Not available

4

Husqvarna 532124055

Control, Throttle/Choke
(Superseded to 532132752)

$

$

Not available

5

Husqvarna 532124462

Fuel-Cap Assembly

$

$

Not available

6

Husqvarna 817020806

Screw - Hex Hd. Thd. Cutting 8-32 x 3/8, Type T

$

$

Currently unavailable

7

Husqvarna 532106020

Tank-Fuel

$

$

Not available

8

Husqvarna 532123487

Hose Clamp

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532005277

Fuel Line
(Superseded to 532008542)

$

$

Not available

10

Husqvarna 532400707

Engine 14 HP, Type No. 1211-01

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 819131316

Washer 13/32 x 5/8 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 813280336

Std. Pipe Nipple

$

$

Not available

17

Husqvarna 813200300

90 Elbow 3/8 NPT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

18

Husqvarna 872140606

Bolt Rd. Hd Sq. Neck 3/8 16 x 3/4

$

$

Not available

19

Husqvarna 532008545

Gasket, Muffler

$

$

Not available

21

Husqvarna 532121006

Rod Assembly - Lever

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532104777

Retainer. Belt, Chassis, L.H.
(Superseded to 532136715)

$

$

Not available

23

Husqvarna 532110810

Trunnion - Stop, Depth

$

$

Not available

24

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

25

Husqvarna 812000037

Klip Ring

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 817720410

Screw- Hex Washer Hd Thd. Cutting 1/4-20 x 1/2
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 532105844

Rod- Brake, Park

$

$

Not available

28

Husqvarna 532071673

Plunger Cap

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga

$7.99

$

Usually ships in 3-10 days

0

30

Husqvarna 817490612

Screw - Hex Washer Thd Rolling 3/8- 1 6 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

31

Husqvarna 532104917

Baffle Vertical

$

$

Not available

32

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 876020308

Cotter Pin 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

34

Husqvarna 532125005

Screw - Hex Washer Hd. Thd. Rolling 3/8-16 x 1 1/4 Type TT
(Superseded to 747810100)

$

$

Not available

35

Husqvarna 532110448

Lift Link - Adjustable

$7.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532122424

Shaft Pedal Foot

$

$

Not available

37

Husqvarna 532001572

Roll Pin 3/16 x 1

$4.99

$

In Stock, Qty 7

0

39

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 3 left!

0

40

Husqvarna 532110447

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

41

Husqvarna 532124516

Shaft Assembly- Lift

$

$

Not available

42

Husqvarna 532110807

Nut - Hex Special

$

$

Not available

43

Husqvarna 532124670

Retainer Spring

$

$

Not available

44

Husqvarna 532109413

Grip- Handle

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532122364

Plunger- Lever, Hand
(Superseded to 532125925)

$

$

Not available

45

Husqvarna 532124526

Button - Plunger
(Superseded to 532125925)

$

$

Not available

46

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532121002

Lever Assembly, Hand Kit
(Superseded to 532123096)

Note: (Include Key No. 21)

$

$

Not available

48

Husqvarna 819211616

Washer 21/32 x 1 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532121891

Handle - Adjust, Lift

$

$

Not available

50

Husqvarna 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532006431

Pad-Spacer

$

$

Not available

54

Husqvarna 532123789

Bellcrank Assembly

$

$

Not available

55

Husqvarna 532123766

Pulley - Idler
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

56

Husqvarna 873680600

Locknut 3/8 - 16

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532110029

Link - Lift

$

$

Not available

58

Husqvarna 532110729

Rod-Adjust, Lift

$

$

Not available

59

Husqvarna 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532123205

Retainer Belt

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 874760624

Bolt - Hex 3/8 - 16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532110812

Washer- Hardened

$

$

Not available

63

Husqvarna 812000039

Ring- Klip

$6.49

$

In Stock, Qty 7

0

64

Husqvarna 532105709

Spring- Return, Clutch

$11.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532105710

Link- Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

66

Husqvarna 876020412

Pin- Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

68

Husqvarna 532003645

Bushing

$4.99

$

In Stock, only 2 left!

0

69

Husqvarna 532008710

Stem-Tank, Fuel

$

$

Not available

70

Husqvarna 874780408

Bolt - Hex 1/4 - 20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 810040400

Lockwasher 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

73

Husqvarna 873360700

Nut Hex Jam 7/16 - 20
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

74

Husqvarna 874780412

Bolt - Hex 1/4 - 20 x 1/4
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 532100229

Tube Assembly - Exhaust

$

$

Not available

76

Husqvarna 532091084

Plug - Oil Drain

$

$

Currently unavailable

77

Husqvarna 873350600

Nut - Hex Jam 3/8 - 16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

78

Husqvarna 532110013

Bracket - Heat Shield

$

$

Not available

79

Husqvarna 532110012

Heat Shield

$

$

Not available

80

Husqvarna 817490508

Bolt - Hex Thread Cutting 5/16 - 18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 874780624

Bolt,Hex Hd. 3/8 - 16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532005320

Clip, Insulated

$5.99

$

Usually ships in 3-10 days

0

83

Husqvarna 873510600

Nut,Keps 3/8 - 16

$6.49

$

Usually ships in 3-10 days

0

84

Husqvarna 873710700

Nut,Crownlock 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

85

Husqvarna 532124803

Spark Arrestor Kit
(Superseded to 532674380)

$

$

Not available
