LT 125 (HVLT125AE) - Husqvarna Lawn Tractor (1990-01) Mower Parts Diagram

Lawn Tractor

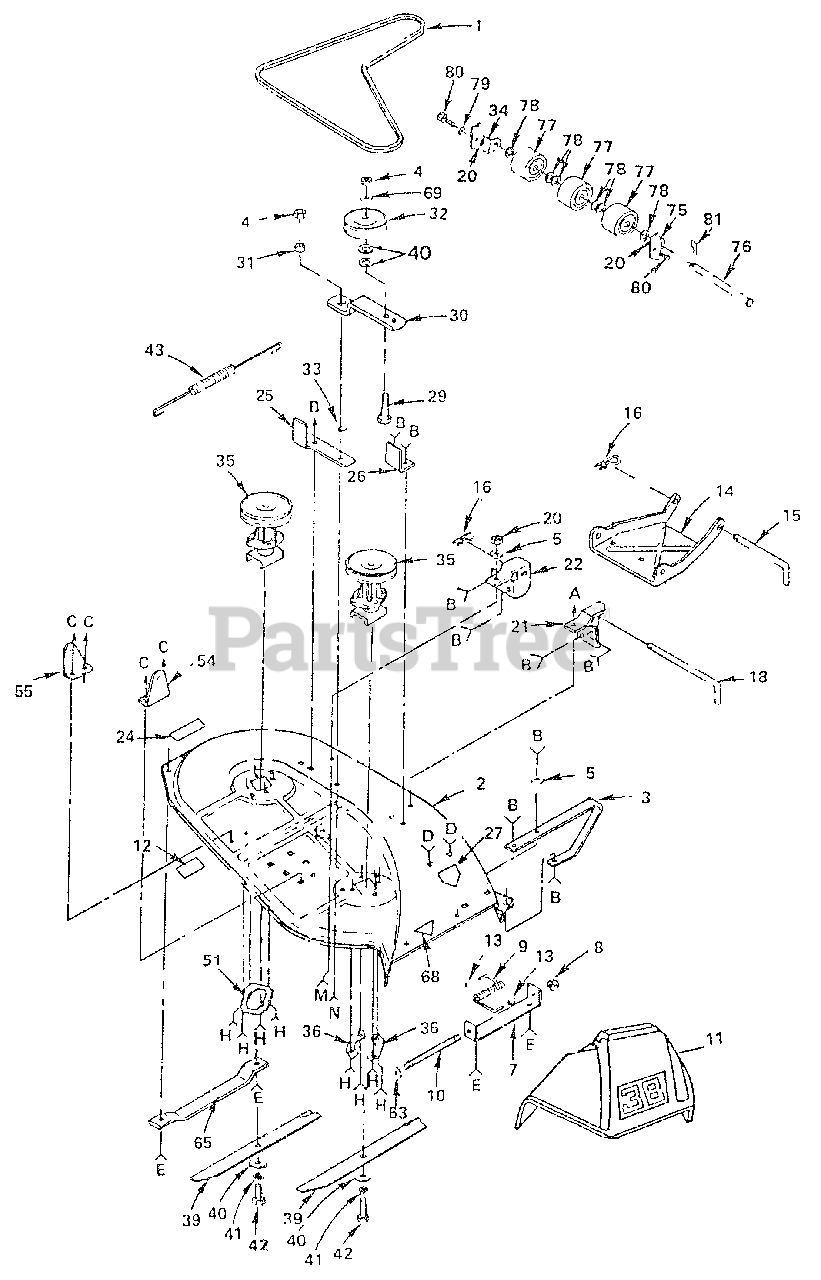

Mower Parts Diagram

  • Title

1

Husqvarna 532106085

V-Belt

$43.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532121259

Housing Assembly - Mower
(Superseded to 532144725)

$

$

Not available

3

Husqvarna 532008417

Runner - R.H.
(Superseded to 532128772)

$

$

Not available

4

Husqvarna 873680600

Nut - Lock, 3/8-16

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 819111216

Washer - 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 18

0

7

Husqvarna 532105896

Bracket - Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 532110452

Nut

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532106734

Spring - Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

10

Husqvarna 532106735

Rod - Hinge

$10.99

$

In Stock, only 1 left!

0

11

Husqvarna 532106736

Deflector- Shield

$

$

Not available

12

Husqvarna 532105814

Decal - V-Belt Schematic

$

$

Not available

13

Husqvarna 532105304

Cap

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532105662

Link - Parallel

$

$

Not available

15

Husqvarna 532105744

Pin - Hinge,Front

$

$

Not available

16

Husqvarna 532004921

Spring - Retainer

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532109835

Pin - Hinge, Rear

$

$

Not available

20

Husqvarna 873680500

Nut - Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532109598

Bracket - Lift, R.H.

$

$

Not available

22

Husqvarna 532109597

Bracket - Lift, L.H.

$

$

Not available

24

Husqvarna 532109820

Instruction - Caution Decal

$

$

Not available

25

Husqvarna 532109503

Support-Arm

$

$

Not available

26

Husqvarna 532109504

Stop - Deck, Front

$

$

Not available

27

Husqvarna 532126192

Decal - Safety Standard (Model YT140CR)

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 874760632

Bolt - 3/8-16 x 2
(Superseded to 874930632)

$6.99

$

In Stock, only 2 left!

0

30

Husqvarna 532123552

Arm - Idler

$

$

Not available

31

Husqvarna 532106902

Spacer

$2.99

$

In Stock, only 2 left!

0

32

Husqvarna 532121316

Pulley - Idler

$51.99

$

In Stock, only 4 left!

0

33

Husqvarna 532106513

Washer-Wear, 1/16

$6.99

$

In Stock, only 4 left!

0

34

Husqvarna 532109646

Bracket - Nose Roller, L.H.

$

$

Not available

35

Husqvarna 532121687

Mandrel Assembly

$

$

Not available

36

Husqvarna 532100668

Plate - Support, Mandrel

$

$

Not available

39

Husqvarna 532121263

Blade - 38"
(Superseded to 532143978)

$28.99

$

Usually ships in 3-10 days

0

40

Husqvarna 819132012

Washer- 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 810030600

Washer - Lock, 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 874610624

Bolt - Hex 3/8-24 x 1-1/2 Gr.5

$6.49

$

In Stock, only 1 left!

0

43

Husqvarna 532108250

Spring - Ext.

$

$

Not available

51

Husqvarna 532110445

Plate - Support

$10.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532105857

Bracket - Suspension., Rear, R.H.

$

$

Not available

55

Husqvarna 532108673

Bracket - Suspension., Rear, L.H.

$

$

Not available

63

Husqvarna 819111016

Washer-11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532125074

Runner- L.H.
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532121349

Decal - Warning

$2.99

$

Usually ships in 3-10 days

0

69

Husqvarna 819131316

Washer- 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

75

Husqvarna 532109647

Bracket - Nose Roller, R.H.

$

$

Not available

76

Husqvarna 532109776

Pin - Pivot

$8.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532109729

Roller- Nose

$

$

Not available

78

Husqvarna 819151610

Washer -15/32 x 1 x 10 Ga.
(Superseded to 734117801)

$

$

Not available

79

Husqvarna 819151616

Washer -15/32 x 1 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

80

Husqvarna 874760512

Bolt - Hex 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 876020412

Cotter Pin - 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0
