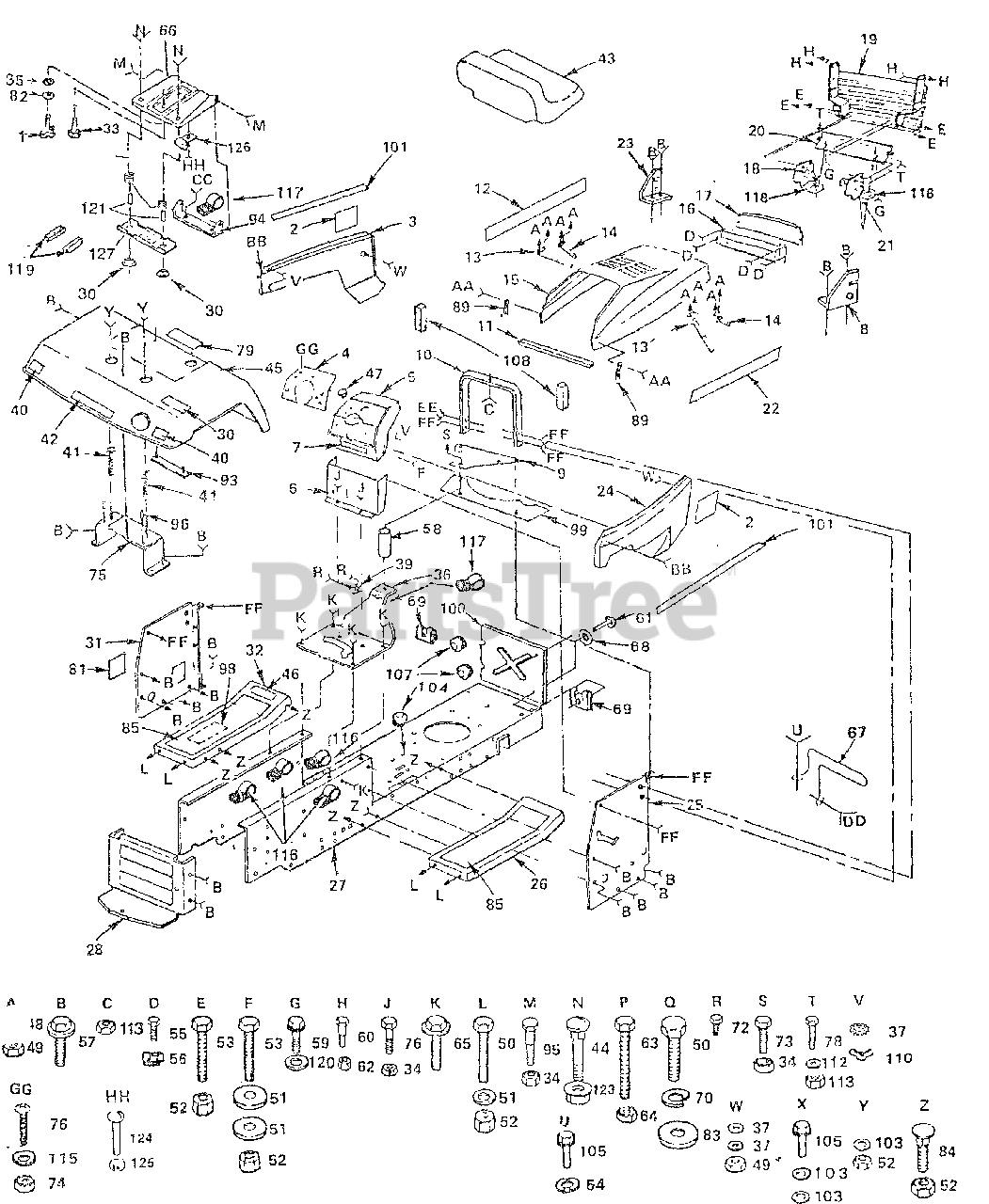

LT 125 (HVLT125AE) - Husqvarna Lawn Tractor (1990-01) Enclosures Parts Diagram

Lawn Tractor

Enclosures Parts Diagram

  • Title

1

Husqvarna 532120068

Adjustment Knob
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

2

Husqvarna 532126035

Decal - Side Panel

$

$

Not available

2a

Husqvarna 532125586

Decal - Side Panel, RH

$

$

Not available

3

Husqvarna 532124845

Panel - Side, L.H.

$

$

Currently unavailable

4

Husqvarna 532124721

Dash Plate

$

$

Not available

5

Husqvarna 532124182

Dashboard
(Superseded to 532140452)

$

$

Not available

6

Husqvarna 532124846

Dash Assembly - Lower

$

$

Currently unavailable

7

Husqvarna 532109821

Decal - Instruction

$

$

Not available

8

Husqvarna 532110853

Bracket Assembly R.H.

$

$

Not available

9

Husqvarna 532106965

Plate - Support, Battery

$

$

Not available

10

Husqvarna 532124130

Support Assembly - Dash

$

$

Not available

11

Husqvarna 532121251

Foam Strip

$

$

Not available

12

Husqvarna 532124297

Decal - Hood, L.H.

$

$

Not available

13

Husqvarna 532106784

Strap Assembly - Hinge, Rear

$

$

Not available

14

Husqvarna 532104618

Strap Assembly - Hinge, Front

$

$

Not available

15

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

16

Husqvarna 532104613

Bezel Assembly
(Superseded to 532124392)

$

$

Not available

17

Husqvarna 532106395

Lens

$

$

Not available

18

Husqvarna 532110855

Support- Grill, L.H.

$

$

Not available

19

Husqvarna 532126689

Grill Assembly
(Superseded to 532157236)

$

$

Not available

20

Husqvarna 532105419

Strap - Grill

$

$

Not available

21

Husqvarna 532110854

Support - Grill, R.H.

$

$

Not available

22

Husqvarna 532124298

Decal - Hood, R.H.

$

$

Not available

23

Husqvarna 532110852

Bracket Assembly L.H.

$

$

Not available

24

Husqvarna 532124847

Panel - Side, R.H.

$

$

Currently unavailable

25

Husqvarna 532110828

Panel - Dash, R.H.

$

$

Not available

26

Husqvarna 532105464

Footrest-R.H.
(Superseded to 532145243)

$

$

Not available

27

Husqvarna 532121277

Chassis

$

$

Not available

28

Husqvarna 532121306

Drawbar
(Superseded to 532145009)

$

$

Not available

30

Husqvarna 532121248

Bushing Snap

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532124850

Panel - Dash, L.H.

$

$

Currently unavailable

32

Husqvarna 532105465

Footrest-L H
(Superseded to 532147203)

$

$

Not available

33

Husqvarna 532121144

Shoulder Bolt
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 873680500

Locknut - Gripco, 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 819151616

Washer 15/32 x 1 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

36

Husqvarna 532124848

Saddle

$

$

Currently unavailable

37

Husqvarna 811030400

Lock Washer 1/4 Int./Ext.
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

39

Husqvarna 532124720

Bushing - Steering
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

40

Husqvarna 532106202

Reflector - Tail light

$

$

Not available

41

Husqvarna 532124181

Spring - Compression
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

42

Husqvarna 532125584

Decal-Fender

$

$

Not available

43

Husqvarna 532124186

Seat
(Superseded to 532401043)

$

$

Not available

44

Husqvarna 872170410

Bolt, Roundhead 1/4 - 20 x 1 1/4

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532124749

Fender

$

$

Not available

46

Husqvarna 532126677

Decal - Clutch/Brake

$

$

Not available

47

Husqvarna 532005479

Plug - Button

$5.99

$

Usually ships in 3-10 days

0

48

Husqvarna 810090400

Washer- Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

49

Husqvarna 873490400

Wing Nut 1/4 -20
(Superseded to 532146525)

$

$

Not available

50

Husqvarna 874760612

Bolt - Hex 3/8 -16 x 3/4

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873680600

Nut - Crownlock 3/8 - 16

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 874760616

Bolt- Hex 3/8 - 16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 819131616

Washer 13/32 X 1 X 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 817211010

Screw - Hex Washer Hd. Tapping 10 - 16 x 5/8

$

$

Not available

56

Husqvarna 532104755

"J" Fastener

$

$

Not available

57

Husqvarna 817490612

Screw - Hex Washer Hd. Thd. Rolling 3/8 - 16 x 3/4 Type TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Husqvarna 532121236

Spacer

$

$

Not available

59

Husqvarna 817490512

Screw - Hex Washer Hd. Thd. Rolling 5/16-18 x 3/4 Type TT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 532124815

Bolt - Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532105751

Stud 1/4 Turn

$

$

Not available

62

Husqvarna 873680400

Nut - Crownlock 1/4 - 20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

63

Husqvarna 874760620

Bolt- Hex 3/8 - 16 x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

64

Husqvarna 873510600

Nut - Keps 3/8-16

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 817490608

Screw - Hex Washer Hd. Thd. Forming -318 -16 x 1/2 Type TT

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532124849

Pan - Seat

$

$

Currently unavailable

67

Husqvarna 532108885

Muffler Guard

$

$

Not available

68

Husqvarna 532105838

Retainer- 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532105839

Receptacle - 1/4 Turn

$3.99

$

In Stock, only 1 left!

0

70

Husqvarna 810040600

Washer -Lock,3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

72

Husqvarna 817431008

Screw - Hex Head Self Tapping, No. 10 -16 x 1/2 Type B
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874760532

Bolt-Hex 5/16-18 x 2 Gr 2

$2.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873510500

Nut - Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532105509

Bracket Assembly - Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874180512

Screw - Mach. 5/16-18 x 3/4

$

$

Not available

78

Husqvarna 817190412

Screw-Hex Washer Hd. 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

79

Husqvarna 532120822

Decal - OPEI, Caution

$

$

Not available

81

Husqvarna 532121794

Cover-Access

$

$

Not available

82

Husqvarna 819171720

Washer- 17/32 x 1-1/16 x 20 Ga.

$

$

Currently unavailable

83

Husqvarna 819131212

Washer 13/32 x 3/4 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

84

Husqvarna 872140606

Bolt - Carriage 3/8 - 16 x 3/4

$

$

Not available

85

Husqvarna 532121251

Pad - Footrest

$

$

Not available

89

Husqvarna 532109808

Latch - Hood

$6.99

$

In Stock, Qty 14

0

93

Husqvarna 532105511

Strap Assembly - Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532105513

Bracket - Pivot, Seat
(Superseded to 532126656)

$

$

Not available

96

Husqvarna 532105529

Bolt - Shoulder 5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

95

Husqvarna 532105531

Nut - Push

$2.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532109199

Decal - V-Belt Drive, Schematic, Tractor

$

$

Not available

99

Husqvarna 532109740

Baffle-Rear, Upper

$

$

Not available

100

Husqvarna 532108105

Battle-Rear, Lower

$

$

Not available

101

Husqvarna 532121589

Decal-Strip

$

$

Not available

103

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

104

Husqvarna 532124934

Grommet

$

$

Not available

105

Husqvarna 817490616

Screw - Hex Washer Hd., Thd. Rolling 3/8 - 1 6 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

106

Husqvarna 810040400

Washer-Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

107

Husqvarna 532110436

Grommet
(Superseded to 532009151)

$

$

Not available

108

Husqvarna 532121251

Foam Strip

$

$

Not available

109

Husqvarna 811050400

Lock Washer 1/4 Int. Ext.
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

100

Husqvarna 873490400

Wing Nut 1/4-20
(Superseded to 532146525)

$

$

Not available

112

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga

$

$

Not available

113

Husqvarna 873220400

Nut - Hex 1/4 - 20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

115

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532005320

Clip - Insulated

$5.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532124966

Clip - Insulated
(Superseded to 532002751)

$

$

Not available

118

Husqvarna 819111212

Washer- 11/32 x 3/4 x 12 Ga

$8.99

$

Usually ships in 3-10 days

0

119

Husqvarna 532121251

Foam Strip

$

$

Not available

120

Husqvarna 819111216

Washer - 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

121

Husqvarna 532121249

Spacer Split - 0.28 x 0.88

$6.49

$

In Stock, only 2 left!

0

122

Husqvarna 532121250

Spring - Compression

$7.49

$

Usually ships in 3-10 days

0

123

Husqvarna 532123976

Nut- Hex, Flanged 1/4-20 UNC
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

124

Husqvarna 874641008

Screw - Slotted Pan Head, #10-32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

125

Husqvarna 873951000

Nut -Keps,#10-32UNF

$5.99

$

Usually ships in 3-10 days

0

126

Husqvarna 532004171

Clip - Insulated
(Superseded to 532124967)

$

$

Not available

127

Husqvarna 532121246

Bracket-Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0
