LT 125 (954170033-B) - Husqvarna Lawn Tractor (2001-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

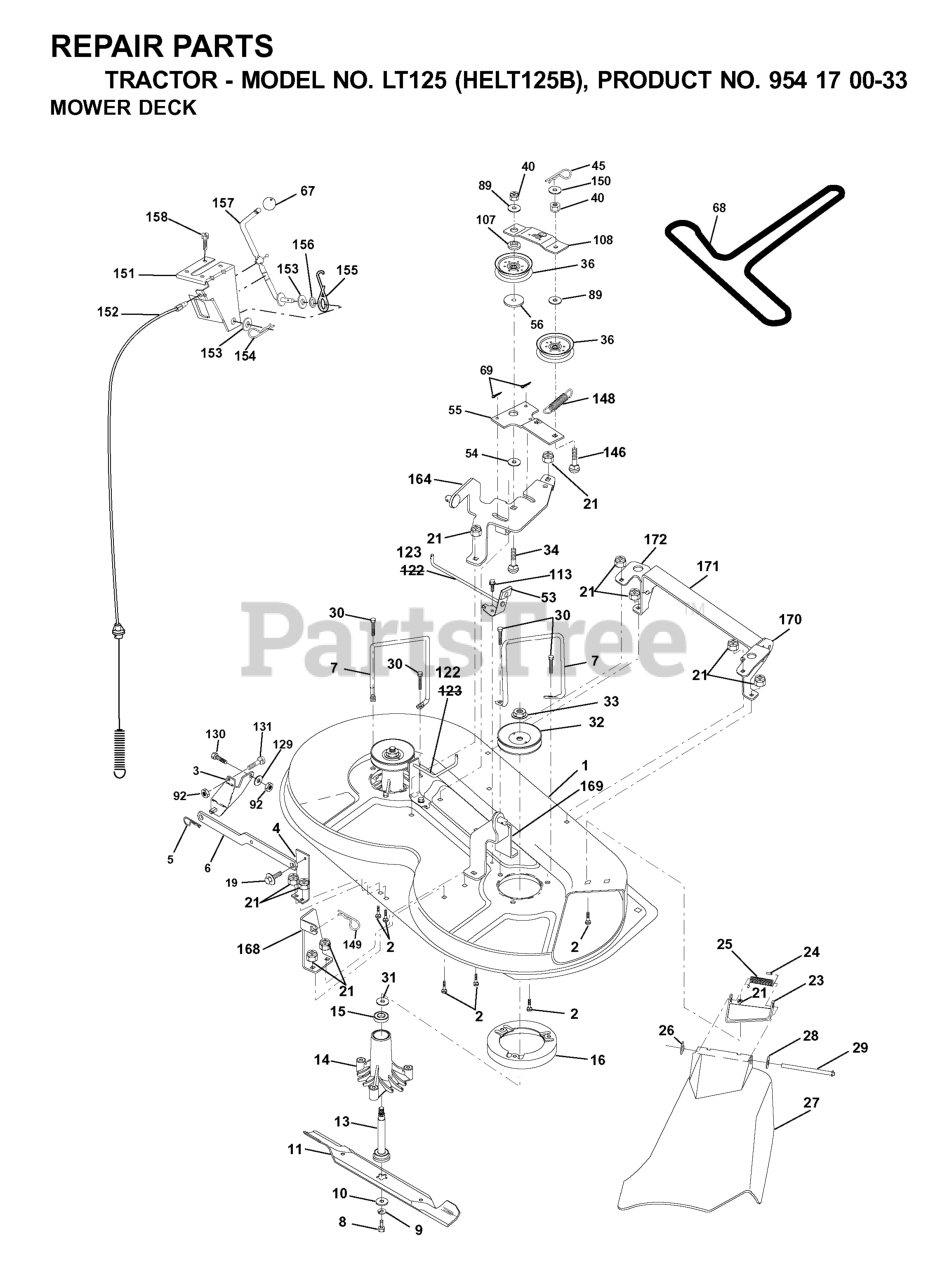

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

69

Husqvarna 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

131

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

168

Husqvarna 532172377

NEEDS DESCRIPTION

$

$

Not available

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

146

Husqvarna 532165891

BOLT, CARRIAGE IDLER
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

53

Husqvarna 532130840

BRAKE ASSEMBLY

$12.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

1

Husqvarna 532174595

NEEDS DESCRIPTION

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532174504

NEEDS DESCRIPTION

$

$

Not available

29

Husqvarna 532121980

HINGE ROD
(Superseded to 583383801)

$

$

Not available

155

Husqvarna 532169671

SPRING RETENTION LEVER

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532174978

NEEDS DESCRIPTION

$

$

Not available

89

Husqvarna 819131612

WASHER GT

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532138496

BLADE, HI-LIFT 36" PREMIUM

$26.99

$

Usually ships in 3-10 days

0

164

Husqvarna 532174976

NEEDS DESCRIPTION

$

$

Not available

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

54

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

108

Husqvarna 532133503

STIFFENER.IDLER.ARM

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

151

Husqvarna 532169670

BRACKET.CLUTCH.CABLE

$

$

Not available

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 6

0

169

Husqvarna 532174977

NEEDS DESCRIPTION

$

$

Not available

55

Husqvarna 532133840

IDLER ARM

$

$

Not available

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

171

Husqvarna 532165237

BRACE.SUPT.SUSP.FRT.CRD
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

23

Husqvarna 532136631

BRACKET ASM DEFLECTOR

$

$

Not available

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 532140608

KEEPER LH

$27.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532172359

NEEDS DESCRIPTION

$

$

Not available

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

123

Husqvarna 532174505

NEEDS DESCRIPTION

$

$

Not available

- -

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$56.99

$

In Stock, only 4 left!

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

27

Husqvarna 532176162

CONSOLE.STLT.5SP.BLK

$8.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532176079

NEEDS DESCRIPTION

$

$

Not available

130

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

154

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

150

Husqvarna 819091216

WASHER PM

$

$

Not available

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

4

Husqvarna 532175654

NEEDS DESCRIPTION

$

$

Not available

172

Husqvarna 532172355

NEEDS DESCRIPTION

$

$

Not available

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532175254

NEEDS DESCRIPTION

$

$

Not available

157

Husqvarna 532169669

ROD CLUTCH CABLE 3/8"

$

$

Not available

113

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

107

Husqvarna 532133502

SPACER.IDLER.ARM

$6.49

$

In Stock, only 1 left!

0

156

Husqvarna 532169672

SPACER.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

153

Husqvarna 532169674

WASHER FLAT 3/8"
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0
