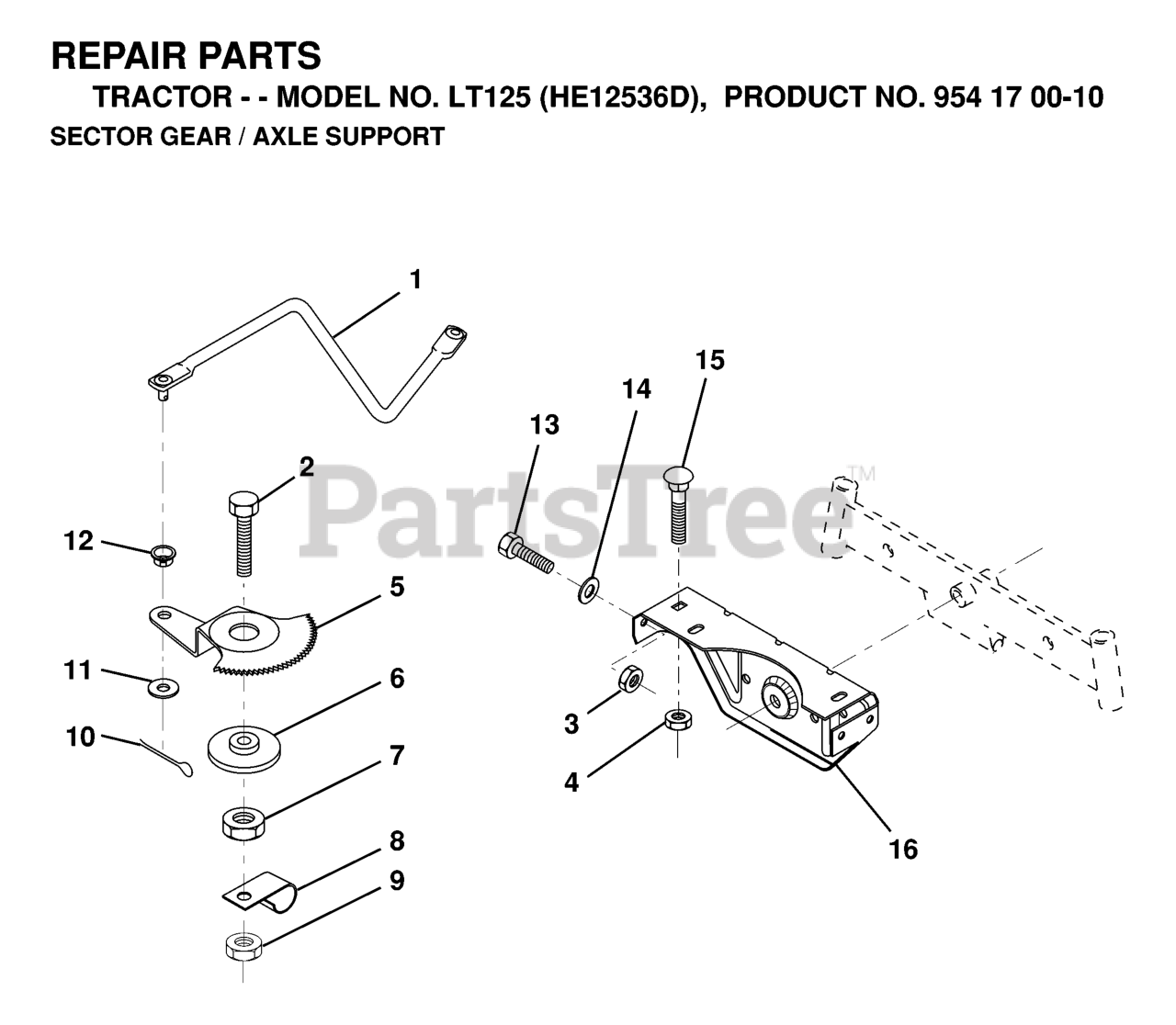

LT 125 (954170010-D) - Husqvarna Lawn Tractor (1998-12) SECTOR GEAR / AXLE SUPPORT Parts Diagram

Lawn Tractor

SECTOR GEAR / AXLE SUPPORT Parts Diagram

  • Title

16

Husqvarna 532137096

SUPPORT/AXLE FRONT

$

$

Not available

8

Husqvarna 532126472

CLIP INSULATOR

$

$

Not available

6

Husqvarna 532121927

BUSHING

$

$

Not available

15

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874780828

BOLT,HEX

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532132566

LINK DRAG

$46.99

$

In Stock, only 1 left!

0

12

Husqvarna 532126847

BUSHING.DRAGLINK (2 2)

$5.99

$

In Stock, only 2 left!

0

10

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 819111416

WASHER
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 873030800

NUT
(Superseded to 873350800)

$

$

Not available

5

Husqvarna 532121926

GEAR SECTOR

$

$

Not available

9

Husqvarna 873680800

NUT LTV
(Superseded to 873350800)

$

$

Not available
