LT 125 (954170001-C) - Husqvarna Lawn Tractor (1998-10) Sector Gear / Axle Support Parts Diagram

Lawn Tractor

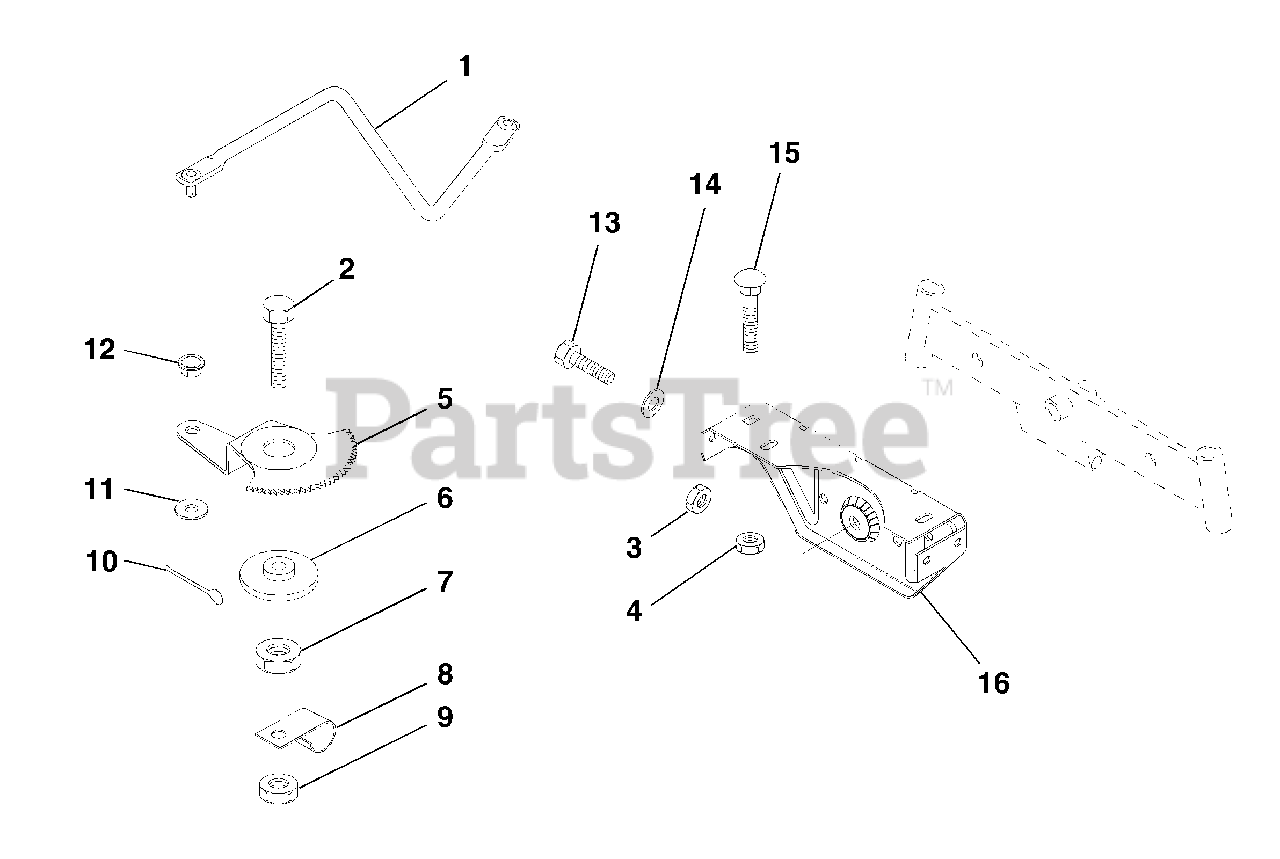

Sector Gear / Axle Support Parts Diagram

  • Title

1

Husqvarna 532132566

Link, Drag

$46.99

$

In Stock, only 1 left!

0

2

Husqvarna 874780828

Bolt, Fin Hex 1/2-13 x 1-3/4

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 873680500

Nut, Lock Hex w/Ins. 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873680600

Nut, Lock Hex w/Wsh 3/8-16

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532121926

Gear, Sector

$

$

Not available

6

Husqvarna 532121927

Bushing

$

$

Not available

7

Husqvarna 873030800

Nut, Heavy Hex Top Lock 1/2-13 UNC
(Superseded to 873350800)

$

$

Not available

8

Husqvarna 532126472

Clip, Insulated

$

$

Not available

9

Husqvarna 873680800

Nut, Crownlock 3/8-16
(Superseded to 873350800)

$

$

Not available

10

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 819131316

Washer, 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532126847

Bushing

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 874760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 819111416

Washer 11/32 x 7/8 x 16 Ga.
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 872110606

Bolt, Carriage 3/8-16 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532137096

Support, Front Axle

$

$

Not available
