LT 125 (954170001-C) - Husqvarna Lawn Tractor (1998-10) Mower Lift Lever Parts Diagram

Lawn Tractor

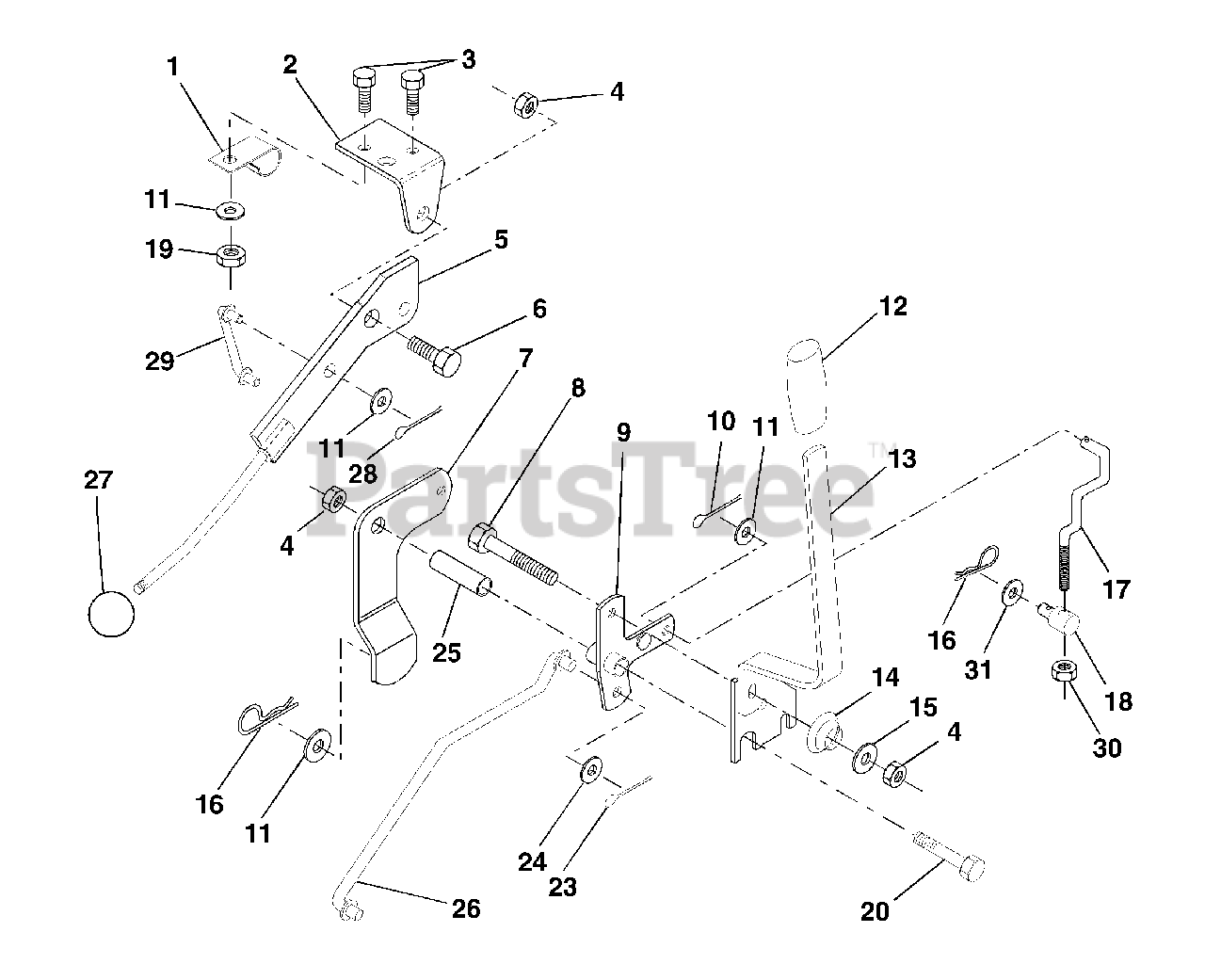

Mower Lift Lever Parts Diagram

  • Title
1

Husqvarna 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532122018

Bracket, Mower Clutch

$

$

Not available

3

Husqvarna 871110408

Bolt, Fin. Hex 1/4-20 UNC x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532145187

Assembly, Clutch Lever

$

$

Not available

6

Husqvarna 532106451

Bolt, Shoulder

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532135371

Assembly, Mower Clutch Arm

$

$

Not available

8

Husqvarna 874760636

Bolt, Hex 3/8-16 UNC x 2-1/4

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532121930

Assembly, Bellcrank Lift

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532131861

Grip, Handle

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532139352

Assembly, Lift Handle

$

$

Not available

14

Husqvarna 532123496

Spring, Compression

$2.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131212

Washer 13/32 x 3/4 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532124961

Retainer, Spring
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 532127359

Link, Front Lift

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532142028

Trunnion, Threaded 3/8-16

$

$

Not available

19

Husqvarna 873640400

Nut, Keps 1/4-20

$

$

Not available

20

Husqvarna 874760644

Bolt, Fin. Hex 3/8-16 UNC x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171612

Washer 17/32 x 1-1/4 x 12 Ga.
(Superseded to 734117801)

$

$

Not available

25

Husqvarna 532121933

Tube, Spacer

$

$

Not available

26

Husqvarna 532141470

Rod, Mower Lift

$

$

Not available

$7.99

$

In Stock, Qty 5

0

28

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

29

Husqvarna 532131655

Link, Mower Clutch

$

$

Not available

30

Husqvarna 873350600

Nut Hex Jam 3/8-16 x 1.30
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

31

Husqvarna 819132012

Washer 13/32 x 1 - 1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0
