LT 125 (954170001-C) - Husqvarna Lawn Tractor (1998-10) Fender / Chassis Parts Diagram

Lawn Tractor

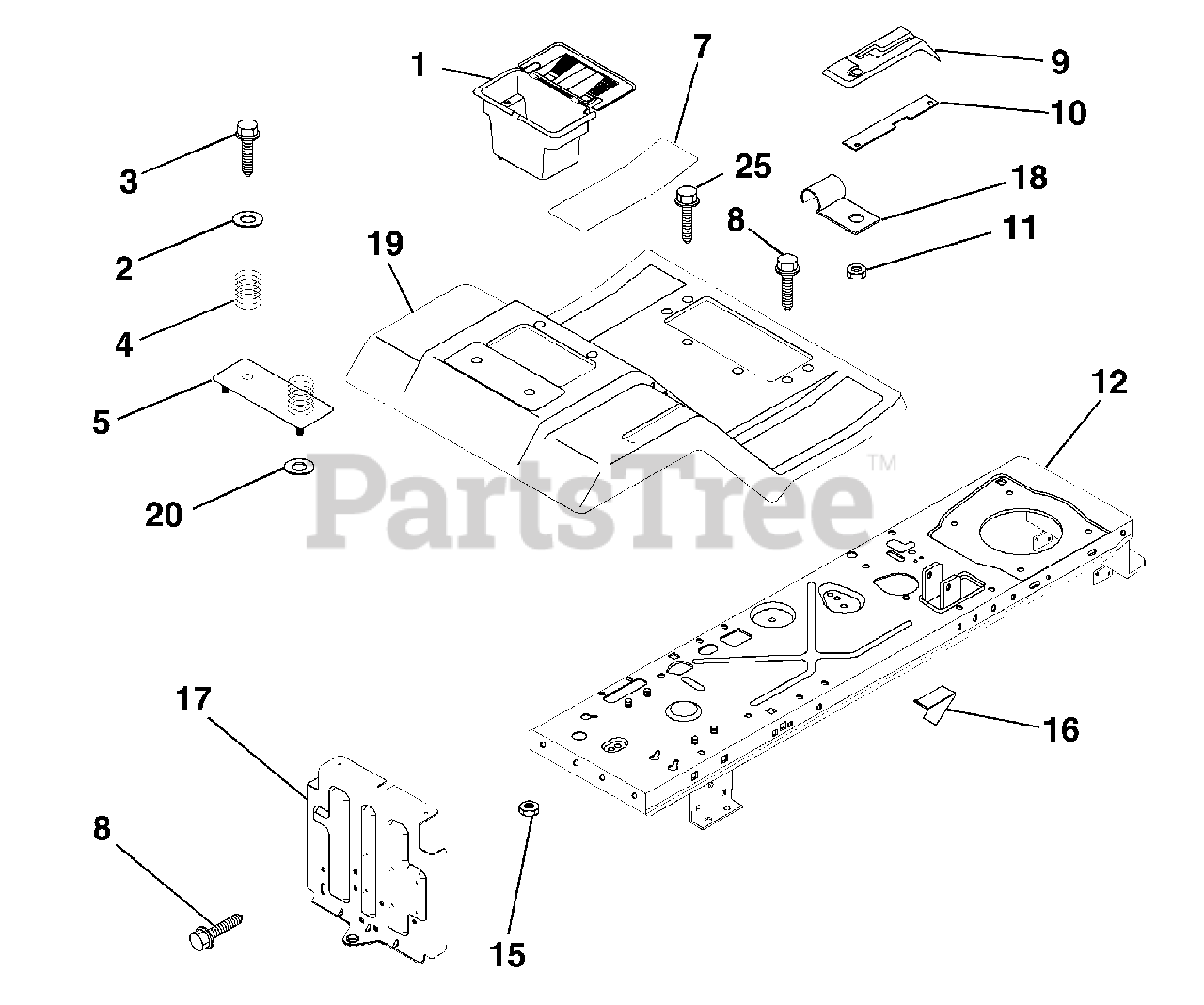

Fender / Chassis Parts Diagram

  • Title

1

Husqvarna 532156417

Case, Battery
(Superseded to 532404349)

$

$

Not available

2

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 817490612

Screw, Hex Wsh. Thrdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 532124181

Spring, Compression, Seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Husqvarna 532125142

Plate, Asm. Battery
(Superseded to 532127115)

$

$

Not available

7

Husqvarna 532124144

Pad, Footrest

$

$

Not available

8

Husqvarna 817490512

Screw, Thdrol 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532126997

Console, Shift Control

$

$

Not available

10

Husqvarna 532139783

Bar, Shift Lock

$

$

Not available

11

Husqvarna 532124346

Nut, Self-Threading, Wsher Hd 3/16

$7.99

$

In Stock, only 1 left!

0

12

Husqvarna 532145190

Assembly, Frame

$

$

Not available

15

Husqvarna 873640400

Nut, Keps 1/4-20 UNC

$

$

Not available

16

Husqvarna 532141736

Switch, Actuator
(Superseded to 532146613)

$

$

Not available

17

Husqvarna 532140782

Drawbar

$

$

Not available

18

Husqvarna 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532141393

Fender/Footrest

$

$

Not available

20

Husqvarna 819091413

Washer 9/32 x 7/8 x 13 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 817190516

Screw Hex 5/16-18 Unc x1

$

$

Not available
