LT 125 (954170001-C) - Husqvarna Lawn Tractor (1998-03) TRANSMISSION Parts Diagram

Lawn Tractor

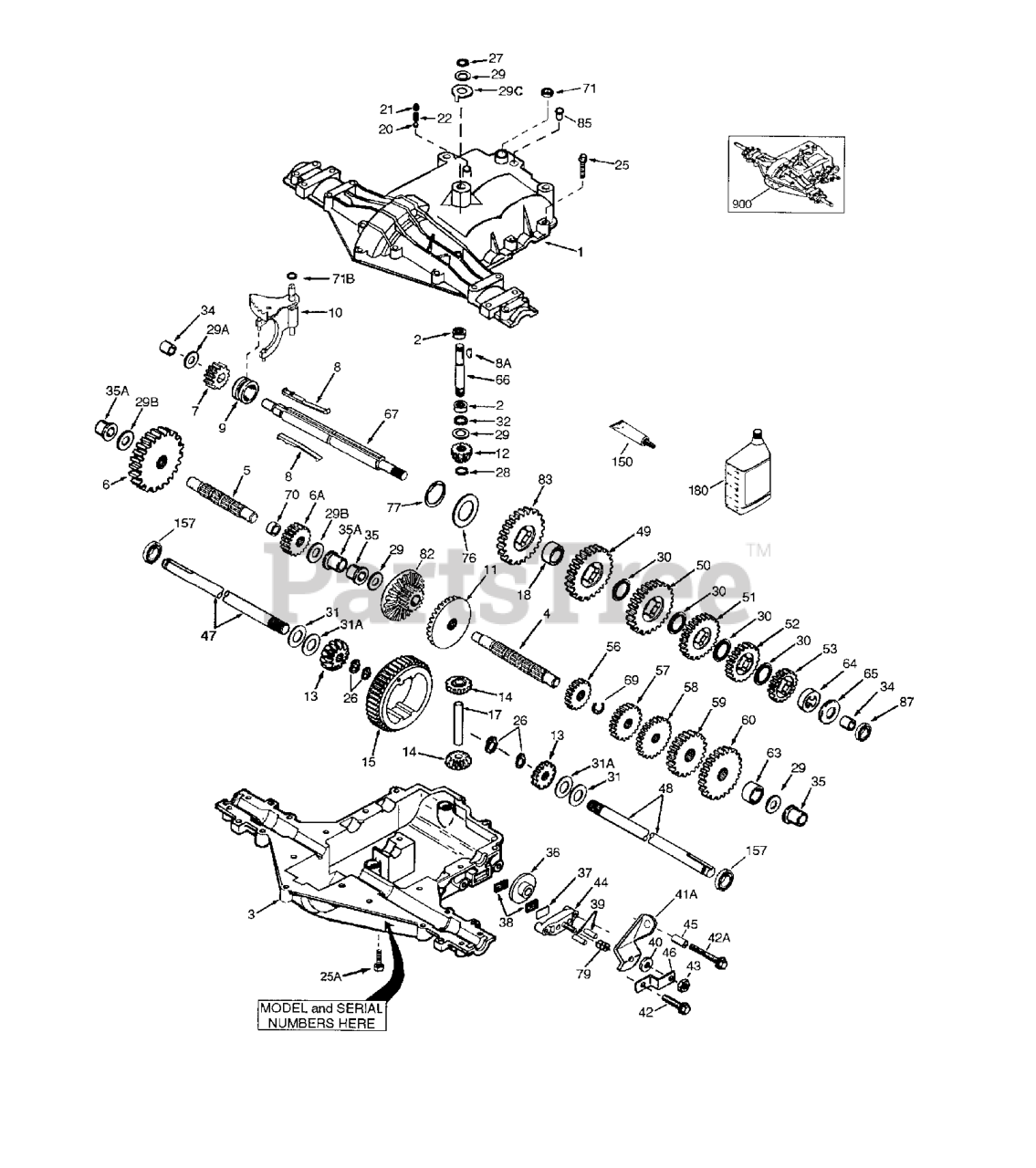

TRANSMISSION Parts Diagram

  • Title

29

Husqvarna 780072

Washer, Thrust

$

$

Not available

42A

Husqvarna 792085A

Screw, 1 /4-20 x 2-1 /4"

$

$

Not available

150

Husqvarna 788093A

Liquid Gasket RTV Silicone

$

$

Not available

35

Husqvarna 780193

Flanged Bushing 5/8" ID

$

$

Not available

79

Husqvarna 792144

Piston Assembly

$

$

Not available

52

Husqvarna 778350

Spur Gear (16 teeth)

$

$

Not available

18

Husqvarna 786102

Spacer, Neutral

$

$

Not available

63

Husqvarna 786071

Countershaft Spacer (1-1/8" x 3/8")

$

$

Not available

12

Husqvarna 778309

Input Bevel Pinion (13 teeth)

$

$

Not available

85

Husqvarna 792154

Oil Fill Plug

$

$

Not available

17

Husqvarna 786188

Drive Pin

$

$

Not available

29B

Husqvarna 780051

Thrust Washer (.762 ID)

$

$

Not available

76

Husqvarna 780090

Washer, Thrust

$

$

Not available

29C

Husqvarna 780199

Anti-Rotation Washer .632

$

$

Not available

180

Husqvarna 730229A

Gear Oil 80W90

$

$

Not available

20

Husqvarna 792077

Ball, Steel 5/16" diameter

$

$

Not available

83

Husqvarna 778338

Spur Gear (27 teeth)

$

$

Not available

39

Husqvarna 786026

Pin, Dowel

$

$

Not available

71B

Husqvarna 788092

"O" Ring

$

$

Not available

2

Husqvarna 780086A

Needle Bearing 5/8" ID

$

$

Not available

32

Husqvarna 788083

Oil Seal 5/8"

$

$

Not available

31

Husqvarna 780001

Washer (.056 wide)

$

$

Not available

71

Husqvarna 788069

Seal, Square Cut

$

$

Not available

56

Husqvarna 778355

Spur Gear (11 teeth)

$

$

Not available

82

Husqvarna 778333

Bevel & Spur Gear (30 & 13 teeth)

$

$

Not available

42

Husqvarna 792073A

Screw, 1 /4-20 x 1-1 /4"

$

$

Not available

15

Husqvarna 778370

Ring Gear (43 teeth)

$

$

Not available

49

Husqvarna 778356

Spur Gear (29 teeth)

$

$

Not available

30

Husqvarna 780108

Washer, Thrust

$

$

Not available

43

Husqvarna 792075

Lock Nut 5/16-24

$

$

Not available

41A

Husqvarna 790079

Lever, Brake

$

$

Not available

22

Husqvarna 792079

Spring

$

$

Not available

58

Husqvarna 778351

Spur Gear (21 teeth)

$

$

Not available

45

Husqvarna 786066

Spacer (1/2" OD)

$

$

Not available

40

Husqvarna 792076A

Washer, Flat

$

$

Not available

10

Husqvarna 784378

Shift Rod & Fork

$

$

Not available

50

Husqvarna 778354

Spur Gear (23 teeth)

$

$

Not available

6

Husqvarna 778364

Spur Gear (38 teeth)

$

$

Not available

51

Husqvarna 778352

Spur Gear (19 teeth)

$

$

Not available

35A

Husqvarna 780197

Flanged Bushing 3/4"

$

$

Not available

38

Husqvarna 799021

Brake Pad (pkg of 2)

$

$

Not available

36

Husqvarna 790075

Brake Disk

$

$

Not available

77

Husqvarna 788078A

Ring, Retaining, Inverted (Package of 2)

$

$

Not available

48

Husqvarna 774691

Axle (16-1/2" long)

$

$

Not available

157

Husqvarna 788088

Oil Seal 3/4"

$

$

Not available

65

Husqvarna 780189

Washer

$

$

Not available

26

Husqvarna 792125

Ring, Retainer (4 Required, Package of 2)

$

$

Not available

13

Husqvarna 778368

Bevel Gear (13 teeth)

$

$

Not available

69

Husqvarna 792170

Retaining Ring

$

$

Not available

8A

Husqvarna 792047

Woodruff Key No. 9

$

$

Not available

46

Husqvarna 786086

Bracket, Brake lever

$

$

Not available

21

Husqvarna 792078

Set Screw 3/18-16 x 3/8"

$

$

Not available

34

Husqvarna 780194

Bushing 9/16"

$

$

Not available

3

Husqvarna 770128

Transaxle Case

$

$

Not available

66

Husqvarna 776422

Input Shaft

$

$

Not available

27

Husqvarna 792035

Retaining Ring

$

$

Not available

67

Husqvarna 776396

Shifter & Brake Shaft

$

$

Not available

57

Husqvarna 778353

Spur Gear (17 teeth)

$

$

Not available

59

Husqvarna 778349

Spur Gear (24 teeth)

$

$

Not available

5

Husqvarna 776409

Output Shaft

$

$

Not available

7

Husqvarna 778330

Spur Gear (11 teeth)

$

$

Not available

53

Husqvarna 778346

Spur Gear (15 teeth)

$

$

Not available

37

Husqvarna 790007

Plate, Brake pad

$

$

Not available

6A

Husqvarna 778369

Spur Gear (15 teeth)

$

$

Not available

44

Husqvarna 790025

Holder, Brake pad

$

$

Not available

1

Husqvarna 772147

Transaxle Cover

$

$

Not available

87

Husqvarna 788089

Oil Seal 9/16"

$

$

Not available

14

Husqvarna 778367

Bevel Pinion (13 teeth)

$

$

Not available

31A

Husqvarna 780195

Flat Washer (.062 wide)

$

$

Not available

64

Husqvarna 786072

Brake Shaft Spacer (1-3/8" x 3/8")

$

$

Not available

28

Husqvarna 788040

Ring, Retaining

$

$

Not available

60

Husqvarna 778345

Spur Gear (25 teeth)

$

$

Not available

25A

Husqvarna 792177

Screw 1/4-20 x 1-3/8"

$

$

Not available

29A

Husqvarna 780160

Washer

$

$

Not available

11

Husqvarna 778334

Bevel Gear (30 teeth)

$

$

Not available

8

Husqvarna 792180

Shift Key

$

$

Not available

47

Husqvarna 774690

Axle (11-15/16" long)

$

$

Not available

4

Husqvarna 776395

Countershaft

$

$

Not available

9

Husqvarna 784352

Collar, Shifter

$

$

Not available

70

Husqvarna 786187

Spacer .890

$

$

Not available
