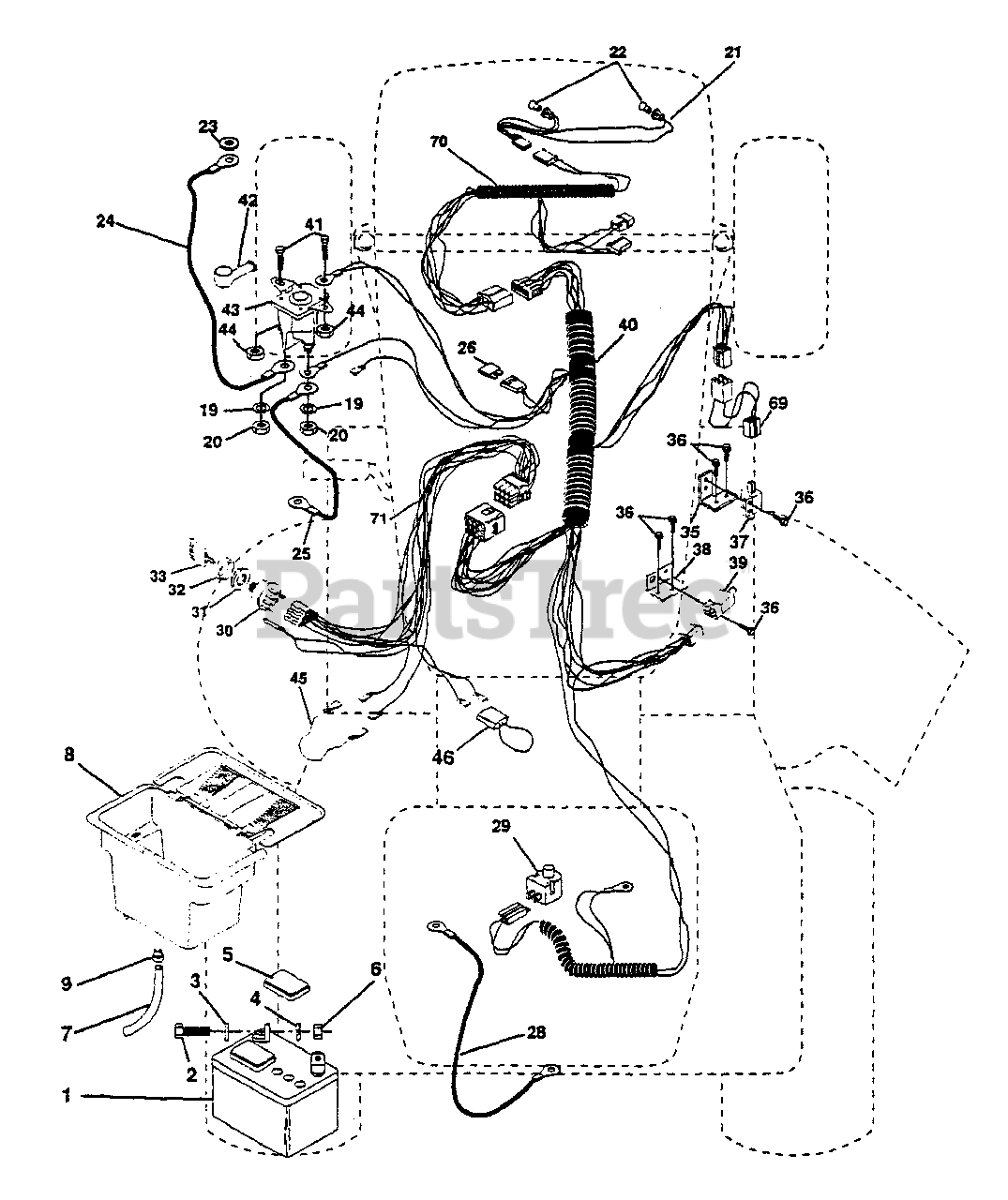

LT 125 (954000772-A) - Husqvarna Lawn Tractor (1994-01) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532121265

Battery 12 Volt 25 AMP
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20unc X 3/4

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna 819091016

Washer 9/32 X 5/8 X 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 532121264

Caps Battery 20/25/30 AMP

$

$

Not available

6

Husqvarna 873220400

Nut Fin Hex 1/4-20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 532109238

Tube Plastic 12"

$

$

Not available

8

Husqvarna 532129965

Case Battery Hng Mech W/lid
(Superseded to 532404349)

$

$

Not available

9

Husqvarna 532109596

Clamp Hose Olive

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 810090400

Washer Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 873350400

Nut Jam Hex 1/4-20 Unc
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532136850

Harness Asm Light W/4152j

$

$

Not available

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 811150400

Washer Lock Internal Tooth 1/4

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

Cable Battery 6 Ga 11" red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532132202

Cable Battery 6 Ga 43" red

$

$

Not available

26

Husqvarna 532108824

Fuse 30 AMP Auto Green

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532124773

Cable Ground 6 Ga 12' black
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Husqvarna 532140301

Switch Ign 4 pos w/Lights

$37.99

$

In Stock, only 1 left!

0

31

Husqvarna 532124211

Nut Ignition

$5.99

$

In Stock, only 1 left!

0

32

Husqvarna 532141226

Cover Sw Ignition

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532122147

Key Ign Modleded Generic

$

$

Not available

35

Husqvarna 532108236

Bracket Switch Clutch

$2.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817021008

Screw Tap Hex #10-24unc X 1/2

$4.99

$

In Stock, Qty 14

0

37

Husqvarna 532104445

Switch Intlk Clutch Red 2 Term

$17.99

$

In Stock, only 1 left!

0

38

Husqvarna 532140336

Bracket, Switch, Interlock

$

$

Not available

39

Husqvarna 532109553

Switch Intlk Clutch Red 4 Term
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532140707

Harness Chassis LT PL Mech

$

$

Not available

41

Husqvarna 871110408

Bolt Blk Fin Hex 1/4 - 20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532138406

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

44

Husqvarna 873640400

Nut Keps Hex 1/4-20 Unc

$

$

Not available

45

Husqvarna 532140844

Adapter Ammeter Rectangular

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532140660

Harness Adapter Serv Geardrive

$

$

Not available

70

Husqvarna 532141163

Harness, Eng.

$

$

Not available

71

Husqvarna 532140710

Harness Dash Lt Private Lbl

$

$

Not available
