LT 125 (954000772-A) - Husqvarna Lawn Tractor (1994-01) Dana Transaxle Parts Diagram

Lawn Tractor

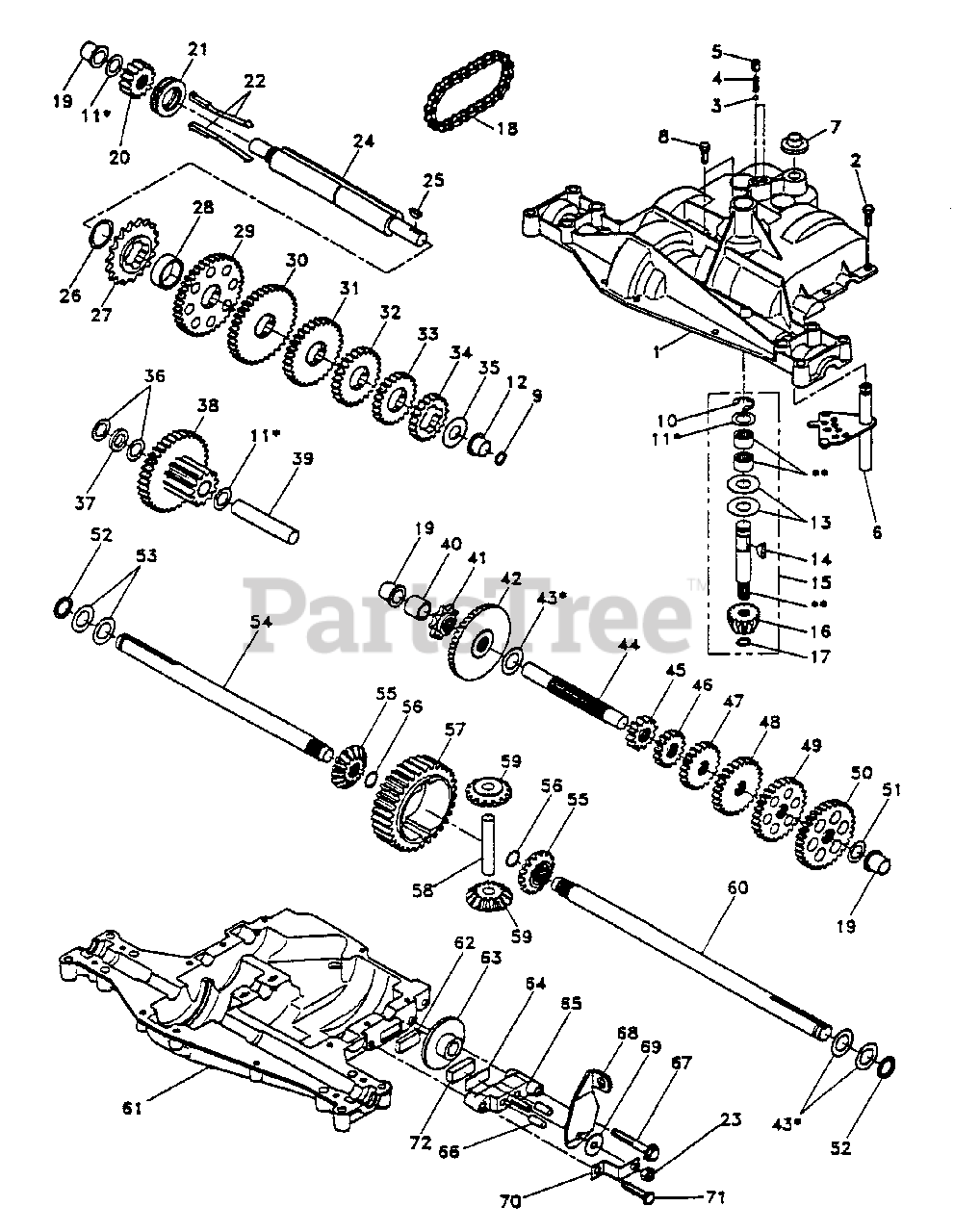

Dana Transaxle Parts Diagram

  • Title

1

Husqvarna 142671

Housing, Upper

$

$

Not available

2

Husqvarna 2274J

Screw, Self-Tapping, Large 1/4-20 x .734

$

$

Not available

3

Husqvarna 134400

Ball, Detent

$

$

Not available

4

Husqvarna 105904X

Spring, Detent
(Superseded to 583647001)

$

$

Not available

5

Husqvarna 105905X

Screw, Set

$

$

Not available

6

Husqvarna 138235

Kit, Shifter Assembly

$

$

Not available

7

Husqvarna 134399

Boot, Shifter

$

$

Not available

8

Husqvarna 134791

Screw, Tapping w/Sealer

$

$

Not available

9

Husqvarna 138241

Square Ring

$

$

Not available

10

Husqvarna 142672

Ring, Retaining

$

$

Not available

11

Husqvarna 134793

Assembly, Kit, Shim .625 Shaft

$

$

Not available

12

Husqvarna 142673

Bearing, Flange

$

$

Not available

13

Husqvarna 120415X

Washer, Plain .632 x 1.38 x .046
(Superseded to 532120415)

$2.99

$

Usually ships in 3-10 days

0

14

Husqvarna 142674

Key, Woodruff, #9
(Superseded to 532142674)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 138234

Assembly, Kit, Input Shaft

$

$

Not available

16

Husqvarna 110078X

Pinion, Bevel, 14 Teeth

$

$

Not available

17

Husqvarna 105909X

Ring, Retaining
(Superseded to 583647301)

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 105910X

Chain, 24 Pitches
(Superseded to 532105910)

$

$

Not available

19

Husqvarna 105911X

Bearing, Flange

$

$

Not available

20

Husqvarna 142675

Gear, Spur, 14 Teeth
(Superseded to 532142675)

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 138246

Collar, Clutch
(Superseded to 582954101)

$36.99

$

Usually ships in 3-10 days

0

22

Husqvarna 138236

Assembly, Kit, Clutch Keys

$

$

Not available

23

Husqvarna 73810500

Locknut 5/16-24

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 142676

Shaft, Intermediate

$

$

Currently unavailable

25

Husqvarna 2244J

Key, Woodruff, #61

$

$

Not available

26

Husqvarna 105916X

Ring, Retaining
(Superseded to 532105916)

$2.99

$

Usually ships in 3-10 days

0

27

Husqvarna 120470X

Sprocket, 18 Teeth

$

$

Not available

28

Husqvarna 110070X

Spacer
(Superseded to 583658801)

$7.99

$

Usually ships in 3-10 days

0

29

Husqvarna 142677

Gear, Spur, 37 Teeth
(Superseded to 582959701)

$35.99

$

Usually ships in 3-10 days

0

30

Husqvarna 142681

Gear, Spur, 35 Teeth
(Superseded to 582959901)

$42.99

$

Usually ships in 3-10 days

0

31

Husqvarna 120405X

Gear, Spur, 30 Teeth

$

$

Not available

32

Husqvarna 108980X

Gear, Spur, 25 Teeth
(Superseded to 583656801)

$46.99

$

Usually ships in 3-10 days

0

33

Husqvarna 120406X

Gear, Spur, 22 Teeth
(Superseded to 583662001)

$26.99

$

Usually ships in 3-10 days

0

34

Husqvarna 134796

Gear, Spur, 19 Teeth
(Superseded to 584444901)

$31.99

$

Usually ships in 3-10 days

0

35

Husqvarna 105925X

Washer, Plain .640 x 1.37 x .061

$

$

Not available

36

Husqvarna 2232J

Washer, Plain .632 x 1.00 x .026
(Superseded to 532002232)

$

$

Not available

37

Husqvarna 108978X

Spacer .630 x 1.00 x .169

$

$

Not available

38

Husqvarna 110079X

Assembly, Gear, Combination of 12 Teeth and 35 Teeth

$

$

Not available

39

Husqvarna 124639X

Shaft, Idler
(Superseded to 532124639)

$36.99

$

Usually ships in 3-10 days

0

40

Husqvarna 120472X

Spacer .635 x .875 x .755
(Superseded to 583663001)

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 105928X

Sprocket, 9 Teeth
(Superseded to 532105928)

$

$

Not available

42

Husqvarna 110084X

Gear, Bevel, 42 Teeth

$

$

Not available

43

Husqvarna 134394

Assembly, Kit, Shim .750 Shaft
(Superseded to 532134394)

$

$

Not available

44

Husqvarna 120473X

Shaft, Drive
(Superseded to 583663101)

$

$

Not available

45

Husqvarna 142678

Gear, Spur, 12 Teeth
(Superseded to 582959801)

$10.99

$

Usually ships in 3-10 days

0

46

Husqvarna 142679

Gear, Spur, 15 Teeth
(Superseded to 532142679)

$11.99

$

Usually ships in 3-10 days

0

47

Husqvarna 120407X

Gear, Spur, 20 Teeth

$

$

Not available

48

Husqvarna 106589X

Gear, Spur, 25 Teeth
(Superseded to 583651701)

$33.99

$

Usually ships in 3-10 days

0

49

Husqvarna 120408X

Gear, Spur, 28 Teeth
(Superseded to 583662101)

$47.99

$

Usually ships in 3-10 days

0

50

Husqvarna 105937X

Gear, Spur, 31 Teeth

$38.99

$

Usually ships in 3-10 days

0

51

Husqvarna 2226J

Washer, Plain .632 x 1.00 x .060

$

$

Not available

52

Husqvarna 134401

Washer, Neoprene

$

$

Currently unavailable

53

Husqvarna 2264J

Washer, Plain .758 x 1.25 x .031
(Superseded to 583729701)

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 120474X

Axle, L.H.

$

$

Not available

55

Husqvarna 110081X

Gear, Miter, 15 Teeth

$

$

Not available

56

Husqvarna 105941X

Ring, Retaining
(Superseded to 583647801)

$

$

Not available

57

Husqvarna 110071X

Gear, Spur, 32 Teeth

$

$

Not available

58

Husqvarna 120952X

Shaft, Cross
(Superseded to 583663901)

$17.99

$

Usually ships in 3-10 days

0

59

Husqvarna 110082X

Gear,-Miter, 15 Teeth

$

$

Not available

60

Husqvarna 120475X

Axle, R.H.

$

$

Not available

61

Husqvarna 142680

Housing. Lower

$

$

Currently unavailable

62

Husqvarna 120961X

Puck, Friction

$

$

Not available

63

Husqvarna 7294J

Disc, Brake

$

$

Not available

64

Husqvarna 108989X

Spacer

$

$

Not available

65

Husqvarna 120953X

Jaw, Brake

$

$

Not available

66

Husqvarna 120954X

Pin, Dowel

$

$

Not available

67

Husqvarna 134799

Screw, Self-Tapping, Large 5/16-18 x 2.25

$4.49

$

Usually ships in 3-10 days

0

68

Husqvarna 138244

Lever, Actuating

$

$

Not available

69

Husqvarna 108996X

Washer, Plain .321 x 1.00 x .055
(Superseded to 583657101)

$6.99

$

In Stock, Qty 9

0

70

Husqvarna 120956X

Bracket, Anti-Rotation

$2.49

$

Usually ships in 3-10 days

0

71

Husqvarna 106596X

Screw, Self-Tapping, Large 5/16-18 x 1.44

$

$

Not available

72

Husqvarna 120951X

Puck, Friction

$

$

Not available

73

Husqvarna 120416X

Grease

$

$

Not available
