LT 125 (954000332-D) - Husqvarna Lawn Tractor (1991-10) Transaxle Peerless (Model No. 930-010) Parts Diagram

Lawn Tractor

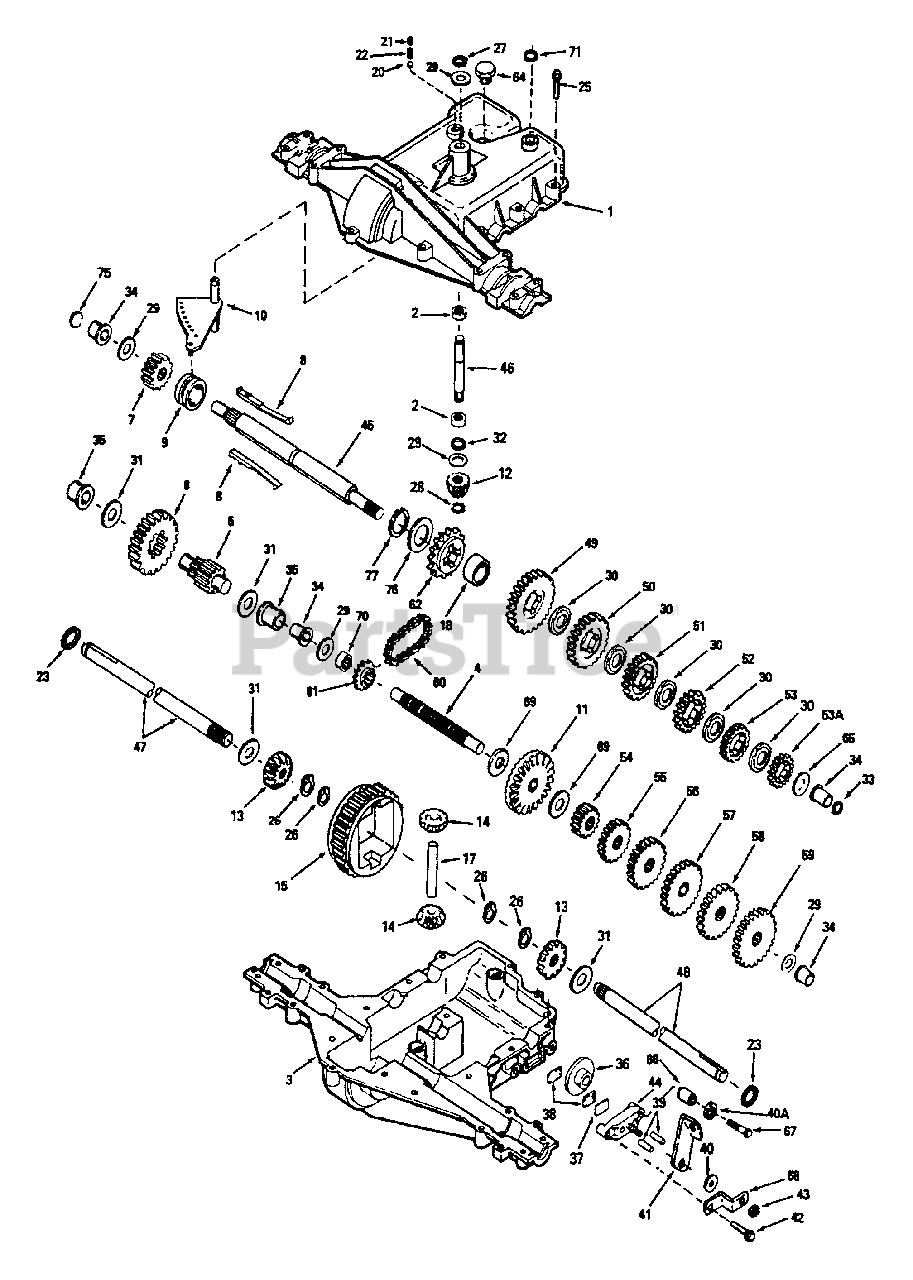

Transaxle Peerless (Model No. 930-010) Parts Diagram

  • Title

1

Husqvarna 772108

Cover, Transaxle

$

$

Not available

2

Husqvarna 780086

Bearing, Needle

$

$

Not available

3

Husqvarna 770102

Case, Transaxle

$

$

Not available

4

Husqvarna 776260

Shaft, Counter

$

$

Not available

5

Husqvarna 776219

Shaft and Pinion Assembly, Output

$

$

Not available

6

Husqvarna 778139

Gear, Output

$

$

Not available

7

Husqvarna 778136

Gear Spur 15 Teeth

$

$

Not available

8

Husqvarna 792136

Key

$

$

Not available

9

Husqvarna 784352

Collar, Shifter

$

$

Not available

10

Husqvarna 784355

Rod & Fork Assembly, Shift

$

$

Not available

11

Husqvarna 778229

Gear, Bevel 42 Teeth

$

$

Not available

12

Husqvarna 778113A

Bevel Pinion, Input

$

$

Not available

13

Husqvarna 778221

Gear, Bevel

$

$

Not available

14

Husqvarna 778068

Gear, Bevel Pinion

$

$

Not available

15

Husqvarna 778260

Gear, Ring

$

$

Not available

17

Husqvarna 786139

Pin, Drive

$

$

Not available

18

Husqvarna 786102

Spacer, Neutral

$

$

Not available

20

Husqvarna 792077

Ball, Steel 5/16° diameter

$

$

Not available

21

Husqvarna 792078

Set Screw 3/8-16 x 3/8

$

$

Not available

22

Husqvarna 792079

Spring

$

$

Not available

23

Husqvarna 788061

Ring, Felt

$

$

Not available

25

Husqvarna 792073

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4

$

$

Not available

26

Husqvarna 792125

Ring, Retainer

Note: (4 Required, Package Of 2)

$

$

Not available

27

Husqvarna 792035

Ring, Retainer

$

$

Not available

28

Husqvarna 788040

Ring, Retainer

$

$

Not available

29

Husqvarna 780072

Washer, Thrust

$

$

Not available

30

Husqvarna 780108

Washer, Thrust

$

$

Not available

31

Husqvarna 780001

Washer

$

$

Not available

32

Husqvarna 792001

"O" Ring

$

$

Not available

33

Husqvarna 788051

Seal, Square Cut

$

$

Not available

34

Husqvarna 780105A

Bushing, Flanged

$

$

Not available

35

Husqvarna 780118A

Bushing, Flanged

$

$

Not available

36

Husqvarna 790003

Disk, Brake

$

$

Not available

37

Husqvarna 790007

Plate, Brake Pad

$

$

Not available

38

Husqvarna 790006

Pad, Brake

$

$

Not available

39

Husqvarna 786026

Pin, Dowel

$

$

Not available

40

Husqvarna 792076

Washer, Flat

$

$

Not available

40A

Husqvarna 792128

Washer, Flat

$

$

Not available

41

Husqvarna 790047

Lever, Brake

$

$

Not available

42

Husqvarna 792073

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4

$

$

Not available

43

Husqvarna 792075

Locknut 5/16-24

$

$

Not available

44

Husqvarna 790025

Holder, Brake Pad

$

$

Not available

45

Husqvarna 776315A

Shaft, Brake, 4-Keyed

$

$

Not available

46

Husqvarna 776135

Shaft, Input

$

$

Not available

47

Husqvarna 774690

Axle, 11-15/16"

$

$

Not available

48

Husqvarna 774691

Axle, 16-1/2"

$

$

Not available

49

Husqvarna 778191

Gear, Spur 37 Teeth

$

$

Not available

50

Husqvarna 778125

Gear, Spur 35 Teeth

$

$

Not available

51

Husqvarna 778124A

Gear, Spur 30 Teeth

$

$

Not available

52

Husqvarna 778123A

Gear, Spur 25 Teeth

$

$

Not available

53

Husqvarna 778122A

Gear, Spur 22 Teeth

$

$

Not available

53A

Husqvarna 778209

Gear, Spur 19 Teeth

$

$

Not available

54

Husqvarna 778230

Gear, Spur 12 Teeth

$

$

Not available

55

Husqvarna 773151

Gear, Spur 15 Teeth

$

$

Currently unavailable

56

Husqvarna 778126A

Gear, Spur 20 Teeth

$

$

Not available

57

Husqvarna 778127A

Gear, Spur 25 Teeth

$

$

Not available

58

Husqvarna 778128A

Gear, Spur 28 Teeth

$

$

Not available

59

Husqvarna 778163

Gear, Spur 31 Teeth

$

$

Not available

60

Husqvarna 786081

Chain, Roller

Note: (Number 41 Chain, 24 Links)

$

$

Not available

61

Husqvarna 786082

Sprocket 9 Teeth

$

$

Not available

62

Husqvarna 786123

Sprocket 18 Teeth

$

$

Not available

64

Husqvarna 792074

Plug, Hex Head, Threaded 9/16-18

$

$

Not available

65

Husqvarna 780109

Washer, Thrust

$

$

Not available

66

Husqvarna 786067

Spacer

$

$

Not available

67

Husqvarna 792085

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 2-1/4

$

$

Not available

68

Husqvarna 786086

Bracket, Brake Lever

$

$

Not available

69

Husqvarna 780051

Washer, Thrust

$

$

Not available

70

Husqvarna 786118

Spacer

$

$

Not available

71

Husqvarna 788069

Seal, Square Cut

$

$

Not available

75

Husqvarna 786116

Disk

$

$

Not available

76

Husqvarna 780090

Washer, Thrust

$

$

Not available

77

Husqvarna 788075

Ring, Retaining

$

$

Not available
