LT 125 (954000332-D) - Husqvarna Lawn Tractor (1991-10) Power And Mechanical Controls Group Parts Diagram

Lawn Tractor

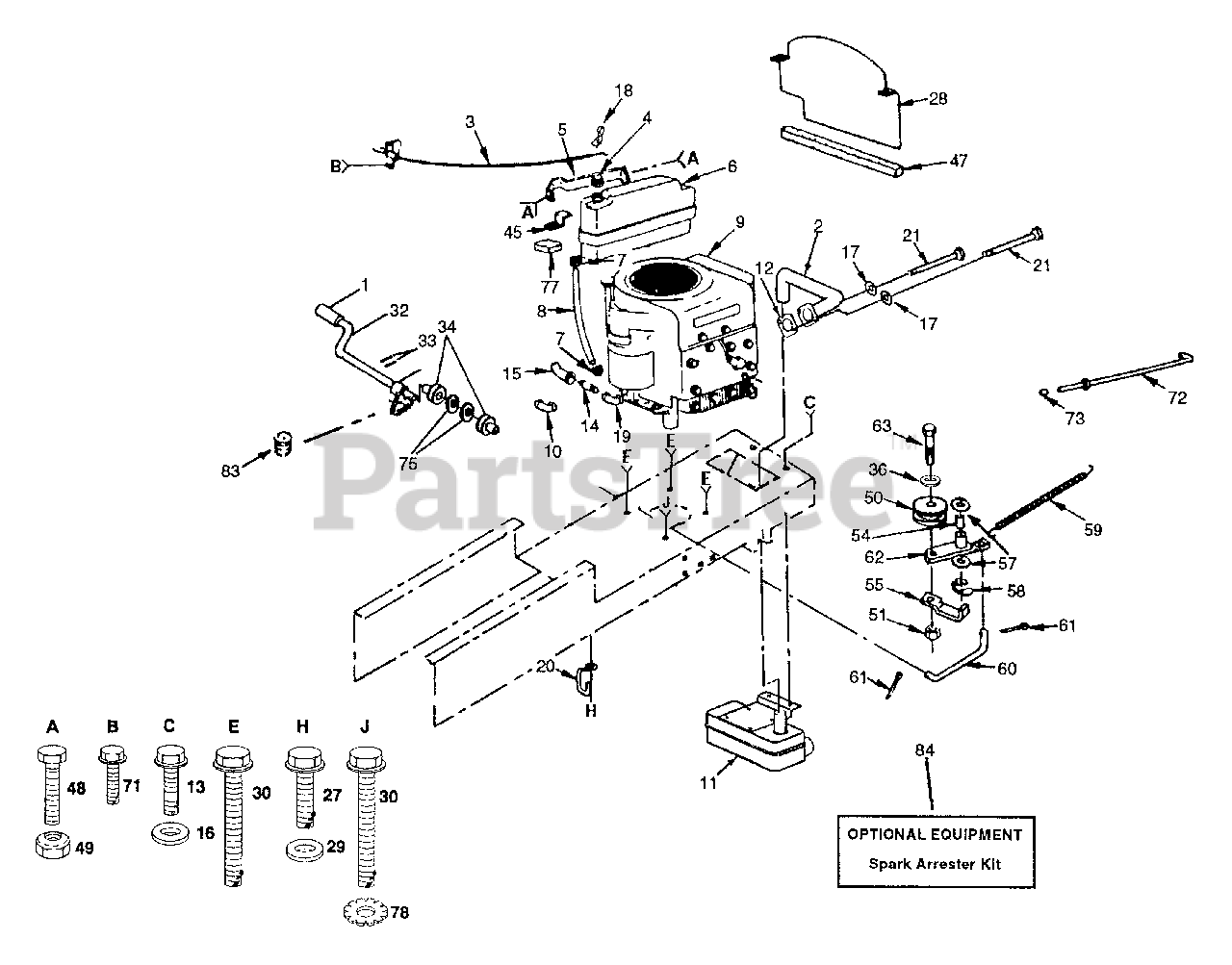

Power And Mechanical Controls Group Parts Diagram

  • Title

1

Husqvarna 532123533

Pedal Cover

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532123073

Pipe, Exhaust 1800

$

$

Not available

3

Husqvarna 532132754

Control, Throttle
(Superseded to 532160588)

$

$

Not available

4

Husqvarna 532124912

Fuel Cap
(Superseded to 532008504)

$

$

Not available

5

Husqvarna 532121281

Support, Tank, Fuel

$

$

Not available

6

Husqvarna 532121280

Tank, Fuel

$

$

Not available

7

Husqvarna 532123487

Hose Clamp

$7.49

$

In Stock, only 4 left!

0

8

Husqvarna 532124923

Fuel Line
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

9

Engine Briggs & Stratton

Note: Model No. 286707

$

$

Not available

10

Husqvarna 813240300

900 Street Elbow 3/8 NPT

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532123075

Muffler

$

$

Not available

12

Husqvarna 532125593

Gasket, Exhaust
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 817490512

Screw, Thread Rolling 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 813280328

Nipple, Pipe 3/8-18 NPT x 3"

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 813200300

900 Elbow 3/8 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Husqvarna 819112016

Washer 11/32 x 1-1/4 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 810040500

Washer, Lock Hvy. Helical Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

18

Husqvarna 532133097

Stop, Throttle

$

$

Not available

19

Husqvarna 813310300

45° Street Elbow

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532104777

Retainer, Belt, Chassis L.H.
(Superseded to 532136715)

$

$

Not available

21

Husqvarna 871070510

Screw, Hex.Hd. Cap 5/16 - 18 x 5/8

$

$

Not available

27

Husqvarna 817490612

Screw, Hex Washer Thd. Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

28

Husqvarna 532126423

Baffle, Vertical

$

$

Not available

29

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 817490620

Screw, Hex Washer Hd. Thread Rolling 3/8 - 16 x 1 - 1/4 Type TT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532122424

Shaft, Pedal, Foot

$

$

Not available

33

Husqvarna 532124963

Roll Pin 3/16 x 1
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

34

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 532104799

Brace, Tank

$

$

Not available

47

Husqvarna 532105037

Strip, Foam

$

$

Not available

48

Husqvarna 874780512

Bolt, Hex 5/16-18 x 3/4 Gr. 5
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 873680500

Locknut 5/16-18 Gr. B
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532127783

Idler, V. Groove
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

51

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532110812

Washer, Hardened

$

$

Not available

58

Husqvarna 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

59

Husqvarna 532105709

Spring, Return Clutch

$11.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

61

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

62

Husqvarna 532123789

Bellcrank Assembly

Note: (Inc. Key No. 54)

$

$

Not available

63

Husqvarna 874760624

Bolt Hex 3/8 - 16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

71

Husqvarna 817720410

Screw Hex Washer Head Thread Cutting 1/4-20 x 1/2
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

72

Husqvarna 532133261

Rod, Brake, Park

$

$

Not available

73

Husqvarna 532071673

Plunger Cap

$5.99

$

Usually ships in 3-10 days

0

75

Husqvarna 819211616

Washer 21/32 x 1 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

76

Husqvarna 812000022

E Ring

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532006431

Pad, Spacer

$

$

Not available

78

Husqvarna 811050600

Washer, Lock 3/8 - Ext.Tooth
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

83

Oil Drain Plug

Note: (Order From Engine Manufacturer)

$

$

Not available

84

Husqvarna 532121851

Spark Arrester Kit

$

$

Not available
