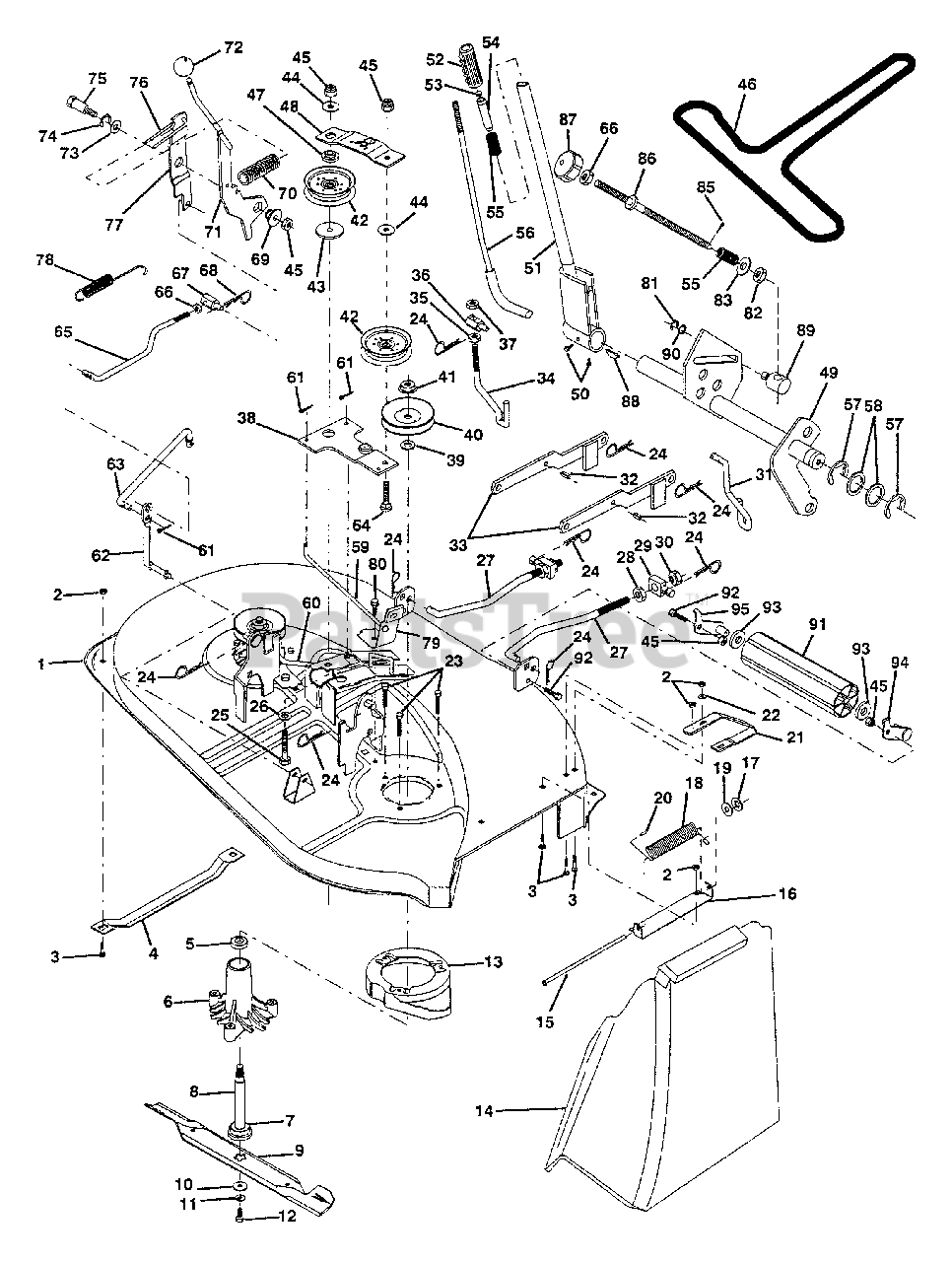

LT 125 (954000332-D) - Husqvarna Lawn Tractor (1991-10) Mower Parts Diagram

Lawn Tractor

Mower Parts Diagram

  • Title

1

Husqvarna 532129365

Mower Asm.
(Superseded to 532145775)

Note: Subs to 145775

$

$

Not available

2

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532125074

Runner, LH
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 11

0

6

Husqvarna 532128774

Housing, Vented Mandrel

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532129895

Bearing, Ball

$11.99

$

In Stock, Qty 20+

0

8

Husqvarna 532133172

Shaft, Mandrel, Mower, Vented
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

9

Husqvarna 532127842

Blade, Mower, High Performance
(Superseded to 532138497)

$26.99

$

In Stock, Qty 7

0

10

Husqvarna 532129962

Washer, Hard, Mower, Vented
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 810030600

Washer, Lock Hvy 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

12

Husqvarna 532850857

Bolt, Blade 3/8-24 x 1-1/4 Gr. 8

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 532128961

Stripper, Mower, Vented
(Superseded to 532140329)

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532106736

Shield, Deflector

$

$

Not available

15

Husqvarna 532106735

Rod, Hinge

$10.99

$

In Stock, only 1 left!

0

16

Husqvarna 532105896

Bracket, Deflector, Mower
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532106734

Spring, Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

19

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532128772

Runner, RH

$

$

Not available

22

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532078158

Bolt, Mandrel 5/16-18 x 1-1/4
(Superseded to 817580520)

$4.99

$

In Stock, only 3 left!

0

24

Husqvarna 532124670

Retainer, Spring

$

$

Not available

25

Husqvarna 874600636

Bolt, Carriage 3/8-16 x 2-1/4
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532127218

Link Asm., Front

$17.99

$

In Stock, only 4 left!

0

28

Husqvarna 873350800

Nut, Jam Hex 1/2-13 UNC

$

$

Not available

29

Husqvarna 532130171

Trunnion
(Superseded to 532175689)

$

$

Not available

30

Husqvarna 873680800

Nut, Crownlock 1/2-13 UNC
(Superseded to 873350800)

$

$

Not available

31

Husqvarna 532127224

Link, Lift, RH

$

$

Not available

32

Husqvarna 532128763

Pin, Spring 5/16-3/4

$

$

Not available

33

Husqvarna 532133710

Arm, Suspension, Rear

$

$

Not available

34

Husqvarna 532127223

Link, Lift, LH

$

$

Not available

35

Husqvarna 873360700

Nut, Hex Jam ASF 7/16-20 UNF
(Superseded to 873610700)

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 532110447

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

37

Husqvarna 873710700

Nut, Crownlock Jam 7/16-24 UNF
(Superseded to 873610700)

$7.49

$

In Stock, only 1 left!

0

38

Husqvarna 532133840

Idler, Arm

$

$

Not available

39

Husqvarna 532129963

Washer, Spacer, Mower, Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

40

Husqvarna 532129206

Pulley, Mandrel, Single
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

41

Husqvarna 873050900

Nut, Flangelock 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

42

Husqvarna 532131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

43

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

44

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

45

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532131290

Belt
(Superseded to 532144200)

$45.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532133502

Spacer, Arm Idler

$6.49

$

In Stock, only 1 left!

0

48

Husqvarna 532133503

Stiffener, Arm Idler

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532131874

Shaft Asm., Lift

$

$

Not available

50

Husqvarna 823180606

Screw, Set, Hex Skt. 3/8-16 x 3/8

$

$

Not available

51

Husqvarna 532121719

Lever, Lift

$

$

Not available

52

Husqvarna 532125631

Grip, Handle

$7.99

$

In Stock, only 1 left!

0

53

Husqvarna 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

54

Husqvarna 532122364

Plunger, Lever, Lift
(Superseded to 532125925)

$

$

Not available

55

Husqvarna 532124874

Spring Compression
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532121719

Rod Asm., Lever

$

$

Not available

57

Husqvarna 812000022

Ring, E

$4.99

$

Usually ships in 3-10 days

0

58

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532131288

Rod, Brake RH

$8.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532131289

Rod, Brake LH

$

$

Not available

61

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

62

Husqvarna 532133551

Rod, Pivot

$8.99

$

In Stock, only 1 left!

0

63

Husqvarna 532133504

Rod, Clutch, Secondary

$

$

Not available

64

Husqvarna 872110614

Bolt, Carriage 3/8-16 x 1-3/4

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532133550

Rod, Clutch Primary
(Superseded to 532134666)

$

$

Not available

66

Husqvarna 873350600

Nut, Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

67

Husqvarna 532133205

Trunnion 3/8-16
(Superseded to 532142028)

$

$

Not available

68

Husqvarna 532124788

Spring, Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

69

Husqvarna 532127498

Bushing

$

$

Not available

70

Husqvarna 532128759

Spring
(Superseded to 532153701)

$

$

Not available

71

Husqvarna 532131813

Arm Asm., Clutch, Primary

$

$

Not available

72

Husqvarna 532132044

Knob

$

$

Not available

73

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

74

Husqvarna 812000029

Ring, Klip

$4.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532128903

Bolt, Shoulder

$6.99

$

In Stock, only 2 left!

0

76

Husqvarna 532127845

Keeper, Spring

$

$

Not available

77

Husqvarna 532127847

Arm, Clutch, Secondary

$2.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532131870

Spring, Return

$18.99

$

In Stock, only 1 left!

0

79

Husqvarna 532130840

Brake Asm., Mower, Vented

$12.99

$

Usually ships in 3-10 days

0

80

Husqvarna 817490512

Screw, Hex Thdrol 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 812000037

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532110807

Nut, Special

$

$

Not available

83

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, Qty 5

0

85

Husqvarna 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

86

Husqvarna 532110729

Rod, Adjust, Lift

$

$

Not available

87

Husqvarna 532121891

Knob, Adjust, Lift

$

$

Not available

88

Husqvarna 532124997

Key, Woodruff

$

$

Not available

89

Husqvarna 532110810

Trunnion

$

$

Not available

90

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

91

Husqvarna 532132264

Roller Nose

$44.99

$

In Stock, Qty 20+

0

92

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

93

Husqvarna 819171416

Washer 17/32 x 7/8 16 Ga.

$4.99

$

In Stock, Qty 8

0

94

Husqvarna 532132273

Bracket Asm., Nose Roller R.H.
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532132274

Bracket Asm., Nose Roller L.H.
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

Husqvarna 532132378

Deck, Complete
(Superseded to 532142820)

$

$

Not available

Husqvarna 532130794

Mandrel Asm.

Note: (Includes Key No.'s 5, 7, 8, 10 - 12, 39 And 41)

$56.99

$

In Stock, Qty 5

0
