LT-125 (136L691F190) - White Outdoor 38" Lawn Tractor (1996) Hood And Dash Parts Diagram

38" Lawn Tractor

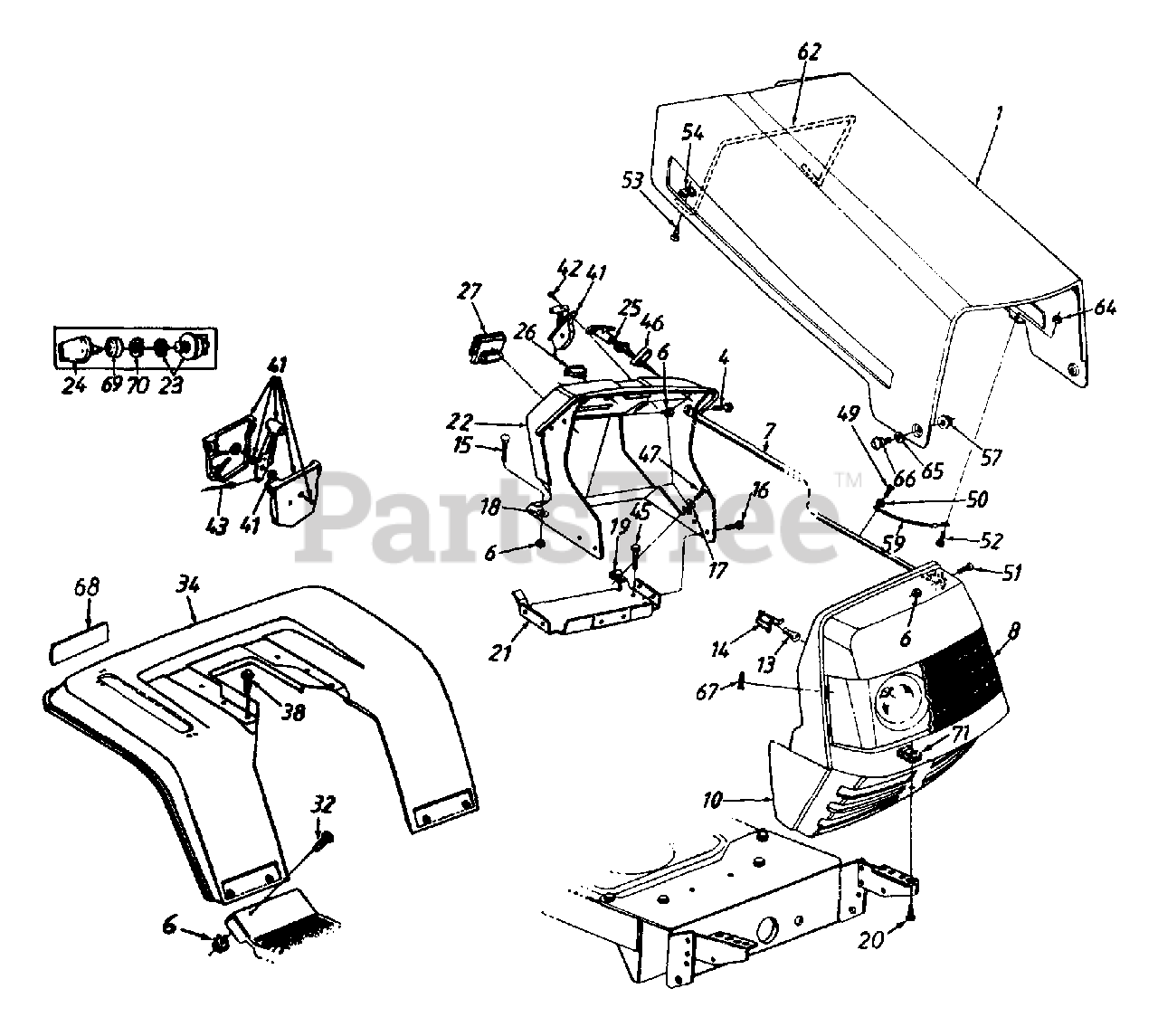

Hood And Dash Parts Diagram

  • Title

1

White Outdoor 17941

Hood

Variations

White Outdoor 17941-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17941-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17941-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17941-0648

No Longer Available HOOD - TECH GRAY (0648)

$

$

Not available

White Outdoor 17941-0650

No Longer Available HOOD - RED METALLIC (0650)

$

$

Not available

White Outdoor 17941-0662

No Longer Available HOOD - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17941-0665

No Longer Available HOOD - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17941-0667

No Longer Available HOOD - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17941-0686

No Longer Available HOOD - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

?2

White Outdoor 738-0724

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

4

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

?5

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 749-0722B

Grille Support Rod

Variations

White Outdoor 749-0722B-0637

SUPPORT-GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 731-1099A

Headlight Lens
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

?9

White Outdoor 712-0380

Flange L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

10

White Outdoor 17940B

Grille

Variations

White Outdoor 17940B-0483

No Longer Available GRILLE-STYLE 1 - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17940B-0499

No Longer Available GRILLE-STYLE 1 - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17940B-0629

No Longer Available GRILLE-STYLE 1 - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17940B-0637

GRILLE-STYLE 1 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17940B-0638

No Longer Available GRILLE-STYLE 1 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17940B-0648

No Longer Available GRILLE-STYLE 1 - TECH GRAY (0648)

$

$

Not available

White Outdoor 17940B-0650

No Longer Available GRILLE-STYLE 1 - RED METALLIC (0650)

$

$

Not available

White Outdoor 17940B-0662

No Longer Available GRILLE-STYLE 1 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17940B-0665

No Longer Available GRILLE-STYLE 1 - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17940B-0667

No Longer Available GRILLE-STYLE 1 - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17940B-0674

No Longer Available GRILLE-STYLE 1 - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 17940B-0691

GRILLE-STYLE 1 - BLACK JACK (0691)

$

$

Not available

$

$

?11

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

14

White Outdoor 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

15

White Outdoor 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 710-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 17632A

Gas Tank Support Brkt.

Variations

White Outdoor 17632A-0637

No Longer Available BRACKET-GAS TANK S - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 731-1692

Dash

$

$

Not available

23

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

24

White Outdoor 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

25

White Outdoor 746-0616A

Choke Control 23" Lg.
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

26

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

27

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

?31

White Outdoor 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

White Outdoor 783-0350

Fender

Variations

White Outdoor 783-0350-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0350-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0350-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0350-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0350-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0350-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0350-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0350-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0350-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0350-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0350-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0350-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

38

White Outdoor 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

43

White Outdoor 746-0776

Throttle Control Wire 18.5" Lg.
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 8

0

45

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

46

White Outdoor 17782

Choke Retainer

$

$

Not available

47

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

50

White Outdoor 736-0400

Fl-Wash. .218" I.D. x .62"

$5.49

$

In Stock, Qty 12

0

51

White Outdoor 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 710-0473

Truss Mach. Scr. #10-24 x .5"

$4.49

$

In Stock, only 2 left!

0

53

White Outdoor 710-0589

Truss Mach. Scr. #10-24 x .75"

$6.99

$

Usually ships in 3-6 days

0

54

White Outdoor 726-0130

Speed Nut
(Superseded to 926-0130)

$

$

Not available

57

White Outdoor 712-0380

Lock Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

59

White Outdoor 723-0302

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

62

White Outdoor 732-0714

Hood Spring

$

$

Not available

64

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

65

White Outdoor 736-0413

Spr. Wash. .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

66

White Outdoor 738-0724

Shld. Bolt
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

67

White Outdoor 714-0104

Hairpin Clip 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

69

White Outdoor 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

70

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

71

White Outdoor 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

White Outdoor 629-0308

Headlight Harness
(Superseded to 929-0469B)

Note: (Not shown)

$55.99

$

Usually ships in 3-6 days

0

White Outdoor 751-0302

Muffler
(Superseded to 951-0302)

$

$

Not available

White Outdoor 712-0250

Conduit L-Nut
(Superseded to 912-0250)

$

$

Not available
