LT-125 (132-716F190) - White Outdoor 38" Lawn Tractor (1992) Upper Frame, Deck Lift Assembly And Wheels Parts Diagram

38" Lawn Tractor

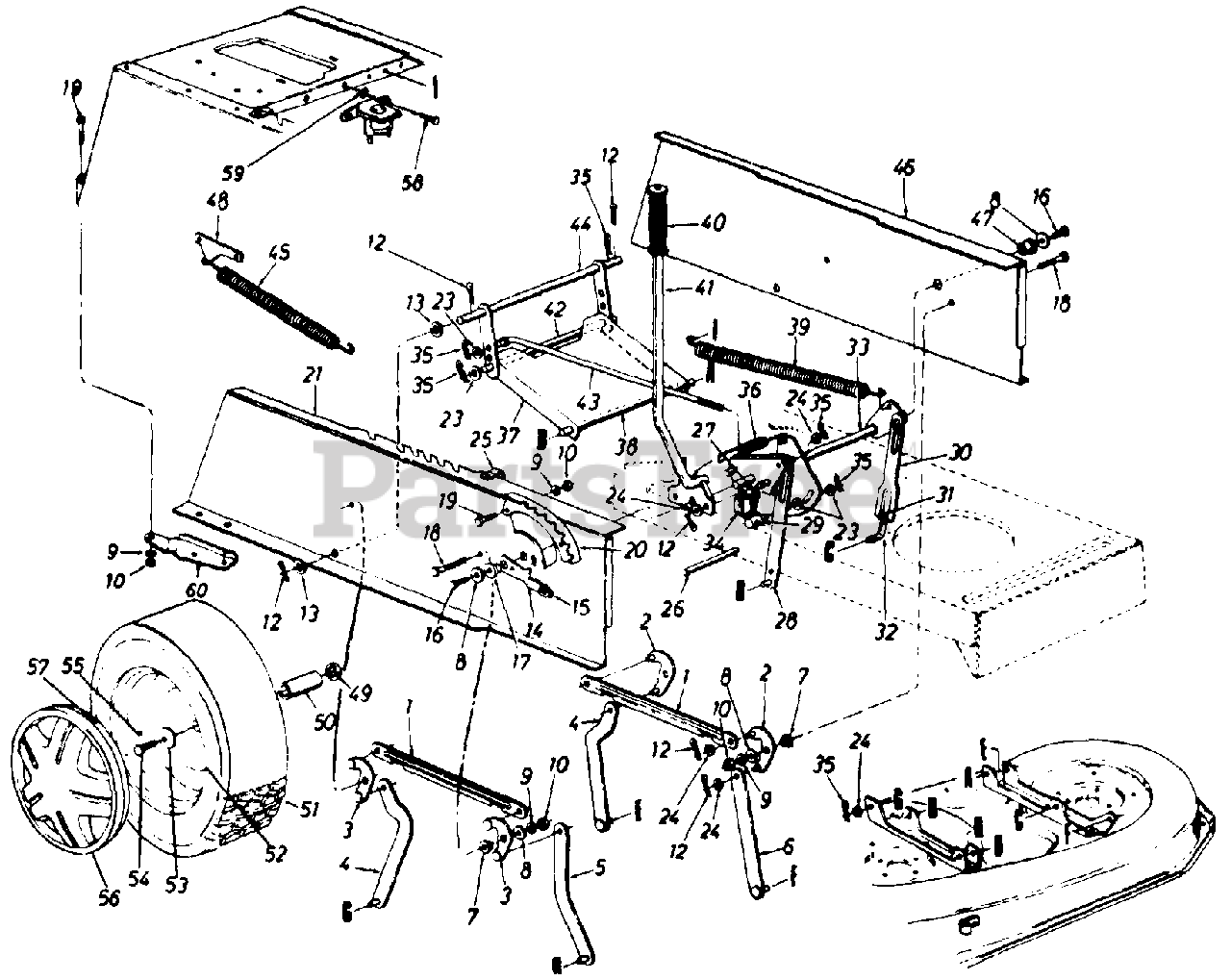

Upper Frame, Deck Lift Assembly And Wheels Parts Diagram

  • Title

1

White Outdoor 09735A

Connecting Rod

$

$

Not available

2

White Outdoor 17640

Pivot Link Ass'y. - L.H.
(Superseded to 983-0029A-0637)

$13.99

$

In Stock, only 3 left!

0

3

White Outdoor 17641

Pivot Link Ass'y. - R.H.

$

$

Not available

4

White Outdoor 17710

Deck Hanger Link Ass'y.

Variations

White Outdoor 17710-0637

HANGER LINK ASSEMBLY BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 14800A

Deck Hanger Link Ass'y.
(Superseded to 14800A-0637)

Variations

White Outdoor 14800A-0637

HANGER-DECK LINK - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 14804A

Deck Hanger Link Ass'y.

$

$

Not available

7

White Outdoor 748-0331

Shld. Spacer .318" I.D.
(Superseded to 948-0331)

$

$

Not available

8

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

9

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

12

White Outdoor 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 736-0256

Fl-Wash. .635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

14

White Outdoor 732-0412A

Deck Lift Stop
(Superseded to 983-0003)

Note: (Incl. Ref. 15)

$

$

Not available

15

White Outdoor 08540

Knob

$

$

Not available

16

White Outdoor 710-0604

Hex TT-Tap Scr. 5/16-18 x .75"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 748-0176

Flange Brg. .63" I.D.

$9.99

$

In Stock, only 1 left!

0

18

White Outdoor 710-1238

Hex Wash. Hd. Scr. 5/16-18 x .875"
(Superseded to 710-1238A)

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 17730

Index Brkt.
(Superseded to 783-04113P)

$25.99

$

In Stock, only 1 left!

0

21

White Outdoor 17622B

Upper Frame - R.H.
(Superseded to 783-0042D)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

23

White Outdoor 736-0267

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, only 1 left!

0

24

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

25

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

26

White Outdoor 738-0526

Running Board Rod

$

$

Not available

27

White Outdoor 710-3007

Hex Tap Scr. #12 x .375"

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 14802A

Link Deck Lift Ass'y.
(Superseded to 14802A-0637)

Variations

White Outdoor 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

29

White Outdoor 711-0723A

Adj. Ferrule 3/8-24 Thd.
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

30

White Outdoor 17712

Adj. Deck Lift Link
(Superseded to 17712-0637)

Variations

White Outdoor 17712-0637

Deck Adjust Link - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

31

White Outdoor 712-3066

Hex Nut 1/2-20 Thd. (Gr. 5)
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

32

White Outdoor 711-0841

Lift Link Adjuster
(Superseded to 911-0841)

$

$

Not available

33

White Outdoor 17637A

Lift Shaft Ass'y.

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 17637A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 725-0803C

Safety Switch (Deck)
(Superseded to 725-0803B)

$33.99

$

In Stock, only 1 left!

0

35

White Outdoor 714-0145

Inter. Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

36

White Outdoor 732-0637

Extension Spring
(Superseded to 932-0637)

$

$

Not available

37

White Outdoor 17636A

Stabilizer Bracket
(Superseded to 17636D-0637)

$

$

Not available

38

White Outdoor 738-0670

Shaft 1/2" Dia. x 10.28" Lg.
(Superseded to 738-0670A)

$

$

Not available

39

White Outdoor 732-0638

Extension Spring

$

$

Not available

40

White Outdoor 720-0233

Grip (Lift Handle)
(Superseded to 920-0233)

$

$

Not available

41

White Outdoor 17675

Deck Lift Handle Ass'y.
(Superseded to 97675A-0637)

$

$

Not available

42

White Outdoor 738-0669

Shaft

$

$

Not available

43

White Outdoor 747-0598

Disengagement Rod

$13.99

$

Usually ships in 3-6 days

0

44

White Outdoor 17624

Stabilizer Shaft Ass'y.
(Superseded to 97624-0637)

$

$

Not available

45

White Outdoor 732-0556

Extension Spring
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

46

White Outdoor 17623

Upper Frame - L.H.
(Superseded to 783-0043B)

$

$

Not available

47

White Outdoor 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

48

White Outdoor 17820

Deck Spring Brkt.

$

$

Not available

49

White Outdoor 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 731-1086

Sleeve .75" I.D. x 1.0" O.D.
(Superseded to 731-1086A)

$10.99

$

In Stock, only 1 left!

0

51

White Outdoor 734-1675

Wheel Ass'y. Comp.

Variations

White Outdoor 734-1675-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0911

WHL ASSY 20 X 8 - Carlisle Gray (0911)

$447.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0945

WHL ASSY 20 X 8 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0912

WHL ASSY 20 X 8 - Dico Gray (0912)

$

$

Not available

White Outdoor 734-1675-0914

WHL ASSY 20 X 8 - Cheng Gray (0914)

$

$

Not available

White Outdoor 734-1675-0931

WHL ASSY 20 X 8 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1675-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-1675-0944

No Longer Available WHEEL ASSY W/TIRE - Cheng Yellow (0944)

$

$

Not available

White Outdoor 734-1675-0981

WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

White Outdoor 734-1675-0985

WHEEL ASSY 20X8X8 - Duro Green (0985)

$

$

Not available

$420.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1596

Tire Only

Variations

White Outdoor 734-1596-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1596-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1596-0906

TIRE 20X8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1596-0901

TIRE 20 X 8 - Carlisle (0901)

$

$

Not available

White Outdoor 734-1596-0904

TIRE 20 X 8 CHENG - Cheng (0904)

$

$

Not available

$200.99

$

Usually ships in 3-6 days

0

52

White Outdoor 734-0603A

Wheel Rim Only
(Superseded to 634-04369)

$134.99

$

Usually ships in 3-6 days

0

53

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 710-0627

Hex L-Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 734-1757

Hub Cap

$

$

Not available

57

White Outdoor 727-0425B

Spring Clip
(Superseded to 927-0425A)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

58

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

60

White Outdoor 17668

Axle Support Brkt. - R.H.
(Superseded to 17668A-0637)

Variations

White Outdoor 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17669

Axle Support Brkt. - L.H.
(Superseded to 17669A-0637)

Note: (Not shown)

Variations

White Outdoor 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
