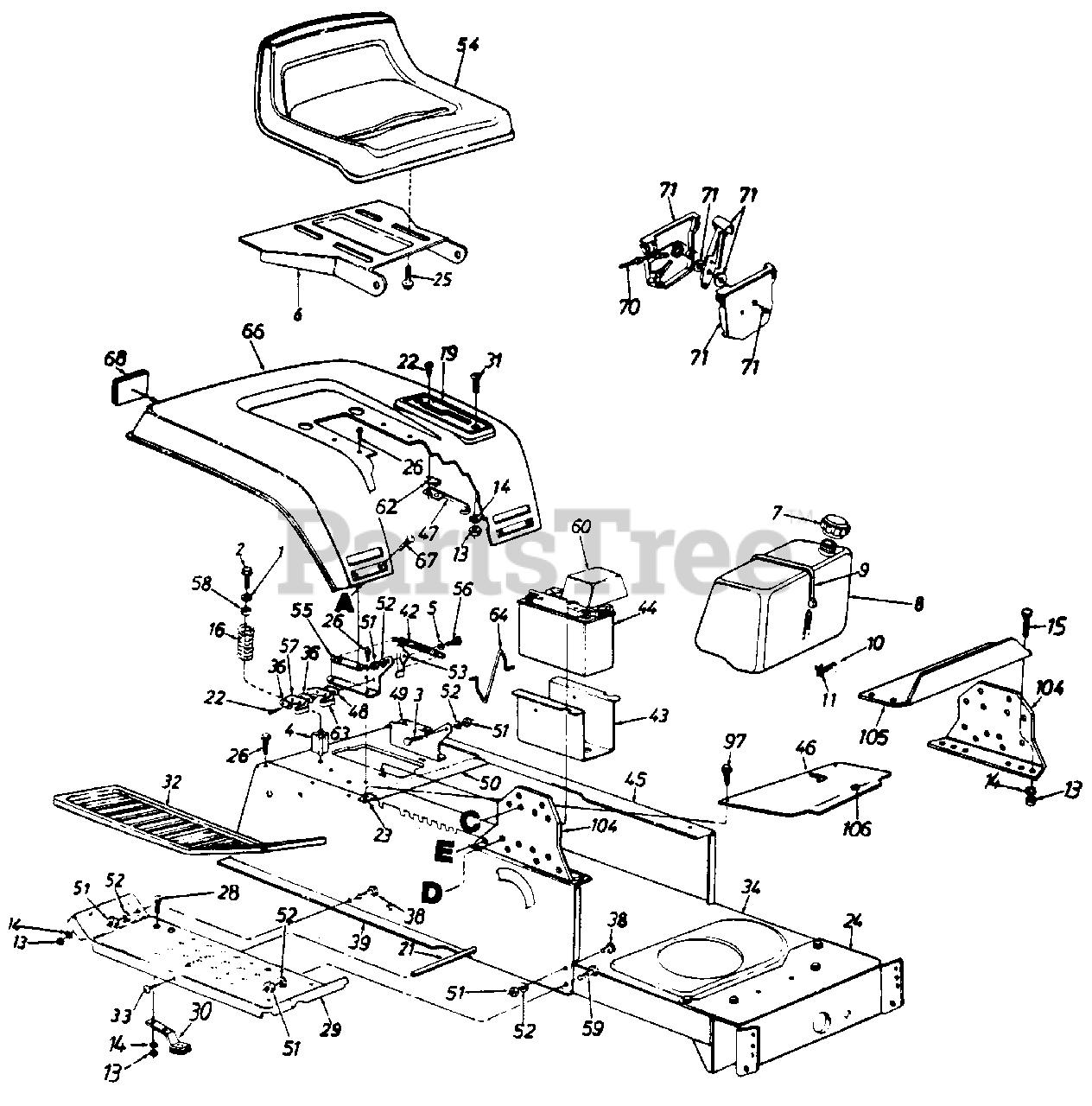

LT-125 (131-706F190) - White Outdoor 38" Lawn Tractor (1991) Body Assembly Parts Diagram

38" Lawn Tractor

Body Assembly Parts Diagram

  • Title

1

White Outdoor 736-0159

Fl-Wash. .344" l.D. x .875"

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-1208

Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg.

$6.99

$

In Stock, only 2 left!

0

3

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

4

White Outdoor 748-0347

Spring Spacer
(Superseded to 748-0347A)

$

$

Not available

5

White Outdoor 736-0141

Spr-Wash. .445" l.D. x .75
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

7

White Outdoor 751-3071

Fuel Cap w/o Gasket
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

8

White Outdoor 751-0553

Fuel Tank
(Superseded to 751-0555B)

$

$

Not available

9

White Outdoor 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

White Outdoor 751-0535-15

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

11

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0329

L-Wash. 1/4" l.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 732-0672

Compression Spring
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

19

White Outdoor 731-1053A

Speed Control Index Brkt.
(Superseded to 931-1734)

$

$

Not available

21

White Outdoor 738-0526

Running Board Rod

$

$

Not available

22

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

24

White Outdoor 17621

Front Pivot Brkt.
(Superseded to 783-0041C)

$77.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0623

Hex Tap Scr. 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 17770

Running Board
(Superseded to 17770H)

Note: (R.H. & L.H.)

$

$

Not available

30

White Outdoor 761-0168A

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

31

White Outdoor 710-0924

Truss Mach. Scr. 1/4-20 x ,75" Lg.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 731-0911

Rubber Foot Pad-L.H.

$

$

Not available

White Outdoor 731-0912

Rubber Foot Pad-R.H.

$

$

Not available

33

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

34

White Outdoor 17620B

Lower Frame

$

$

Not available

36

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

38

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 17622A

483/N Upper Frame-R.H.
(Superseded to 783-0042D)

$

$

Not available

42

White Outdoor 732-0581

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

43

White Outdoor 17952

Battery Tray
(Superseded to 17952A-0637)

$

$

Not available

44

White Outdoor 725-0514A

12-V BaKery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

45

White Outdoor 17623

483/N Upper Frame-L.H.
(Superseded to 783-0043B)

$

$

Not available

46

White Outdoor 17775

Shift Cover

$

$

Not available

47

White Outdoor 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

48

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

49

White Outdoor 17951

Seat Pivot Brkt. Support-L.H.
(Superseded to 17951A-0637)

Variations

White Outdoor 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

50

White Outdoor 17953

Hitch Plate

Variations

White Outdoor 17953-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16n l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

54

White Outdoor 757-0351

Seat

$

$

Not available

55

White Outdoor 17950

Seat Pivot Brkt. Support-R.H.
(Superseded to 17950A-0637)

Variations

White Outdoor 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

56

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

58

White Outdoor 722-0160

Bushing

$

$

Not available

59

White Outdoor 710-0650

Hex Wash. Hd. Scr. 5/16-18 x .87" Lg

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 731-1200

BaKery Cover

$

$

Not available

62

White Outdoor 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

63

White Outdoor 725-1439

Safety Switch

Note: (Seat)

$8.49

$

In Stock, Qty 10

0

64

White Outdoor 732-0674

BaKery Tray Clip

$

$

Not available

66

White Outdoor 17328

Fender

Variations

White Outdoor 17328-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17328-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17328-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17328-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

White Outdoor 17328-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

67

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .62" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

68

White Outdoor 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

70

White Outdoor 746-0501

ThroKle Wire

$17.99

$

In Stock, only 1 left!

0

71

White Outdoor 831-0823A

ThroKle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

97

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x 5" Lg.

$4.49

$

Usually ships in 3-6 days

0

104

White Outdoor 17300D

Dash Support Brkt.

Variations

White Outdoor 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

105

White Outdoor 17633

Gas Tank Support Brkt.

$

$

Not available

106

White Outdoor 731-0405

Snap Bushing

$

$

Not available
