LT 1238 (954567024-B) - Husqvarna Lawn Tractor (2001-03) Steering Parts Diagram

Lawn Tractor

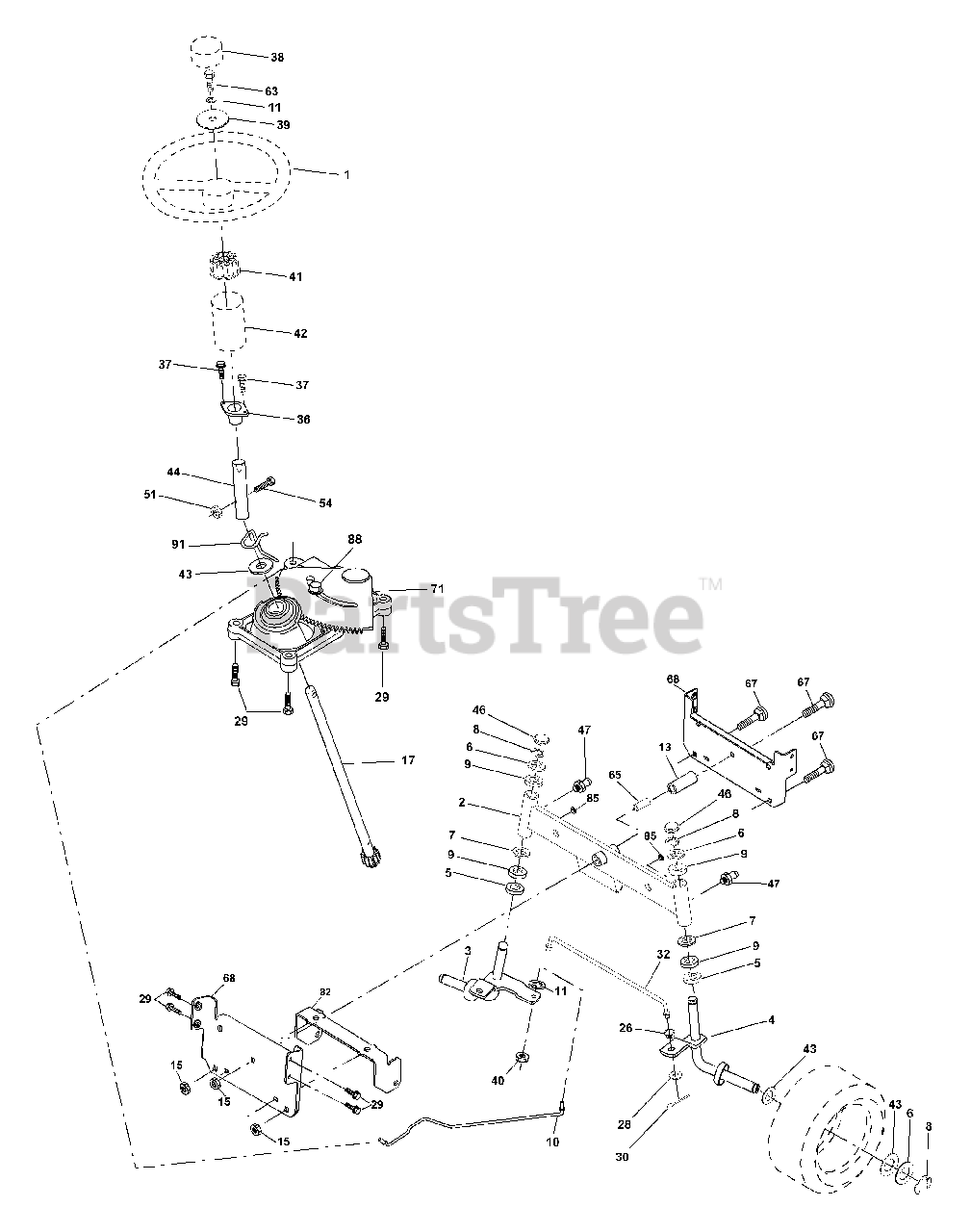

Steering Parts Diagram

  • Title

1

Husqvarna 532124415

Wheel Steering

$

$

Not available

2

Husqvarna 532154427

Axle Asm
(Superseded to 532175131)

$68.99

$

In Stock, Qty 20+

0

3

Husqvarna 532169840

Spindle Asm LH
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

Spindle Asm RH
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

6

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 819272016

Washer 27/32 X 1-1/4 X 16 Ga

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532124937

Bearing Col Strg Blk
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

10

Husqvarna 532175121

Link Drag

$68.99

$

In Stock, only 2 left!

0

11

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

13

Husqvarna 532136518

Spacer earing Axle Front

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532145212

Hexflange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532177876

Shaft Asm Strg
(Superseded to 532407600)

$

$

Not available

26

Husqvarna 532126847

Bushing Link Drag Blk LR

$5.99

$

In Stock, only 2 left!

0

28

Husqvarna 819131416

Washer 13/32 X 7/8 X 16 Ga
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

32

Husqvarna 532130465

Rod Tie Wire Form 19 75 Mech
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

36

Husqvarna 532155099

Bushing Strg 5/8 Id Dash
(Superseded to 532155106)

$10.99

$

In Stock, Qty 12

0

37

Husqvarna 532152927

Screw

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 532124416

Cap Wheel Steer

$

$

Not available

39

Husqvarna 819133812

Washer 13/32 x 2-3/8 x 12 Ga.
(Superseded to 583789501)

$

$

Not available

40

Husqvarna 532124701

Nut Lock Center 3/8-24un
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532100711

Adaptor Wheel Strg
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

42

Husqvarna 532169634

Boot Dash Mtl Steering Blk
(Superseded to 532145054)

$

$

Not available

43

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532153720

Extension Steering
(Superseded to 532153721)

$

$

Not available

46

Husqvarna 532121232

Cap Spindle Fr Top Blk

$4.99

$

In Stock, Qty 8

0

47

Husqvarna 532124836

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

51

Husqvarna 873800500

Nut Lock Hex W/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 874780520

Bolt Fin Hex 3/8-16unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 874780616

Bolt Fin Hex 3/8-16unc x 1 Gr.5

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532160367

Spacer Brace Axle
(Superseded to 532414736)

$6.99

$

In Stock, only 4 left!

0

67

Husqvarna 872140618

Bolt Fin Hex 5/8-11 unc x 2-3/4
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

68

Husqvarna 532169827

Brace Axle

$21.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532175146

Steering Asm

$182.99

$

In Stock, only 3 left!

0

82

Husqvarna 532169835

Bracket Susp Chassis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532133835

Fastener Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

88

Husqvarna 532175118

Bolt shoulder 7/16-20

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532175553

Clip Steering

$13.99

$

In Stock, only 1 left!

0
