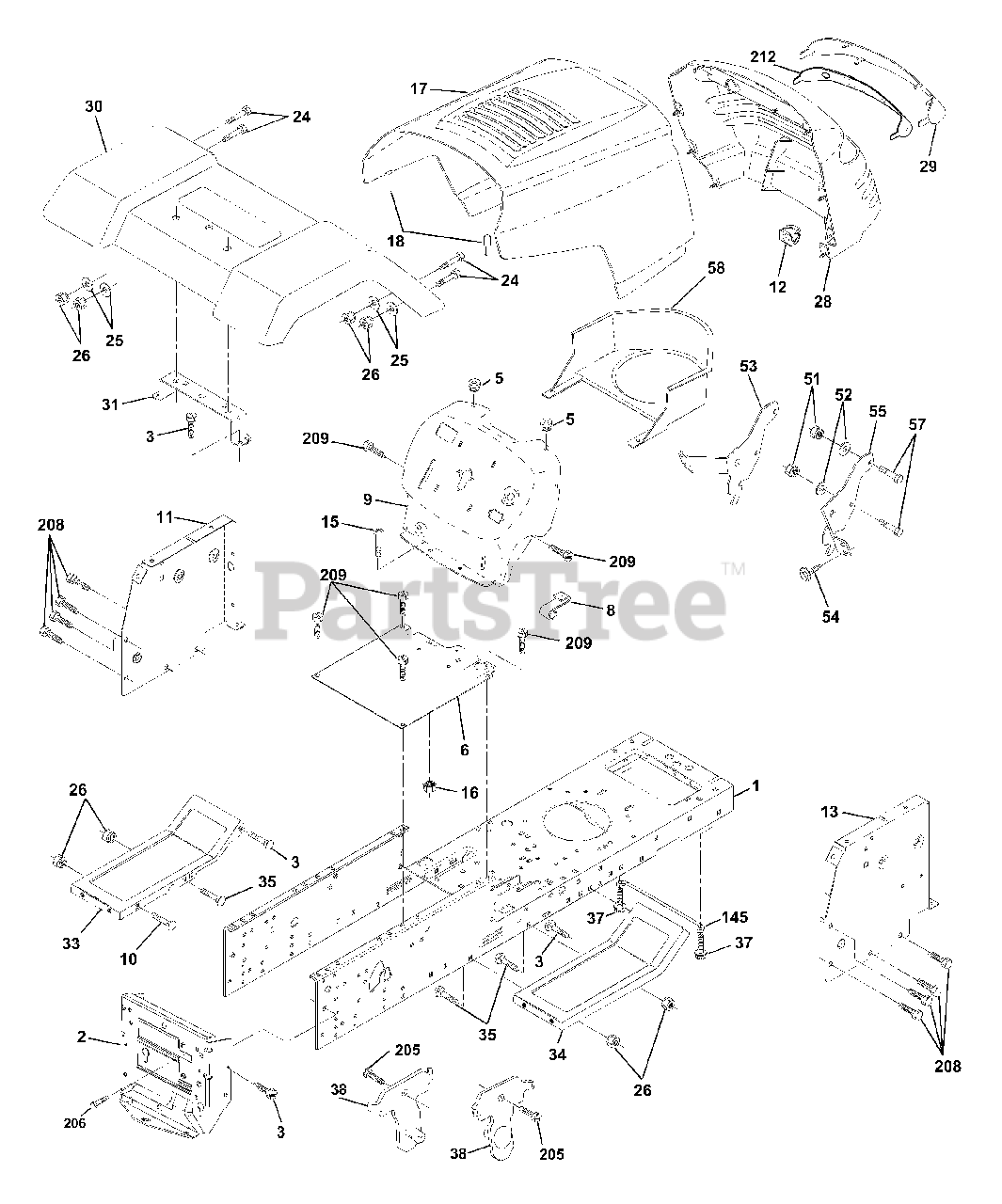

LT 1238 (954567024-B) - Husqvarna Lawn Tractor (2001-03) Chassis Parts Diagram

Lawn Tractor

Chassis Parts Diagram

  • Title

1

Husqvarna 532174620

Chassis

$136.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

Drawbar

$43.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 532155272

Bumper, Hood/Dash

$7.49

$

In Stock, only 3 left!

0

6

Husqvarna 532155923

Saddle

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532155138

Clip Retainer Slide-On

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532171796

Dash

$

$

Not available

10

Husqvarna 872140608

Bolt, Carriage 3/8-16 x 1
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532155927

Panel Dash LH
(Superseded to 532174996)

$

$

Not available

12

Husqvarna 532145660

Clip Tinnerman Grille P.L

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 532173025

Panel Slkscr Dash RH

$

$

Not available

15

Husqvarna 874180512

Screw Mach TRHD 5/16-18uncx3/4

$

$

Not available

16

Husqvarna 873510500

Nut Keps 5/16-18 Unc
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532162237

Hood
(Superseded to 532159639)

$61.99

$

In Stock, only 2 left!

0

18

Husqvarna 532126938

Bumper Hood

$

$

Not available

24

Husqvarna 874780616

Bolt Fin Hex 3/8-16unc X 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

Nut Lock Hex w/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532143499

Grille/Lens Asm.
(Superseded to 532179100)

$

$

Not available

29

Husqvarna 532168154

Lens Grille Private Label
(Superseded to 532140273)

$

$

Not available

30

Husqvarna 532177025

Fender
(Superseded to 532169467)

$

$

Not available

31

Husqvarna 532136619

Bracket Fender Repl 109873x

$

$

Not available

33

Husqvarna 532153539

Footrest Pnt LH Perf
(Superseded to 532442578)

$43.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532153538

Footrest Pnt RH Perf
(Superseded to 532182508)

$

$

Not available

35

Husqvarna 872110606

Bolt Rdhd Sht Sqnk 3/8-16 X3/4

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

Bracket Asm. Pivot Mower Rear

$11.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873800400

Nut Lock W/Insert 1/4-20unc
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 819091416

Washer 9/32 x 7/8x16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532144697

Bracket Grille Lh

$

$

Not available

54

Husqvarna 532161464

Screw Hex 8-18 x 7/8

$

$

Not available

55

Husqvarna 532144696

Bracket Grille Rh

$

$

Not available

57

Husqvarna 874780412

Bolt Fin Hex 1/4-20 unc x .75
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

Duct Air Engine PL/LT

$

$

Not available

145

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

205

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

206

Husqvarna 532170165

Bolt Shoulder 5/16-18

$4.99

$

In Stock, Qty 5

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 817000612

Screw Hex Wsh Thdrol 3/8-16

$4.99

$

In Stock, only 2 left!

0

212

Husqvarna 532156229

Insert Lens Reflect
(Superseded to 532174503)

$26.99

$

Usually ships in 3-10 days

0

Husqvarna 532005479

Plug Button Blk 359 Dia Choke

$5.99

$

Usually ships in 3-10 days

0
