LT 1238 (954567024-A) - Husqvarna Lawn Tractor (2000-10) Mower Deck Parts Diagram

Lawn Tractor

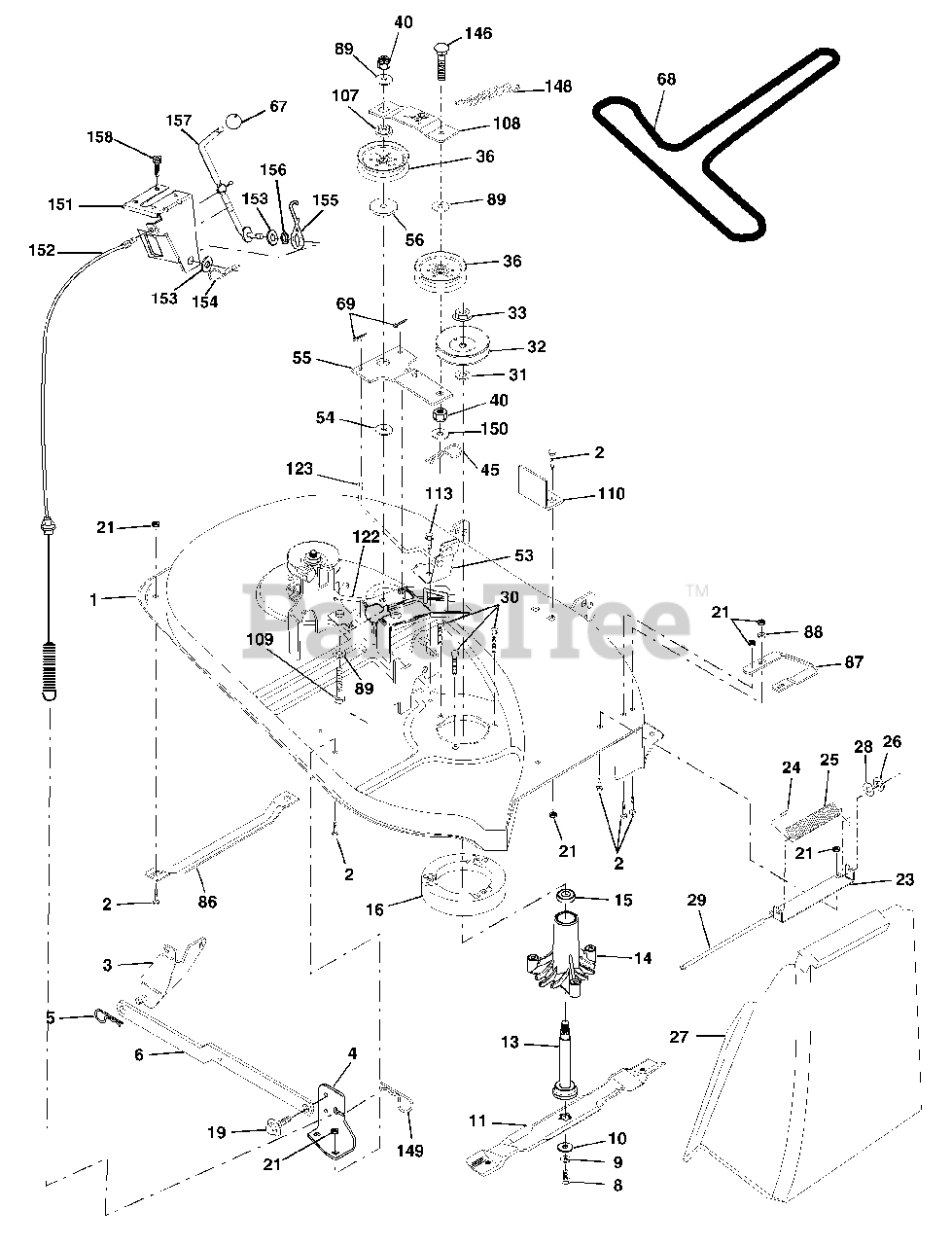

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532170280

Mower Housing Assembly
(Superseded to 532176028)

$

$

Not available

2

Husqvarna 872140506

Bolt Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

Bracket Asm Fr. Sway Bar

$12.99

$

In Stock, only 1 left!

0

4

Husqvarna 532169970

Bracket Deck Sway Bar 38"/42"

$7.49

$

In Stock, only 2 left!

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532130832

Arm, Suspension, Rear
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 532850857

Bolt 3/8-24 x 1.25 Grade 8

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 810030600

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

Washer,Hardened

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532138497

Blade Mower

$26.99

$

In Stock, Qty 9

0

13

Husqvarna 532137645

Shaft Assembly, Mandrel, Vented
(Superseded to 532137646)

Note: (Includes Key Number 6)

$34.99

$

In Stock, only 2 left!

0

14

Husqvarna 532128774

Housing, Mandrel, Vented

$34.99

$

In Stock, only 2 left!

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 7

0

16

Husqvarna 532140329

Stripper, Vented Mower Deck
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532132827

Bolt, Shoulder

$

$

Not available

21

Husqvarna 873680500

Nut
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532137607

Bracket, Mower Deflector

$6.49

$

In Stock, only 2 left!

0

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

Spring, Torsion, Deflector

$7.99

$

In Stock, only 3 left!

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532175943

Shield, Deflector
(Superseded to 532106736)

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Gauge

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532106735

Rod, Hinge

$10.99

$

In Stock, only 1 left!

0

30

Husqvarna 532157722

Screw Thdrol. Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

Washer, Spacer
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532153532

Pulley, Mandrel
(Superseded to 532173435)

$22.99

$

In Stock, Qty 9

0

33

Husqvarna 532137266

Nut, Toplock 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

36

Husqvarna 532131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

40

Husqvarna 73680600

Nut, Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532124788

Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

53

Husqvarna 532130840

Brake Assembly

$12.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532133943

Washer,Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532133840

Idler Arm Assembly

$

$

Not available

56

Husqvarna 532165723

Spacer, Retainer

$6.99

$

In Stock, only 2 left!

0

67

Husqvarna 532106932

Knob

$7.99

$

In Stock, Qty 5

0

68

Husqvarna 532144200

V-Belt, 42" Mower

$45.99

$

Usually ships in 3-10 days

0

69

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

86

Husqvarna 532125074

Runner,LH
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532128772

Runner,RH

$

$

Not available

88

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga
(Superseded to 734116301)

$3.99

$

In Stock, Qty 18

0

89

Husqvarna 819131612

Washer 13/32 x 1 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

107

Husqvarna 532133502

Spacer Retainer

$6.49

$

In Stock, only 1 left!

0

108

Husqvarna 532133503

Stiffener, Idler Arm

$6.49

$

Usually ships in 3-10 days

0

109

Husqvarna 874760640

Bolt, Hex Hd 3/8-16 x 2-1/2

$

$

Not available

110

Husqvarna 532142587

Upstop Deck Front 38"

$

$

Not available

113

Husqvarna 817060512

Screw 5/16-1/ x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532131289

Rod, Brake LH

$

$

Not available

123

Husqvarna 532169971

Rod, Brake RH

$8.99

$

Usually ships in 3-10 days

0

146

Husqvarna 532165891

Bolt Carriage Idler
(Superseded to 532173443)

$7.49

$

In Stock, Qty 8

0

148

Husqvarna 532169022

Spring Return Idler

$5.99

$

In Stock, Qty 9

0

149

Husqvarna 532165898

Retainer Spring Yellow

$7.49

$

Usually ships in 3-10 days

0

150

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

151

Husqvarna 532169670

Bracket Clutch Cable

$

$

Not available

152

Husqvarna 532172758

Clutch Cable 38"/46"

$87.99

$

In Stock, only 1 left!

0

153

Husqvarna 532169674

Washer Flat 3/8" Type B
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Husqvarna 532169675

Spring Retainer

$7.49

$

In Stock, only 2 left!

0

155

Husqvarna 532169671

Spring Retention LVR CLTCH CAB

$6.49

$

Usually ships in 3-10 days

0

156

Husqvarna 532169672

Spacer Clutch Cable

$6.49

$

Usually ships in 3-10 days

0

157

Husqvarna 532169669

Rod Clutch Cable 3/8"

$

$

Not available

158

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20 x 5/8
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

Husqvarna 532130794

Mandrel Assembly

Note: (Includes Key Numbers 12-15, 17-19, 31 and 33)

$56.99

$

In Stock, Qty 7

0

Husqvarna 532170317

Mower Deck, Complete
(Superseded to 532171665)

$

$

Not available
