LT 12332 (82038) - Snapper 33" Lawn Tractor, 12.5hp Shifter Assembly Parts Diagram

33" Lawn Tractor, 12.5hp

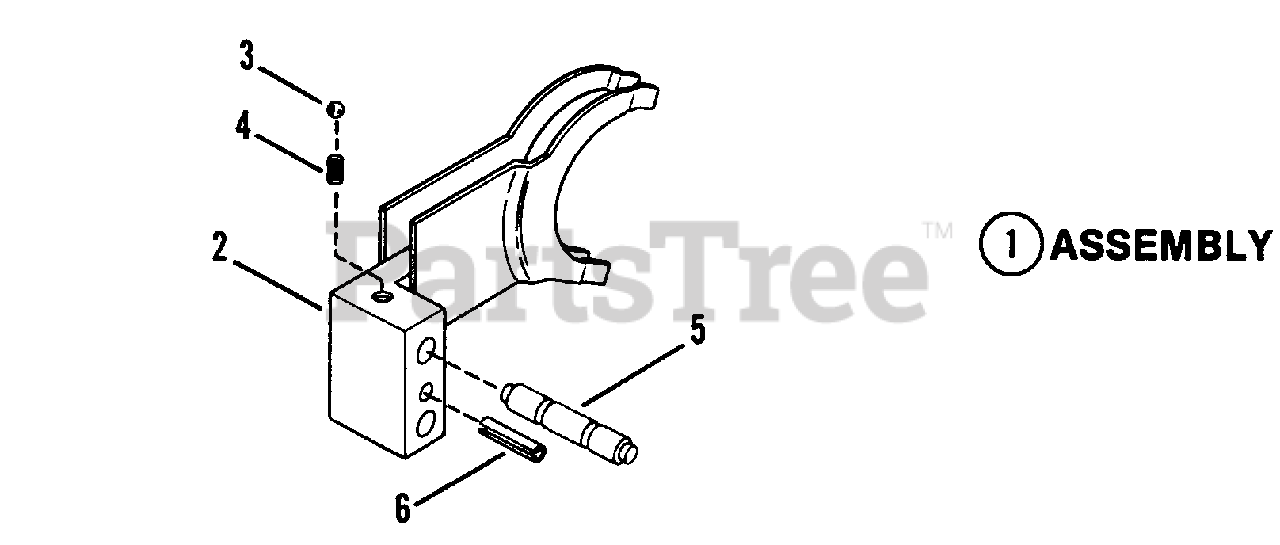

Shifter Assembly Parts Diagram

  • Title
1

Snapper 7057330

ASSEMBLY, HI-LO SHIFTER
(Superseded to 7057330YP)

Note: (Includes items 2 thru 6)

$148.99

$

Usually ships in 2-12 days

0

2

Snapper 7047833

FORK, Shift
(Superseded to 7047833YP)

$153.99

$

Usually ships in 2-12 days

0

3

Snapper 7014469

BALL, Detent
(Superseded to 7014469YP)

$2.99

$

Usually ships in 2-12 days

0

4

Snapper 7023252

SPRING, Detent Ball
(Superseded to 7023252YP)

Note: Was 14500

$6.99

$

Usually ships in 2-12 days

0

5

Snapper 7021900

GUIDE-PIN, Detent
(Superseded to 7021900YP)

$30.99

$

Usually ships in 2-12 days

0

6

Snapper 7090842

ROLL-PIN, 1/4x1-1/4
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0
