LT 12332 (82038) - Snapper 33" Lawn Tractor, 12.5hp Electric Clutch Assembly Parts Diagram

33" Lawn Tractor, 12.5hp

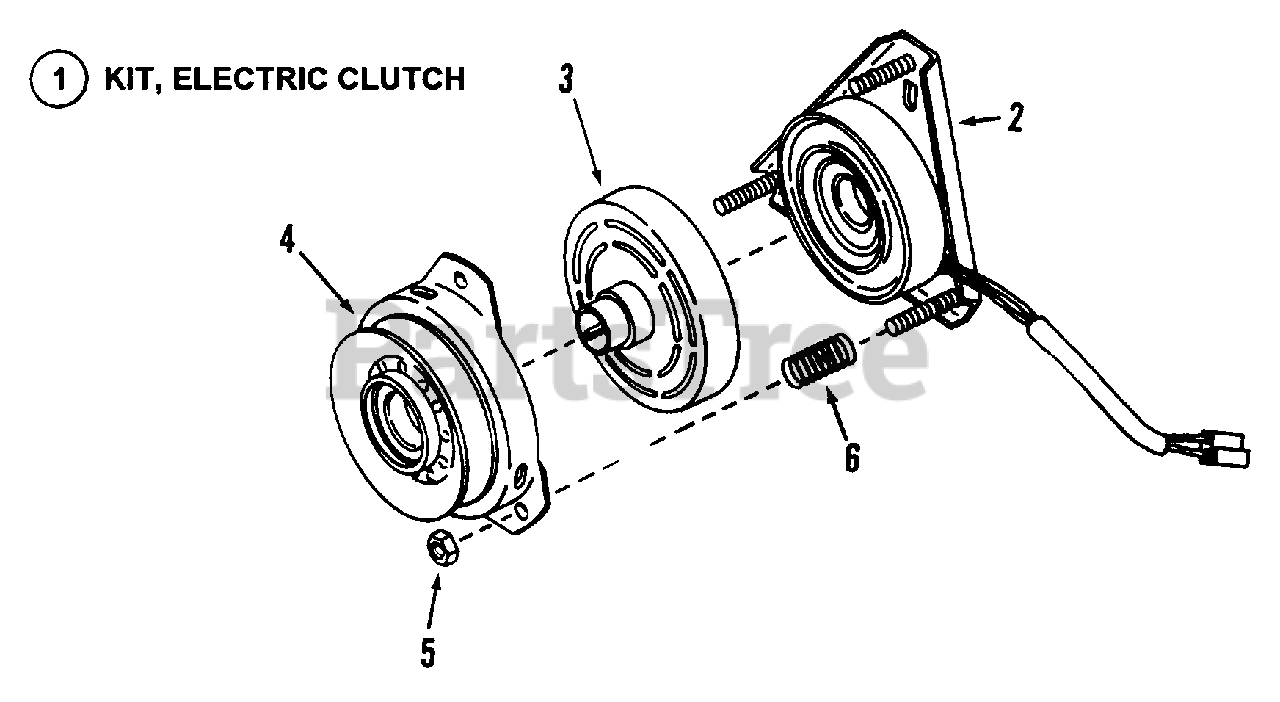

Electric Clutch Assembly Parts Diagram

  • Title
1

Snapper 7053679

KIT, Electric Clutch
(Superseded to 7053679YP)

Note: (Includes the Following items for Snapper #1-9982 Warner Electric Model I-5210-3)

$396.99

$

Usually ships in 2-12 days

0

2

Snapper 7014947

FIELD COIL

Note: (Includes Ball Bearing)

$

$

Not available

3

Snapper 7014948

ROTOR
(Superseded to 7014948YP)

$153.99

$

Usually ships in 2-12 days

0

4

Snapper 7014949

ASSEMBLY, Arm-Pulley
(Superseded to 7014949YP)

Note: (Includes Ball Bearing)

$295.99

$

In Stock, only 1 left!

0

5

Snapper 7090854

NUT, 3/8-24 Hex Nylok
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

6

Snapper 7014950

COIL SPRING
(Superseded to 7014950YP)

$6.99

$

Usually ships in 2-12 days

0
