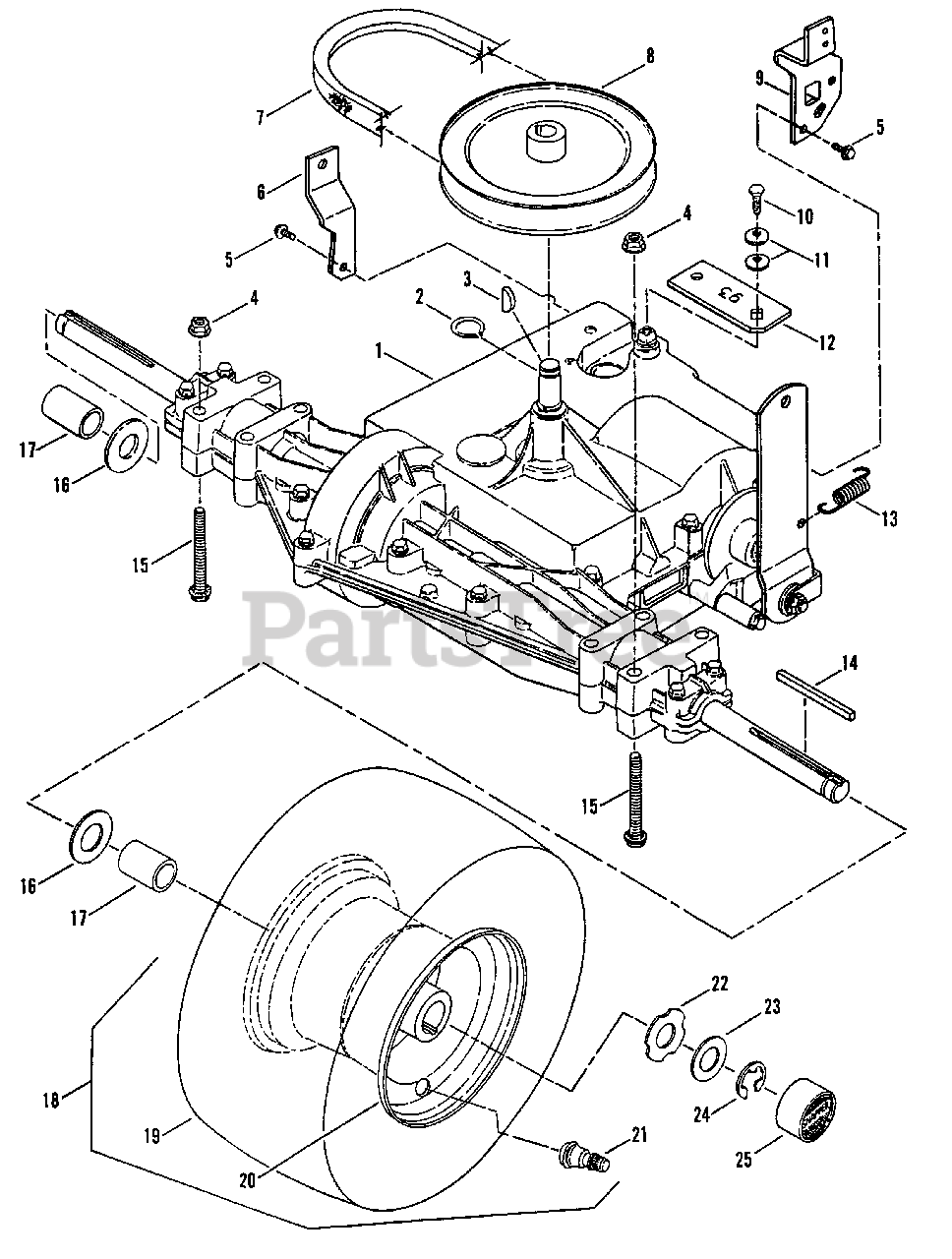

LT 120G30BB (80641) - Snapper 30" Lawn Tractor, 12hp Transmission Group (Gear Drive) & Rear Wheels Parts Diagram

30" Lawn Tractor, 12hp

Transmission Group (Gear Drive) & Rear Wheels Parts Diagram

  • Title

1

Snapper 7028760

TRANSAXLE, Gear Drive, Peerless Mod. MST205-514, 5-Speed

Note: (Models LT120G30BB, LT125G33BB, & ELT125G33BB) Vender Part Number

$

$

Not available

2

Snapper 7012763

RING, Retaining
(Superseded to 7012763SM)

$4.49

$

In Stock, Qty 6

0

3

Snapper 7010211

KEY, Woodruff, 3/16 x 3/4", No. 9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

6

Snapper 7033951

BRACKET, Torque

$

$

Not available

7

Snapper 7029641

BELT, Traction Drive, 97.75" EL
(Superseded to 7029641YP)

Note: (Models LT120G30BB, LT125G33BB, & ELT125G33BB) (Gear Drive Only!)

$65.99

$

In Stock, only 1 left!

0

8

Snapper 7024831

PULLEY, Drive
(Superseded to 7024831YP)

$47.99

$

Usually ships in 2-12 days

0

9

Snapper 7034439

BRACKET, Axle/Spool

$

$

Not available

10

Snapper 7091165

BOLT, 1/4-28 x 5/8" Hex Head
(Superseded to 7091165YP)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 7090746

WASHER, Bellville
(Superseded to 7090746YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7033754

ARM, Shift Link Lever
(Superseded to 7033754YP)

$39.99

$

Usually ships in 2-12 days

0

13

Snapper 7022437

SPRING, Brake Return
(Superseded to 7022437YP)

$3.99

$

In Stock, only 1 left!

0

14

Snapper 7017173

KEY, Square, 3/16 x 3/16 x 2-1/2"
(Superseded to 7017173YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7090702

BOLT, 5/16-18 x 2-1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7031036

WASHER, Flat
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7024857

SPACER

$

$

Not available

18

Snapper 7052845

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058518YP)

Note: (Models LT120G30BB, LT125G33BB, & ELT125G33BB) (Includes items 19, 20, & 21)

$208.99

$

Usually ships in 2-12 days

0

19

Snapper 7022688

TIRE, 18 x 7.50
(Superseded to 7022688YP)

Note: Was 26112 (Models LT120G30BB, LT125G33BB, & ELT125G33BB)

$131.99

$

Usually ships in 2-12 days

0

20

Snapper 7024453

RIM, 8 x 5.375
(Superseded to 7024453YP)

Note: (Models LT120G30BB, LT125G33BB, & ELT125G33BB)

$112.99

$

Usually ships in 2-12 days

0

21

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

22

Snapper 7029618

WASHER, Hub-Cap Retaining

$3.99

$

In Stock, only 3 left!

0

23

Snapper 7029617

WASHER, Flat, .07 x .77 I.D. x 1.31 O.D.
(Superseded to 7029617YP)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7012705

RING, Retaining

$

$

Not available

25

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0
