LT 120G30BB (80641) - Snapper 30" Lawn Tractor, 12hp 30" Cutting Deck, Belts, Brakes Parts Diagram

30" Lawn Tractor, 12hp

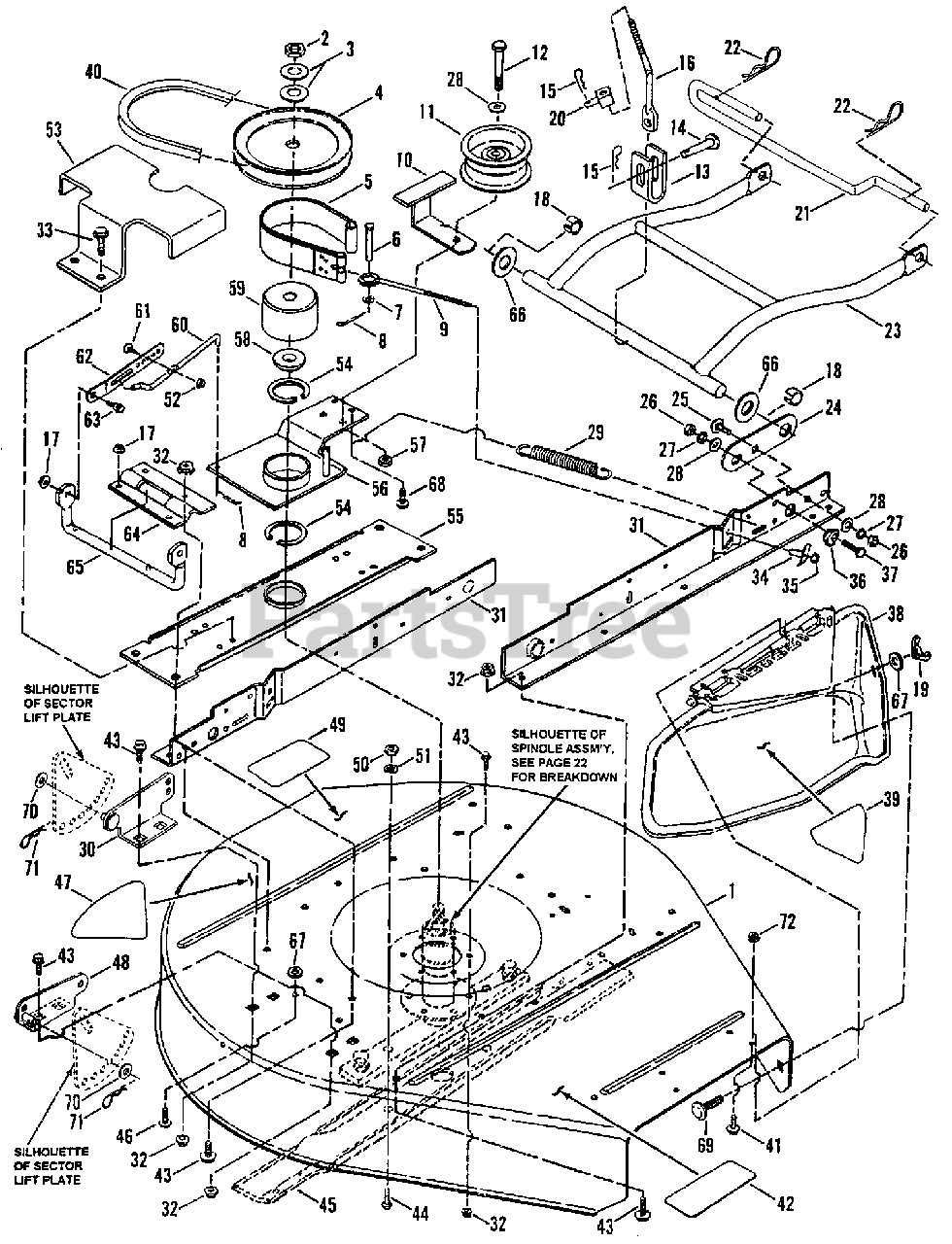

30" Cutting Deck, Belts, Brakes Parts Diagram

  • Title

1

Snapper 7053115

DECK, 30" Cutting
(Superseded to 7053115YP)

Note: Was 53689 (Includes 42 & 49)

$305.99

$

Usually ships in 2-12 days

0

2

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

3

Snapper 7032027

WASHER, Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

4

Snapper 7022715

PULLEY, Spindle, 6 1/2" O.D.
(Superseded to 7022715YP)

$29.99

$

Usually ships in 2-12 days

0

5

Snapper 7052886

ASSEMBLY, Brake Band
(Superseded to 7503086YP)

$35.99

$

In Stock, only 1 left!

0

6

Snapper 7014304

PIN, 1/4 x 1-1/4" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7091294

WASHER, Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7022879

BOLT, 1/4-20 Eye
(Superseded to 7022879YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7075346

GUIDE, Belt
(Superseded to 7075346YP)

Note: Was 41487

$42.99

$

In Stock, only 1 left!

0

11

Snapper 7075707

PULLEY, Idler 4.0" O.D. (Flat 3.25" Running Surface)
(Superseded to 7075707YP)

Note: Was 27717

$37.99

$

In Stock, only 1 left!

0

12

Snapper 7091553

SCREW, 3/8-16 x 1 3/4" Hx. Hd. Cap
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

13

Snapper 7033938

BRACKET, Front Lift Hanger
(Superseded to 7033938BMYP)

$23.99

$

Usually ships in 2-12 days

0

14

Snapper 7013460

PIN, 3/8 x 1 1/2" Clevis

$

$

Not available

15

Snapper 7091503

PIN, Hair, 3/32 x 1 19/32"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7026639

ROD, Front Lift

$

$

Not available

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7012067

RING, Front Lift Arm
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

19

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7029694

SWIVEL, Brake
(Superseded to 7029694YP)

$35.99

$

Usually ships in 2-12 days

0

21

Snapper 7027471

PIN, Front Deck Hanger

$

$

Not available

22

Snapper 7091596

PIN, .148 x 2.62" Hair
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7041613

LIFT, Front Arm
(Superseded to 7041613YP)

Note: Was 41141

$153.99

$

Usually ships in 2-12 days

0

24

Snapper 7032432

LINK, Adjustment

$

$

Not available

25

Snapper 7091547

BOLT, 3/8-16 x 3/4" Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

28

Snapper 7090122

WASHER, Flat, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7012264

SPRING, Clutch & Brake
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 16

0

30

Snapper 7041258

BRACKET, Rear Deck Lift, Left Side
(Superseded to 7041258YP)

$19.99

$

Usually ships in 2-12 days

0

31

Snapper 7033499

RAIL, 30" Cutting Deck
(Superseded to 7033499YP)

$19.99

$

Usually ships in 2-12 days

0

32

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

33

Snapper 7090361

SCREW, 5/16-18 x 5/8" S.T.
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

34

Snapper 7014303

T-NUT, 1/4-20 Thread
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

35

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

36

Snapper 7015012

ECCENTRIC, Leveling
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Hd Cap
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

38

Snapper 7052553

ASSEMBLY, Deflector
(Superseded to 7052553YP)

Note: (Includes item 39)

$243.99

$

In Stock, only 1 left!

0

39

Snapper 7013010

DECAL - DANGER (Cut Finger)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

40

Snapper 7075705

BELT, Drive, 30" Cutting Deck
(Superseded to 7075705YP)

Note: Was 22786

$49.99

$

Usually ships in 2-12 days

0

41

Snapper 7091525

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

42

Snapper 7014852

DECAL - CAUTION
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

43

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

44

Snapper 7090392

SCREW, 1/2-20 x 1" Hx. Hd. Cap
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7018069

BLADE, 30" Cutting Deck
(Superseded to 7018069BZYP)

$32.99

$

In Stock, only 4 left!

0

46

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hx. Flg. Lk.
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

47

Snapper 7023997

DECAL, 30"
(Superseded to 7104996YP)

$11.99

$

Usually ships in 2-12 days

0

48

Snapper 7041252

BRACKET, Rear Deck Lift, Right Side
(Superseded to 7041252YP)

$26.99

$

Usually ships in 2-12 days

0

49

Snapper 7014852

DECAL - CAUTION, Rotating Blades
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, Qty 5

0

50

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

51

Snapper 7090509

WASHER, 1/2 Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

52

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

53

Snapper 7033918

GUIDE, Belt

$

$

Not available

54

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

55

Snapper 7038018

BRACE, Spindle
(Superseded to 7038018AYP)

$23.99

$

Usually ships in 2-12 days

0

56

Snapper 7041311

ARM, Idler

$

$

Not available

57

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

58

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

59

Snapper 7032169

DRUM, Brake
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

60

Snapper 7024192

ROD, Link, Clutch/Brake
(Superseded to 7024192YP)

$10.99

$

Usually ships in 2-12 days

0

61

Snapper 7090584

BOLT, 1/4-20 x 1/2" Hex Fig. Lock
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

62

Snapper 7033586

BRACKET, Link, Clutch/Brake

$

$

Not available

63

Snapper 7015761

SCREW, 5/16-18 x 3/4" Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

64

Snapper 7033578

BRACKET, Pivot Arm
(Superseded to 7033578YP)

$28.99

$

Usually ships in 2-12 days

0

65

Snapper 7024183

ARM, Pivot
(Superseded to 7024183YP)

$19.99

$

Usually ships in 2-12 days

0

66

Snapper 7032027

WASHER, Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

67

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

68

Snapper 7091541

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

69

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

70

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

71

Snapper 7091503

PIN, .093 x 1.50" Hair
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

72

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

Snapper 7060735

AIR LIFT KIT
(Superseded to 7060735YP)

Note: AVAILABLE FOR 30" CUTTING DECK INCLUDES

$62.99

$

In Stock, only 1 left!

0

Snapper 7031724

AIR LIFTS
(Superseded to 7031724YP)

Note: (NOT SHOWN)

$27.99

$

Usually ships in 2-12 days

0

Snapper 7090228

SCREWS
(Superseded to 7090228SM)

Note: (NOT SHOWN)

$5.49

$

In Stock, Qty 20+

0

Snapper 7090391

WASHERS
(Superseded to 703587)

Note: (NOT SHOWN)

$4.49

$

In Stock, Qty 20+

0

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223 (NOT SHOWN)

$3.99

$

In Stock, Qty 20+

0
