LT 120G30AB (80350) - Snapper 30" Lawn Tractor, 12hp Engine Components Parts Diagram

30" Lawn Tractor, 12hp

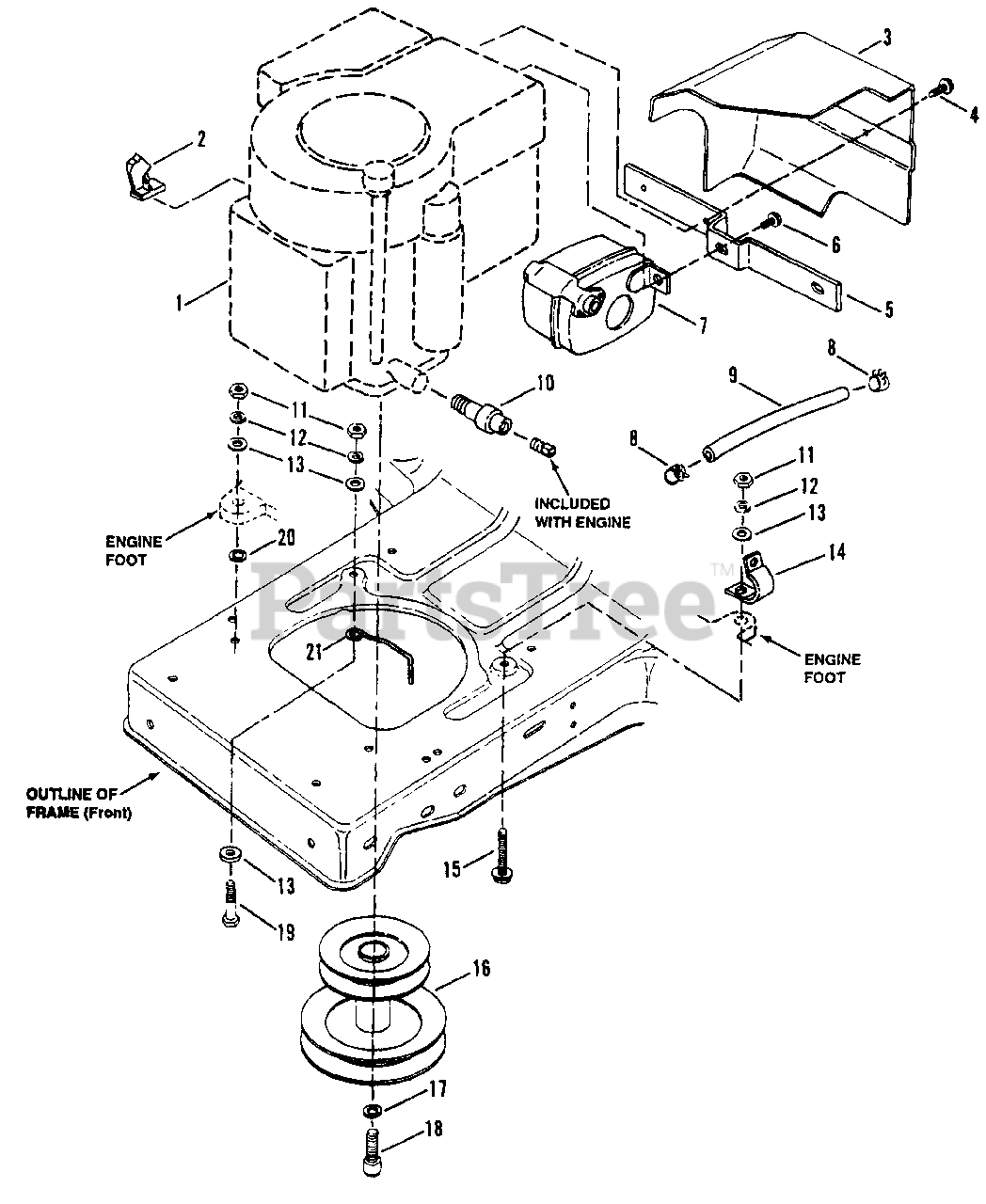

Engine Components Parts Diagram

  • Title

1

* ENGINE, B. & S., 12 HP Mod. 283707-0137-01

Note: (30" Model)

$

$

Not available

1

* ENGINE, B. & S., 12.5 HP Mod. 286707-0164-01

Note: (38" Model)

$

$

Not available

2

Snapper 7025079

CLIP, Speed

$

$

Currently unavailable

3

Snapper 7017022

HEAT SHIELD
(Superseded to 7017022YP)

$99.99

$

Usually ships in 2-12 days

0

4

Snapper 7090896

SCREW, #10-24 x 1/2" H.W.H.S.T.
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

5

Snapper 7038374

BRACKET, Heat Shield
(Superseded to 7038374YP)

$38.99

$

Usually ships in 2-12 days

0

6

Snapper 7090584

BOLT, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7041824

MUFFLER, Exhaust
(Superseded to 691874)

Note: Was 52691

$57.99

$

In Stock, only 3 left!

0

8

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7032015

LINE, Fuel, 7" Long
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

10

Snapper 7022486

EXTENSION, Oil Drain (Short)
(Superseded to 7022486YP)

$22.99

$

Usually ships in 2-12 days

0

11

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7015861

CLIP, Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7091540

SCREW, 5/16-18 x 1 1/2" H.H.C.
(Superseded to 703906)

Note: Was 90211

$4.99

$

In Stock, only 4 left!

0

16

Snapper 7022498

PULLEY ASSEMBLY

Note: (30" Model)

$

$

Not available

16

Snapper 7024686

PULLEY ASSEMBLY
(Superseded to 7024686YP)

Note: (38" Model)

$106.99

$

In Stock, only 1 left!

0

17

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7090836

SCREW, 7/16-20 x 1" H. C., Sk. Hd.

$

$

Not available

19

Snapper 7090669

SCREW, 5/16-18 x 1 3/4" H.H. Cap
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

20

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7024101

GUIDE, Belt

$

$

Currently unavailable
