LT 120G30AB (80350) - Snapper 30" Lawn Tractor, 12hp Electrical Components Parts Diagram

30" Lawn Tractor, 12hp

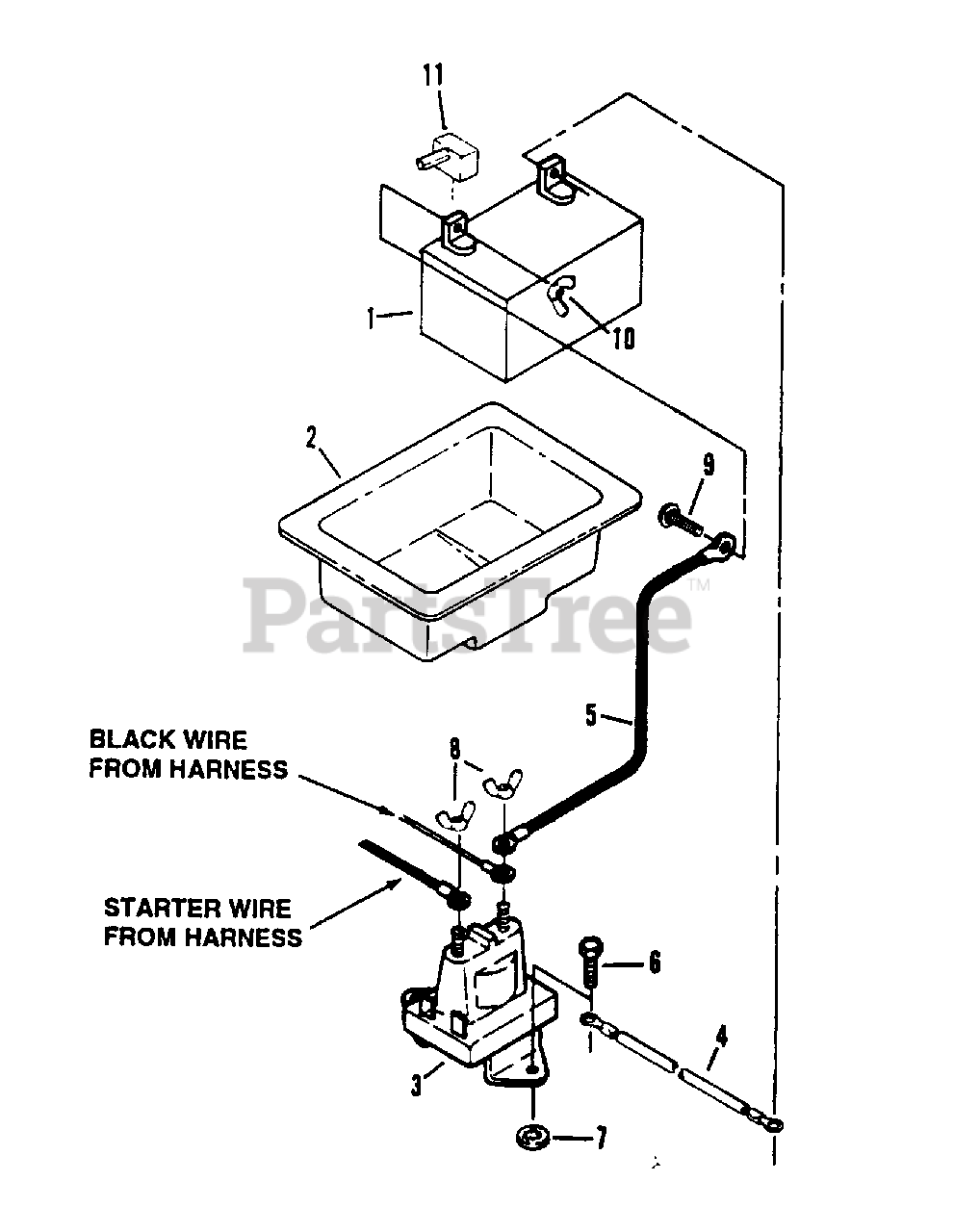

Electrical Components Parts Diagram

  • Title
1

Snapper 7060618

KIT, Battery
(Superseded to 1685215SM)

Note: (Includes 16134 Decal and Battery Without Acid)

$

$

Not available

2

Snapper 7017853

TRAY, Battery
(Superseded to 7017853YP)

$24.99

$

Usually ships in 2-12 days

0

3

Snapper 7075622

SOLENOID
(Superseded to 1755382YP)

Note: Was 18604

$29.99

$

In Stock, Qty 20+

0

4

Snapper 7026414

CABLE, Ground (Black)
(Superseded to 7026414YP)

$9.99

$

Usually ships in 2-12 days

0

5

Snapper 7014476

CABLE, Positive (Red)
(Superseded to 7014476YP)

$12.99

$

Usually ships in 2-12 days

0

6

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 11

0

7

Snapper 7012485

RETAINER, 1/4 Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7090997

NUT, 1/4-20 Locking Wing
(Superseded to 7090997YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 2 left!

0

10

Snapper 7091568

NUT, 1/4-20 Wing
(Superseded to 014X79MA)

Note: Was 90311

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7012444

COVER, Positive Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0
