LT 120D331B (80390) - Snapper 33" Lawn Tractor, 12hp Transmission Support & Components (Part 1) Parts Diagram

33" Lawn Tractor, 12hp

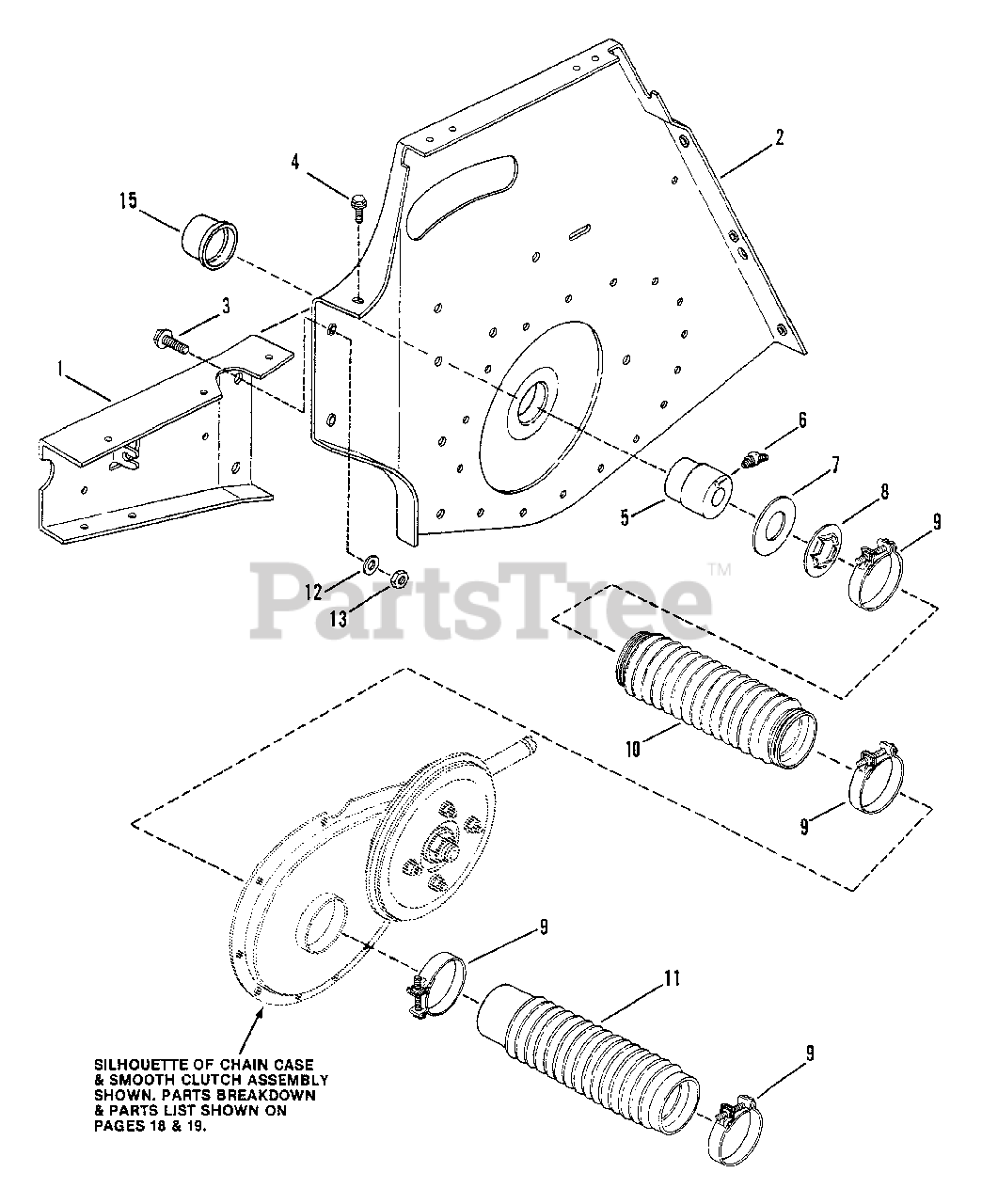

Transmission Support & Components (Part 1) Parts Diagram

  • Title

1

Snapper 7035180

EXTENSION, Transmission support (Right Hand)

$

$

Currently unavailable

2

Snapper 7035144

SUPPORT, Transmission (Right Hand)
(Superseded to 7035144YP)

$58.99

$

Usually ships in 2-12 days

0

3

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

4

Snapper 7090361

SCREW, 5/16-18 x 5/8" self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

5

Snapper 7050918

ASSEMBLY, Axle Bearing
(Superseded to 7050918YP)

Note: Was 51746 (Includes item 6)

$

$

Not available

6

Snapper 7013324

FITTING, Lube
(Superseded to 7013324YP)

$7.99

$

In Stock, Qty 6

0

7

Snapper 7011071

WASHER, Thrust
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7011072

WASHER, Thrust (Hex Drive Tube)
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

9

Snapper 7011037

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

10

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 17083

$10.99

$

In Stock, Qty 20+

0

11

Snapper 7016303

BOOT, Oil Seal

$

$

Not available

12

Snapper 7090122

WASHER, 318 Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

15

Snapper 7014658

CAP, Seal L.H. 3/4"
(Superseded to 7014658YP)

Note: Was 10967 (Now 14658 + 14662 + 12332)

$7.99

$

In Stock, Qty 20+

0

Snapper 7012296

Bearing
(Superseded to 7012296YP)

$14.99

$

In Stock, Qty 6

0
