LT 120D331B (80390) - Snapper 33" Lawn Tractor, 12hp Chain Case & Smooth Clutch Assembly Parts Diagram

33" Lawn Tractor, 12hp

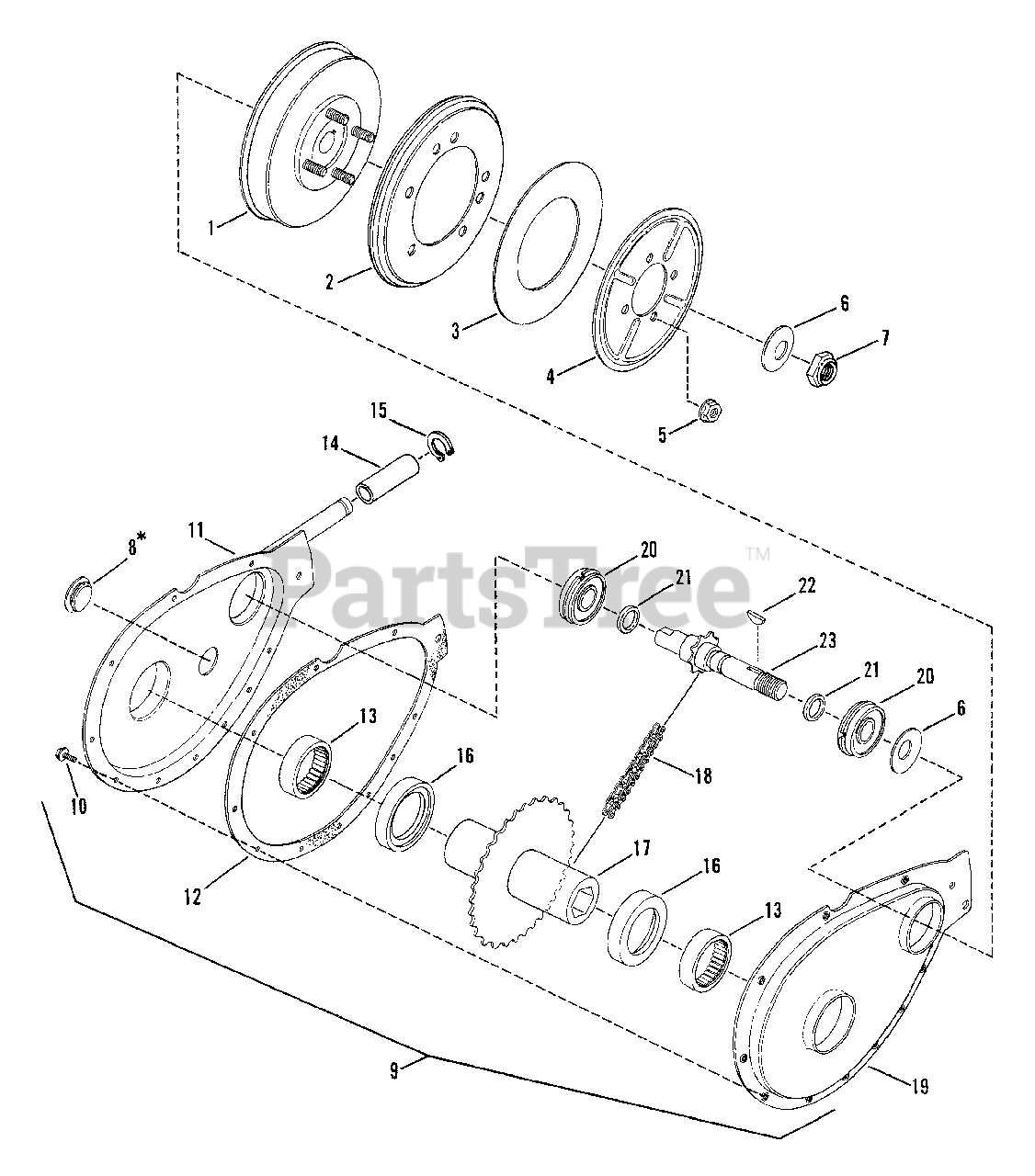

Chain Case & Smooth Clutch Assembly Parts Diagram

  • Title

1

Snapper 7059443

HUB, Driven Disc
(Superseded to 7600142YP)

Note: Was 57338

$42.99

$

In Stock, Qty 20+

0

2

Snapper 7053103

DISC, Driven
(Superseded to 7600135YP)

$42.99

$

In Stock, Qty 20+

0

3

Snapper 7014523

WASHER, Thrust
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

4

Snapper 7032331

PLATE
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7011121

WASHER, Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7091006

NUT, 5/8-18 Hex Lock
(Superseded to 7091006SM)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

Note: Item is not included with Assembly 52683

$2.99

$

In Stock, Qty 20+

0

9

Snapper 7052683

ASSEMBLY, Chain Case
(Superseded to 7052683YP)

Note: (Includes items 10 Thru 23 & 1 ea. item 6)

$530.99

$

In Stock, only 1 left!

0

10

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

11

Snapper 7041136

CASE, Sprocket
(Superseded to 7041136YP)

$86.99

$

In Stock, only 1 left!

0

12

Snapper 7028761

GASKET, Case Cover
(Superseded to 7028761YP)

Note: Was 18059

$24.99

$

In Stock, Qty 20+

0

13

Snapper 7010942

BEARING, Needle
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 20+

0

14

Snapper 7022785

ROLLER
(Superseded to 7022785YP)

$6.49

$

In Stock, only 1 left!

0

15

Snapper 7010776

RING, Retaining
(Superseded to 7010776YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7011086

WASHER, Nylon Thrust
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 14

0

17

Snapper 7040355

ASSEMBLY, Hub & Sprocket
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

18

Snapper 7010941

CHAIN
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

19

Snapper 7039778

COVER, Chain Case
(Superseded to 7039778YP)

$43.99

$

Usually ships in 2-12 days

0

20

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

21

Snapper 7019260

"O" RING
(Superseded to 7019260YP)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7010614

KEY, 1/8 x 5/8" Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7018963

ASSEMBLY, Sprocket & Shaft
(Superseded to 7018963YP)

$96.99

$

In Stock, only 3 left!

0
