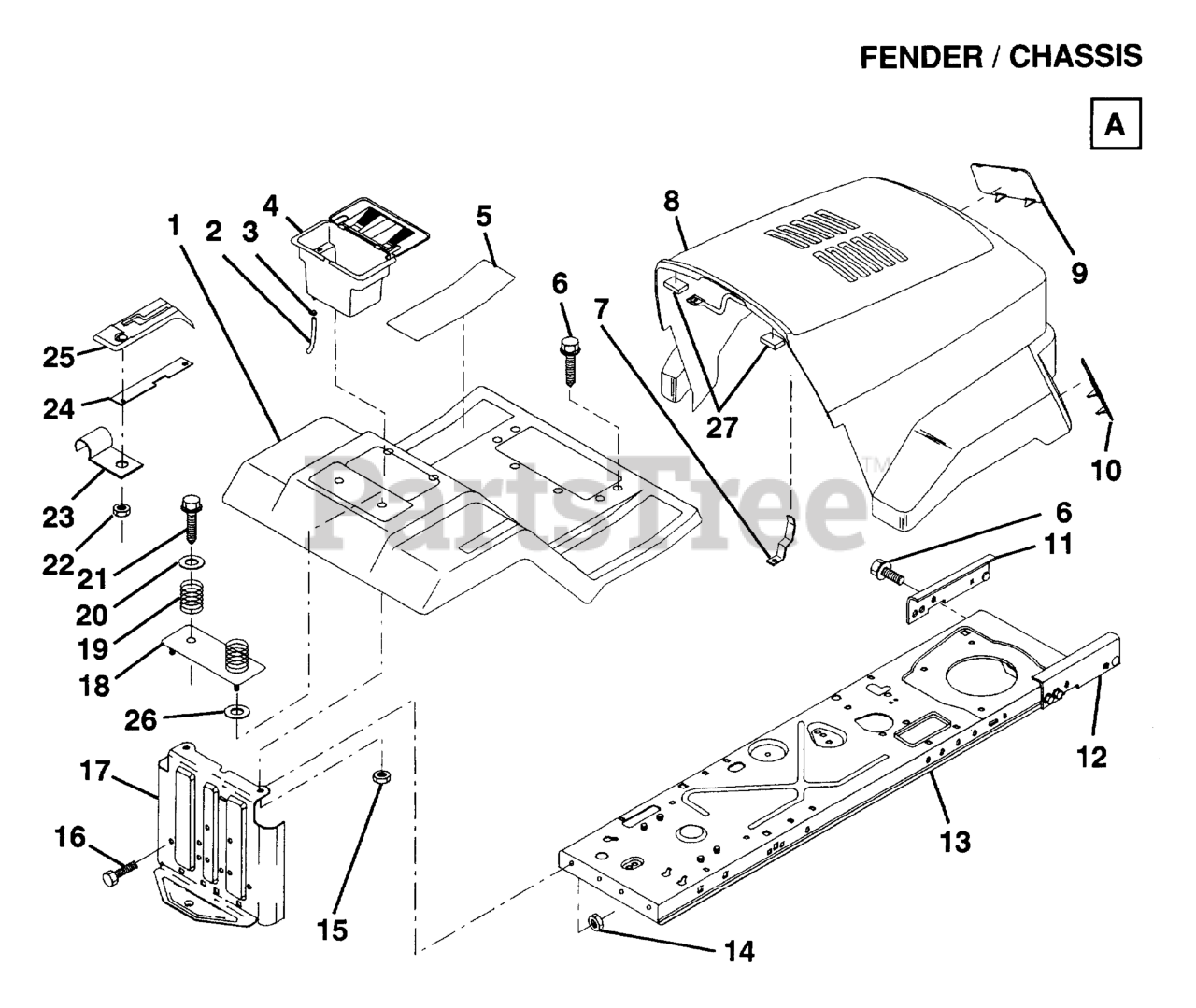

LT 120 - Husqvarna Lawn Tractor (1992-03) CHASSIS & ENCLOSURES 2 Parts Diagram

Lawn Tractor

CHASSIS & ENCLOSURES 2 Parts Diagram

  • Title
23

Husqvarna 532126470

CLIP,INSULATOR

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532128449

BRK PVT FRAME LH

$

$

Not available

$4.99

$

In Stock, only 3 left!

0

$4.99

$

In Stock, only 3 left!

0

4

Husqvarna 532129965

CASE BATTERY
(Superseded to 532404349)

$

$

Not available

20

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532124346

NUT.PUSH.3/16

$7.99

$

In Stock, only 1 left!

0

14

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532131053

HOOD/GRILL ASSEMBLY
(Superseded to 532140145)

$

$

Not available

24

Husqvarna 532124602

BAR SHIP LOCK

Note: LT100

$

$

Not available

15

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

17

$

$

Not available

19

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

3

Husqvarna 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532105687

TUBE, PLASTIC LT
(Superseded to 532109238)

$

$

Not available

25

Husqvarna 532126995

CONSOLE,SHT CONTR

Note: LT120

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532131318

LATCH HOOD
(Superseded to 532139969)

$

$

Not available

13

Husqvarna 532123645

FRAME ASS'Y

$

$

Not available

1

Husqvarna 532125141

FENDER/FOOTREST
(Superseded to 532141393)

$

$

Not available

12

Husqvarna 532128808

BRK PVT FRAME RH

$

$

Not available

- -

Husqvarna 532131319

CVR LIGHT SOCKET

$

$

Not available

10

$

$

Not available

24

Husqvarna 532124307

BAR SHIFT LOCK

Note: LT120

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124144

PAD FOOTREST

$

$

Not available

25

Husqvarna 532126996

CONSOLE SHT CONTR

Note: LT100

$

$

Not available

18

Husqvarna 532125139

NEEDS DESCRIPTION

$

$

Not available

9

Husqvarna 532130986

LENS.LR.LH.HUSQV.

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

27

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

26

Husqvarna 819091413

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0
